Endress+Hauser

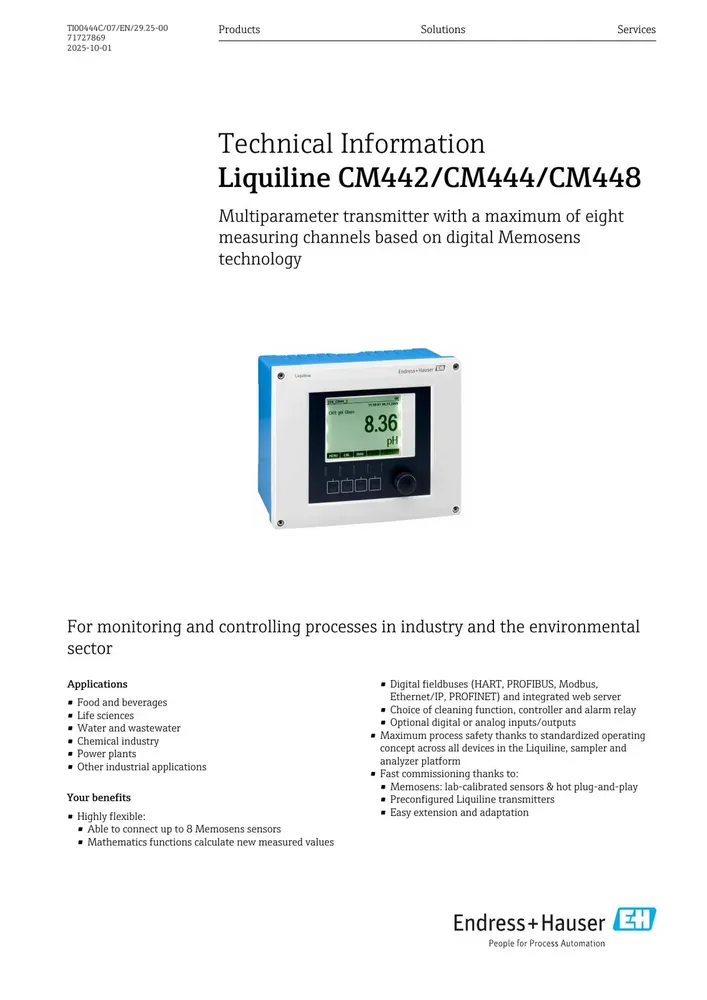

Endress+Hauser Liquiline CM442 Multiparameter Transmitter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Multiparameter transmitter; CM442 base up to 2 Memosens inputs (expandable toward CM444/CM448 family max 8 channels); pH/ORP, conductivity, DO, chlorine, turbidity, etc. per Memosens sensors
Accuracy
Measurement accuracy depends on connected Memosens sensor; TI gives current I/O measurement error tables
Output
Active current outputs (optional HART on output 1); relays; digital fieldbuses HART/PROFIBUS/Modbus/EtherNet/IP/PROFINET; integrated web server
Supply
CM442: 100–230 VAC 50/60 Hz (±15%) max 55 VA; or 24 V AC/DC max 22 W
Housing
Field housing (polycarbonate class) per TI mechanical construction
Protection
IP66/67 (IEC 60529); NEMA Type 4X (UL 50E)
| المعامل | القيمة |
|---|---|
| Measuring range | Multiparameter transmitter; CM442 base up to 2 Memosens inputs (expandable toward CM444/CM448 family max 8 channels); pH/ORP, conductivity, DO, chlorine, turbidity, etc. per Memosens sensors |
| Accuracy | Measurement accuracy depends on connected Memosens sensor; TI gives current I/O measurement error tables |
| Output | Active current outputs (optional HART on output 1); relays; digital fieldbuses HART/PROFIBUS/Modbus/EtherNet/IP/PROFINET; integrated web server |
| Supply | CM442: 100–230 VAC 50/60 Hz (±15%) max 55 VA; or 24 V AC/DC max 22 W |
| Housing | Field housing (polycarbonate class) per TI mechanical construction |
| Protection | IP66/67 (IEC 60529); NEMA Type 4X (UL 50E) |
| Ambient temperature | CM442 generally −20 to 60 °C (−4 to 140 °F); some packages −20 to 50 °C; storage −40 to +80 °C |
| Display | Graphic display with soft keys; menu-guided operation |
| Communication | HART; PROFIBUS DP; Modbus; EtherNet/IP; PROFINET; web server |
| Approvals | CE; UL; CSA |
| Hazardous area | Optional Ex-i Memosens modules (2DS Ex-i) for intrinsically safe sensors — see TI approvals |
| Notes | Transmitter-only — process_connection/wetted blank. Specs from TI00444C EN 29.25-00 (2025). |
