SignalFire Wireless Telemetry

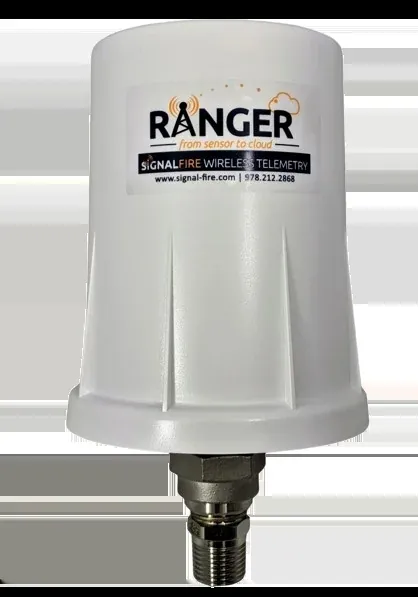

SignalFire Pressure Ranger Wireless Pressure Transmitter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
+/-0.25% BFSL at 77 F (25 C); <= +/-0.5% BFSL above 10,000 psi
Process connection
1/2 in NPTM 316L SS standard; F250C autoclave for >10,000 psi
Type
SignalFire Pressure Ranger LTE-M/NB-IoT cellular pressure transmitter with integrated sensor
Ranges
Standard 0-100 through 0-20,000 psi; low ranges 0-2 and 0-20 psi
Cellular
LTE CAT M1 / NB-IoT; MQTT with Sparkplug B; built-in GPS location
Power
Four D-cell lithium pack, field-replaceable; 5+ year life at 5-minute report interval
| المعامل | القيمة |
|---|---|
| Accuracy | +/-0.25% BFSL at 77 F (25 C); <= +/-0.5% BFSL above 10,000 psi |
| Process connection | 1/2 in NPTM 316L SS standard; F250C autoclave for >10,000 psi |
| Type | SignalFire Pressure Ranger LTE-M/NB-IoT cellular pressure transmitter with integrated sensor |
| Ranges | Standard 0-100 through 0-20,000 psi; low ranges 0-2 and 0-20 psi |
| Cellular | LTE CAT M1 / NB-IoT; MQTT with Sparkplug B; built-in GPS location |
| Power | Four D-cell lithium pack, field-replaceable; 5+ year life at 5-minute report interval |
| Operating | -40 to +176 F (-40 to +80 C); humidity 0-100% condensing; IP67 UV polycarbonate enclosure |
| Safety | Class I Division 2 Groups A-D, T5; CSA C22.2 No. 213 / UL 121201; CE |
| Reporting | Report interval 1 min to 12 h; min/max/avg/instantaneous; exception threshold; sample as fast as 5 s |
| Document | SignalFire Pressure Ranger datasheet PRESSURERANGERDS + Ranger Pressure manual 965-0026 (signal-fire.com) |
