Setra

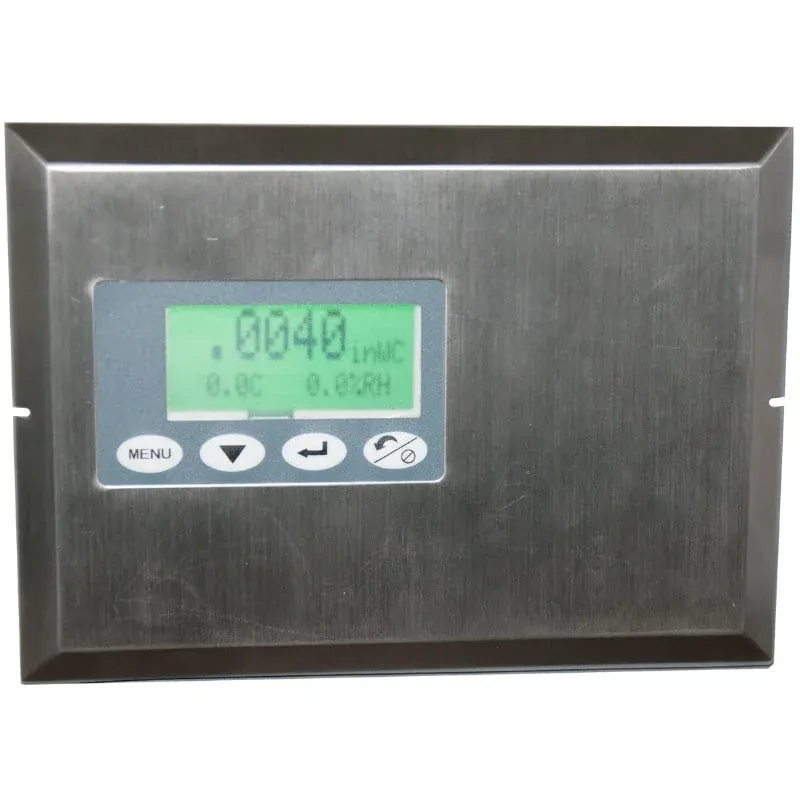

Setra SRIMV Velocity Sensor
Quote on request
No online payment · add lines to RFQ BOM
Setra SRIMV: air velocity sensor; selectable ranges; display/alarms/outputs. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Display
3-color backlit LCD status (green/yellow/red)
Mounting
Wall or duct mount; flush/surface; removable faceplate for calibration
Type
Multi-function non-BACnet velocity / flow / pressure monitor (SRIMV)
Velocity Ranges
2000 / 4000 / 8000 ft/min or 0-10 / 0-20 / 0-40 m/s
Principle
Differential-pressure based velocity/flow with Pitot or averaging probe
Parameters
Velocity, volumetric airflow, differential pressure, temperature, humidity
Fits room and duct air-velocity monitoring where you need a Setra SRIMV—velocity sensor with selectable velocity ranges, multi-parameter indication, display, alarms and analogue/digital outputs per OEM ordering codes.
Key advantages
- Measurand — Air velocity
- Ranges — Selectable velocity ranges per OEM
- Display / alarms — Local indication and alarm options
- Outputs — Per SRIMV configuration
- Platform — Setra SRIMV
Typical applications
- Cleanroom airflow.
- Lab face velocity.
- HVAC velocity monitoring.
Selection guide
- Velocity range
- Output / alarm
- Mount style
Common mistakes
- Wrong range for low velocity.
- Blocked probe.
- Ignoring orientation.
When to RFQ / what to tell us
- Range/output codes.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 43397 |
| Brand | Setra |
| Model | SRIMV Velocity Sensor |
| Product type | Air Velocity Sensor |
| Type | Multi-function non-BACnet velocity / flow / pressure monitor (SRIMV) |
| Velocity ranges | 2000 / 4000 / 8000 ft/min or 0-10 / 0-20 / 0-40 m/s |
| Principle | Differential-pressure based velocity/flow with Pitot or averaging probe |
| Parameters | Velocity, volumetric airflow, differential pressure, temperature, humidity |
| Display | 3-color backlit LCD status (green/yellow/red) |
| Outputs | 4-20 mA, 0-5 VDC, 0-10 VDC field selectable |
| Alarms | Audible/visual alarms for velocity, flow, pressure, temp, RH and door input |
| Power | 18-30 VDC or 24 VAC +/-10%; about 4 W max at 24 VDC |
Documents
FAQ
Q: Platform? A: Setra SRIMV.
Q: What does it measure? A: Air velocity (with related parameters per config).
Q: What should I send for a quote? A: Range/output, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Display | 3-color backlit LCD status (green/yellow/red) |
| Mounting | Wall or duct mount; flush/surface; removable faceplate for calibration |
| Type | Multi-function non-BACnet velocity / flow / pressure monitor (SRIMV) |
| Velocity Ranges | 2000 / 4000 / 8000 ft/min or 0-10 / 0-20 / 0-40 m/s |
| Principle | Differential-pressure based velocity/flow with Pitot or averaging probe |
| Parameters | Velocity, volumetric airflow, differential pressure, temperature, humidity |
| Outputs | 4-20 mA, 0-5 VDC, 0-10 VDC field selectable |
| Alarms | Audible/visual alarms for velocity, flow, pressure, temp, RH and door input |
| Power | 18-30 VDC or 24 VAC +/-10%; about 4 W max at 24 VDC |
| Document | Setra Model SRIMV Spec Sheet |
