Reliability Concepts B.A.T.: dual cross-firing green laser belt/sheave alignment. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy class
About 0.020 in at 8 ft (OEM/dealer published class)
Mounting
Magnetic mounting for pulleys 2 in and up; dual-polarity GlowLine targets
Type
Dual cross-firing green laser belt / sheave alignment tool (B.A.T.)
Applications
V-belts, timing belts, flat belts, chains, sheaves; motor base / flatness checks
Kit Contents
2 XF laser transmitter modules; 3 GlowLine magnetic targets; batteries; manual; carrying case
Laser
Green line laser Class IIIa / 3R; about <5.0 mW at 532 nm class

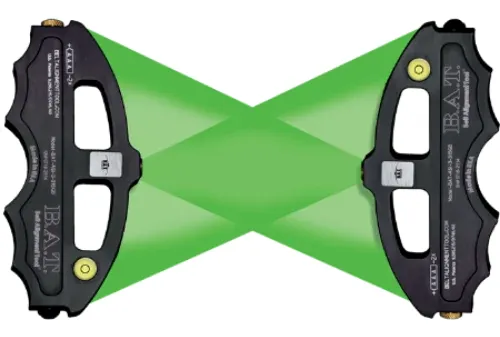

Fits belt and sheave alignment where you need a Reliability Concepts B.A.T. Dual cross-firing green laser tool for V-belts, timing belts, flat belts, chains and sheaves, plus motor-base/flatness checks, kit with two XF laser transmitters, three GlowLine magnetic targets, batteries, manual and case, magnetic mounting for pulleys 2 in and up, accuracy class about 0.020 in at 8 ft.
Key advantages
- Lasers — Dual cross-firing green XF
- Targets — GlowLine magnetic (3)
- Mount — Magnetic; pulleys 2 in+
- Uses — Belts / sheaves / chains / flatness
- Accuracy class — ~0.020 in at 8 ft
Typical applications
- Belt/sheave alignment.
- Motor base checks.
- Maintenance laser kits.
Selection guide
- Kit contents
- Sheave sizes
- Spare targets
Common mistakes
- Dirty sheave face.
- Ignoring target polarity.
- Working beyond published distance class.
When to RFQ / what to tell us
- Kit/options.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 49042 |
| Brand | Reliability Concepts |
| Model | B.A.T. Belt Alignment Tool |
| Product type | Belt Alignment Tool |
| Type | Dual cross-firing green laser belt / sheave alignment tool (B.A.T.) |
| Applications | V-belts, timing belts, flat belts, chains, sheaves; motor base / flatness checks |
| Kit contents | 2 XF laser transmitter modules; 3 GlowLine magnetic targets; batteries; manual; carrying case |
| Mounting | Magnetic mounting for pulleys 2 in and up; dual-polarity GlowLine targets |
| Accuracy class | About 0.020 in at 8 ft (OEM/dealer published class) |
Documents
FAQ
Q: Lasers? A: Dual cross-firing green.
Q: Pulley size? A: Magnetic mount 2 in and up.
Q: What should I send for a quote? A: Kit/options, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy class | About 0.020 in at 8 ft (OEM/dealer published class) |
| Mounting | Magnetic mounting for pulleys 2 in and up; dual-polarity GlowLine targets |
| Type | Dual cross-firing green laser belt / sheave alignment tool (B.A.T.) |
| Applications | V-belts, timing belts, flat belts, chains, sheaves; motor base / flatness checks |
| Kit Contents | 2 XF laser transmitter modules; 3 GlowLine magnetic targets; batteries; manual; carrying case |
| Laser | Green line laser Class IIIa / 3R; about <5.0 mW at 532 nm class |
| Operating Range | Under about 75 ft class; beam angle class 70 in at 3 ft / 162 in at 8 ft |
| Construction | 6061 flat black anodized aluminum; IP64/IP67 class per published sheets |
| Warranty | 5-year warranty; Made in USA |
| Document | Reliability Concepts B.A.T. Belt Alignment Tool brochure (BAT BROCHURE FULL 2-10-2026) |
