VEGA

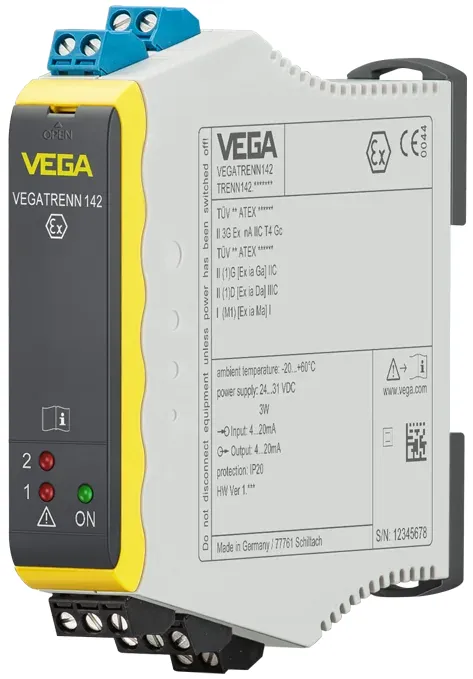

VEGA VEGATRENN 142 Double Channel Separator
Quote on request
No online payment · add lines to RFQ BOM
VEGA VEGATRENN 142: dual-channel active Ex separator; 2× 4–20 mA/HART. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Supply
DC 24…31 V (−15%/+10%)
Ambient temperature
−20…+60 °C (−4…+140 °F)
Mounting
DIN rail 35×7.5 mm per EN 50022/60715
Channels
Double channel active Ex separator
Sensor Input
2 × 4…20 mA/HART (up to 5× HART multidrop per channel)
Input Type
Active (sensor powered by VEGATRENN 142)
Fits dual-channel Ex signal separation where you need a VEGA VEGATRENN 142. Active double-channel separator powering two 4…20 mA/HART sensor loops (up to 5× HART multidrop per channel), terminal voltage 21…16.5 V DC at 4…20 mA with 24 V DC off-load, and two active 4…20 mA/HART outputs with off-load under 15.5 V DC.
Key advantages
- Channels — Dual active Ex separator
- Inputs — 2× 4…20 mA/HART
- Multidrop — To 5× HART per channel
- Terminal V — 21…16.5 V @ 4…20 mA
- Outputs — 2× active 4…20 mA/HART
Typical applications
- Dual Ex transmitter panels.
- Paired HART loops.
- Compact dual separators.
Selection guide
- Approvals
- Per-channel multidrop
- Supply sizing
Common mistakes
- Treating as passive.
- Overloading one channel.
- Ignoring dual supply budget.
When to RFQ / what to tell us
- Approvals/options.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 582276 |
| Brand | VEGA |
| Model | VEGATRENN 142 |
| Product type | Signal Separator |
| Channels | Double channel active Ex separator |
| Sensor input | 2 × 4…20 mA/HART (up to 5× HART multidrop per channel) |
| Input type | Active (sensor powered by VEGATRENN 142) |
| Terminal voltage | 21…16.5 V DC at 4…20 mA; off-load 24 V DC (±1 V) |
| Output | 2 × active 4…20 mA/HART; off-load <15.5 V DC |
Documents
FAQ
Q: Channels? A: Double (two).
Q: Per channel multidrop? A: Up to 5× HART.
Q: What should I send for a quote? A: Approvals/options, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Supply | DC 24…31 V (−15%/+10%) |
| Ambient temperature | −20…+60 °C (−4…+140 °F) |
| Mounting | DIN rail 35×7.5 mm per EN 50022/60715 |
| Channels | Double channel active Ex separator |
| Sensor Input | 2 × 4…20 mA/HART (up to 5× HART multidrop per channel) |
| Input Type | Active (sensor powered by VEGATRENN 142) |
| Terminal Voltage | 21…16.5 V DC at 4…20 mA; off-load 24 V DC (±1 V) |
| Power Consumption | Max 5 W |
| Protection Rating | IP20; Protection class II; Pollution degree 2 |
| Hart | Bidirectional HART via front sockets or terminals |
| Sil | SIL2 qualification |
