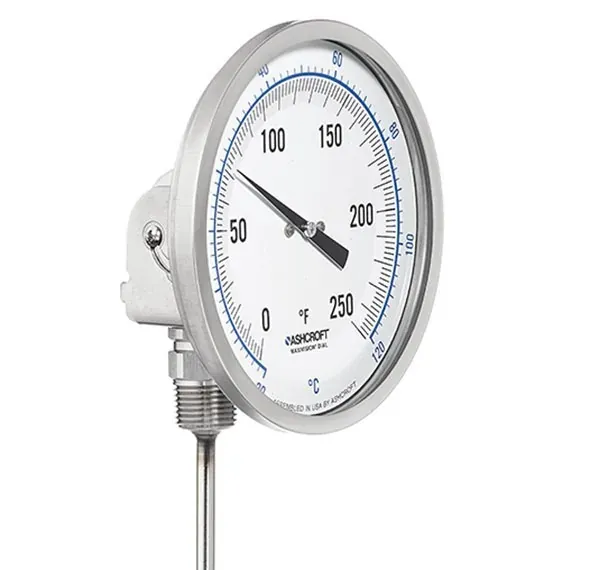

Ashcroft EI Series Bimetal Thermometer

Fits local mechanical temperature indication on process lines where you need a hermetically sealed 304/316 SS bimetal thermometer, Everyangle or fixed mount, and no electrical output.

Key advantages

Hermetic SS bimetal — 304 or 316 SS case and stem, no electrical output.
±1% span Grade A — ASME B40.200 (B40.3 Grade A).
Continuous to 800 °F — Continuous service to 800 °F (425 °C); intermittent to 1000 °F (500 °C).
2 / 3 / 5″ dials — Maxivision dials; Everyangle on 3″/5″.
NEMA 4X / IP66 — Hermetically sealed head for washdown duty.

Typical applications

Local temperature indication on process piping and vessels.
Sites that want a mechanical backup with no loop power.
Everyangle or rear-mount installs with thermowells above 15 psi.

Selection guide

Measuring range — Standard dial ranges through family tables; continuous to 800 °F (425 °C); intermittent to 1000 °F (500 °C).
Sensor — Bimetal coil; silicone-dampened coil option improves response time.
Accuracy — ±1% of span ASME B40.200 (B40.3 Grade A).
Dial / head — Maxivision dial 2″ / 3″ / 5″. Head: 2″ rear; 3″/5″ Everyangle / lower / rear. External adjustment.
Stem — Diameter 0.250″ or 0.375″; length 2½″…60″.
Process connection — Plain, pointed stem, ½ NPT, ½ NPT Union, ½ NPT Adjustable Union (2″ uses ¼ NPT fixed).
Case / stem — 304 SS or 316 SS (hermetically sealed).
IP / ambient — NEMA 4X / IP66; ambient −40…+200 °F (−40…+93 °C).
Mounting — Direct stem mount; thermowell recommended >15 psi.

Common mistakes

Specifying continuous service above 800 °F — intermittent limit is 1000 °F; continuous stops at 800 °F.
Ordering a 2″ dial with Everyangle expectation — Everyangle is on 3″/5″; 2″ is rear mount with ¼ NPT fixed.
Skipping a thermowell above 15 psi.
Undersizing stem immersion so the bimetal coil sits in a dead zone.
Expecting an electrical output or transmitter — mechanical dial only.

When to RFQ / what to tell us

Dial size, mount (Everyangle/rear/lower), stem diameter/length, and dial range.
304 vs 316 SS, process connection, thermowell yes/no.
Quantity, ship-to; silicone-dampened coil yes/no.

Request a Quote · Get selection help

Specs

Spec	Value
SKU	39222
Brand	Ashcroft
Model	EI Series
Product type	gauge
Sensor type	Bimetal coil
Measuring range	Standard dial ranges through family tables; continuous service to 800 °F (425 °C); intermittent to 1000 °F (500 °C)
Accuracy	±1% of span ASME B40.200 (B40.3 Grade A)
Output signal	Mechanical dial indication (no electrical output)
Process connection	Plain, pointed stem, ½ NPT, ½ NPT Union, ½ NPT Adjustable Union (2″ uses ¼ NPT fixed)
Stem diameter	0.250″ or 0.375″
Stem length	2½″ to 60″
Sheath material	304 SS or 316 SS case & stem (hermetically sealed)
Housing material	304 SS / 316 SS hermetically sealed case
IP rating	NEMA 4X / IP66
Response time	Improved with silicone-dampened coil option
Ambient temperature	−40…+200 °F (−40…+93 °C)
Head type	2″ rear; 3″/5″ Everyangle / lower / rear
Display	Maxivision dial 2″/3″/5″
Approvals	RoHS
Mounting	Direct stem mount; thermowell recommended >15 psi
Notes	Ashcroft EIbimetaldsRevH03-03-25. External adjustment; Everyangle on 3″/5″.

Documents

FAQ

Q: Continuous vs intermittent temperature limit? A: Continuous service to 800 °F (425 °C); intermittent to 1000 °F (500 °C). Size the dial range for continuous duty.

Q: Does EI Series have Everyangle on all dials? A: Everyangle is on 3″ and 5″. The 2″ dial is rear mount with ¼ NPT fixed connection.

Q: When do I need a thermowell? A: Datasheet recommends a thermowell for process pressure above 15 psi. State pressure and media in the RFQ.

Q: What should I send for a quote? A: Dial range, dial size/mount, stem diameter and length, connection, 304 vs 316, dampening, thermowell, quantity. Compatible with systems using Ashcroft EI Series if you need a drop-in check — we do not claim authorized-dealer status.
