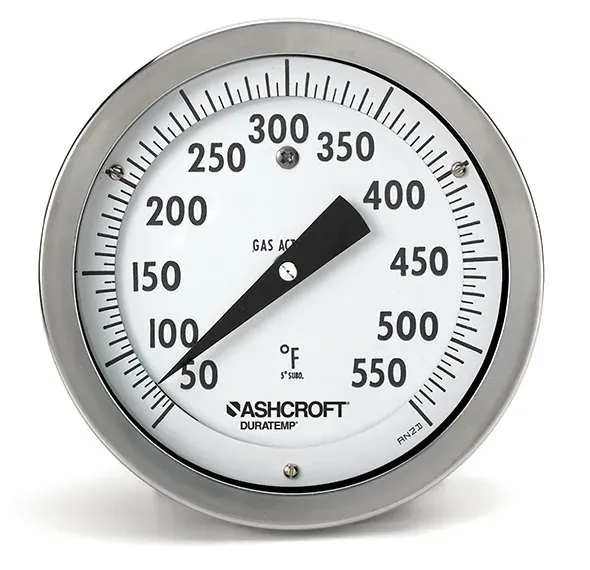

Ashcroft C-600A-01 Duratemp Thermometer

Fits remote mechanical temperature indication where the dial must sit away from the process — gas-actuated Duratemp bulb/capillary, 4½″ Maxivision dial, no electrical output.

Key advantages

Remote gas-actuated — Duratemp molecular-sieve bulb/capillary so the dial can sit away from the process.
Wide range codes — −320 °F/200 °F to 400 °F/1200 °F (−200 °C/100 °C to 200 °C/650 °C) by code; over-range 125% of span.
±1% of span — Accuracy per ASME B40.3 on the 4½″ Maxivision anti-parallax dial.
Capillary 5…80 ft — Bendable extensions 12″/18″/24″; 316 SS bulb/capillary; 304 SS C-600A-01 case.

Typical applications

Remote dial indication on tanks, pipes, and equipment where the viewing location is away from the bulb.
Mechanical temperature indication without electrical output (no 4–20 mA).
Duties needing thermowell-mounted ⅜″×3″ bulbs with ½ NPT union or plain bulb options.

Selection guide

Measuring range — −320 °F/200 °F to 400 °F/1200 °F (−200 °C/100 °C to 200 °C/650 °C) by range code. Over-range 125% of span.
Sensor — Gas-actuated molecular sieve (Duratemp remote bulb/capillary).
Accuracy — ±1% of span (ASME B40.3).
Output — Mechanical dial indication only (no electrical output).
Dial / case — 4½″ Maxivision anti-parallax dial; black pointer; optional red set hand. 304 SS case with 304 SS bayonet ring (C-600A-01). Surface/lower or flush/rear mounting.
Bulb / capillary — Bulb ⅜″ O.D. × 3″ long; bendable extensions 12″/18″/24″; capillary 5…80 ft. Min recommended insertion ~4″ liquids / 6″ gases for standard ⅜″×3″ bulb.
Process connection — ½ NPT union on bendable/armor styles; plain bulb options.
Materials — Bulb/bendable ext. 316 SS; capillary 316 SS; connection 303 SS; armor AISI 302 spring (options).
Ambient — Dry case ambient −13…+160 °F (−25…+71 °C).
Mounting — Remote mount surface/lower or flush/rear; thermowell recommended.
Notes — Distinct from other 600A case variants (02/03/04). IP/NEMA and approvals not published for this model; confirm on RFQ if required.

Common mistakes

Ordering a direct-stem bimetal (e.g. EI Series) when the dial must be remote — Duratemp is gas-actuated bulb/capillary for remote mount.
Undersizing capillary (5…80 ft) or bendable extension (12″/18″/24″) so the dial cannot reach the viewing location.
Ignoring min insertion (~4″ liquids / 6″ gases for standard ⅜″×3″ bulb) and sitting the bulb in a dead zone.
Confusing C-600A-01 with case variants 02/03/04 — case/ring construction differs; this page is C-600A-01 only.
Expecting a published IP/NEMA or approvals list — those fields are blank on this page; ask if the site needs a stated ingress or mark.

When to RFQ / what to tell us

Dial range (°F or °C) and over-range expectation (125% of span).
Capillary length (5…80 ft), bendable extension (12″/18″/24″ or none), armor yes/no.
Bulb style (plain vs ½ NPT union) and thermowell yes/no; media (liquid vs gas) for insertion length.
Case mount: surface/lower or flush/rear; optional red set hand.
Ambient, quantity, ship-to country.

Request a Quote · Get selection help

Specs

Spec	Value
SKU	46500
Brand	Ashcroft
Model	C-600A-01 Duratemp
Product type	gauge
Sensor type	Gas-actuated molecular sieve (Duratemp remote bulb/capillary)
Measuring range	−320 °F/200 °F to 400 °F/1200 °F (−200 °C/100 °C to 200 °C/650 °C) by range code
Accuracy	±1% of span (ASME B40.3)
Output signal	Mechanical dial indication (no electrical output)
Process connection	½ NPT union on bendable/armor styles; plain bulb options; surface/lower or flush/rear case mounting
Stem diameter	Bulb ⅜″ O.D.
Stem length	Bulb 3″ long; bendable extensions 12″/18″/24″; capillary 5…80 ft
Immersion length	Min recommended insertion ~4″ liquids / 6″ gases for standard ⅜″×3″ bulb
Sheath material	Bulb/bendable ext. 316 SS; capillary 316 SS; connection 303 SS; armor AISI 302 spring (options)
Housing material	304 SS case with 304 SS bayonet ring (C-600A-01)
Ambient temperature	Dry case ambient −13…+160 °F (−25…+71 °C)
Head type	4½″ Maxivision dial; surface/lower or flush/rear
Display	Maxivision anti-parallax dial; black pointer; optional red set hand
Mounting	Remote mount surface/lower or flush/rear; thermowell recommended
Notes	Over-range 125% of span. IP/NEMA and approvals not published for this model; confirm on RFQ if required.

Documents

FAQ

Q: How is Duratemp different from EI Series bimetal? A: EI Series is direct-stem bimetal. C-600A-01 Duratemp is gas-actuated with remote bulb and capillary (5…80 ft) so the 4½″ dial can sit away from the process.

Q: What capillary length can I order? A: Capillary 5…80 ft; bendable extensions 12″/18″/24″ optional. State viewing distance and routing in the RFQ.

Q: Are IP/NEMA or approvals listed? A: Not published on this page. If the site needs a stated ingress rating or mark, call that out in the RFQ so we can confirm against current OEM docs.

Q: What should I send for a quote? A: Range, capillary/extension, bulb connection, mount style, set hand, thermowell, media, quantity. Compatible with systems using Ashcroft C-600A-01 Duratemp if you need a drop-in check — we do not claim authorized-dealer status.
