WIKA

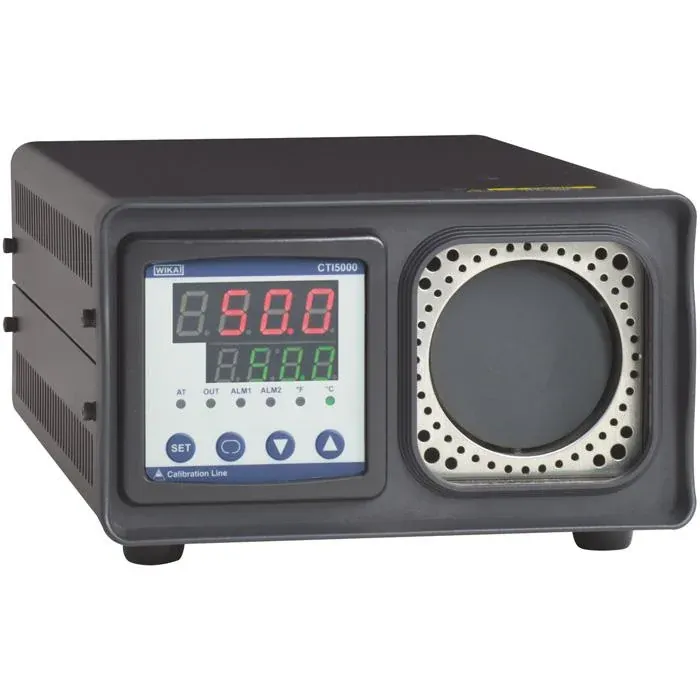

WIKA CTI5000 Infrared Calibrator
Quote on request
No online payment · add lines to RFQ BOM
WIKA CTI5000: IR blackbody 50…500 °C; ±0.1–0.4 K stability; ε=0.95. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Type
WIKA CTI5000 portable infrared calibrator / blackbody source (data sheet CT 41.42)
Temperature Range
50...500 C (122...932 F)
Stability
+/-0.1 K to 100 C; +/-0.2 K to 350 C; +/-0.4 K to 500 C
Resolution
0.1 K
Emissivity
Fixed 0.95
Measuring Surface
Blackbody diameter 57 mm (2.24 in); reference probe bore for 3 mm probes, 68 mm immersion
Fits portable IR thermometer calibration where you need a WIKA CTI5000—blackbody infrared calibrator spanning 50…500 °C with stability from ±0.1 K to ±0.4 K by temperature, fixed emissivity 0.95, and a 57 mm blackbody surface.
Key advantages
- Range — 50…500 °C (122…932 °F)
- Stability — ±0.1 K to 100 °C; ±0.2 K to 350 °C; ±0.4 K to 500 °C
- Emissivity — Fixed 0.95
- Surface — Blackbody diameter 57 mm
- Portable — About 2.1 kg
Typical applications
- IR thermometer cal.
- Pyrometer checks.
- Field blackbody reference.
Selection guide
- Target size vs FOV
- Power 230 V
- Reference probe bore use
Common mistakes
- Wrong distance/FOV.
- Skipping stabilize time.
- Touching hot surface.
When to RFQ / what to tell us
- Quantity.
- Ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 44304 |
| Brand | WIKA |
| Model | CTI5000 Infrared Calibrator |
| Product type | Infrared Calibrator |
| Type | WIKA CTI5000 portable infrared calibrator / blackbody source (data sheet CT 41.42) |
| Temperature range | 50...500 C (122...932 F) |
| Stability | +/-0.1 K to 100 C; +/-0.2 K to 350 C; +/-0.4 K to 500 C |
| Resolution | 0.1 K |
| Emissivity | Fixed 0.95 |
| Measuring surface | Blackbody diameter 57 mm (2.24 in); reference probe bore for 3 mm probes, 68 mm immersion |
| Heating/cooling | Heat about 30 min ambient to 500 C; cool about 40 min 500 to 100 C; stabilize about 15-20 min |
| Power | AC 230 V 50/60 Hz; about 275 VA |
Documents
FAQ
Q: Range? A: 50…500 °C.
Q: Emissivity? A: Fixed 0.95.
Q: What should I send for a quote? A: Quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Type | WIKA CTI5000 portable infrared calibrator / blackbody source (data sheet CT 41.42) |
| Temperature Range | 50...500 C (122...932 F) |
| Stability | +/-0.1 K to 100 C; +/-0.2 K to 350 C; +/-0.4 K to 500 C |
| Resolution | 0.1 K |
| Emissivity | Fixed 0.95 |
| Measuring Surface | Blackbody diameter 57 mm (2.24 in); reference probe bore for 3 mm probes, 68 mm immersion |
| Heating Cooling | Heat about 30 min ambient to 500 C; cool about 40 min 500 to 100 C; stabilize about 15-20 min |
| Power | AC 230 V 50/60 Hz; about 275 VA |
| Dimensions Weight | About 190 x 248 x 113 mm; 2.1 kg (4.6 lb) |
| Document | WIKA data sheet CT 41.42 Infrared calibrator model CTI5000 (wika.com) |
