Watlow

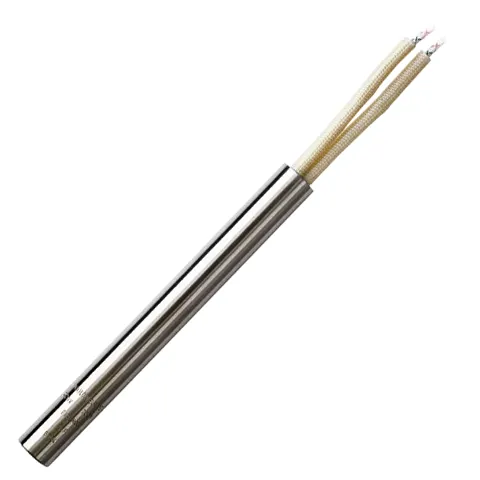

Watlow FIREROD Cartridge Heater
Quote on request
No online payment · add lines to RFQ BOM
Swaged FIREROD cartridge; to ~1400 °F; 1/8–1 in OD. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Product Family
FIREROD swaged cartridge heaters for insertion heating
Diameters
Standard imperial diameters from 1/8 in through 1 in and metric equivalents (per diameter-specific sheets)
Sheath Temperature
Up to approximately 1400 °F (760 °C) depending on sheath material and watt density
Sheath Materials
Incoloy / stainless steel options typical for FIREROD
Watt Density
High watt density swaged construction for compact high-power heating
Voltage
Common ratings 120/240/480 VAC; other voltages configurable
Fits high-watt-density insertion heating where you need a Watlow FIREROD swaged cartridge with precision OD, sheath options to about 1400 °F (760 °C), and configurable leads.
Key advantages
- Family — FIREROD swaged cartridge heaters for insertion heating
- Diameters — Standard imperial 1/8 in through 1 in and metric equivalents
- Temperature — Sheath up to ~1400 °F (760 °C) depending on material/watt density
- Construction — Swaged MgO; Incoloy/SS sheath options
- Options — Distributed wattage, dual voltage, thermocouple-in-heater, special seals
Typical applications
- Plastics, packaging, and food equipment.
- Dies, platens, and medical devices.
- Tight-bore insertion with SELECT Visual Designer configs.
Selection guide
- OD / length — Bore diameter and heated length
- V / W — Match watt density to material
- Leads / seals — Crimped, swaged, moisture-resistant
- TC — Thermocouple-in-heater yes/no
Common mistakes
- Loose bore fit causing hot spots.
- Oversizing watt density for low-conductivity materials.
- Ignoring lead temperature rating.
When to RFQ / what to tell us
- OD, length, V/W, lead style.
- Sheath; TC; quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 21123 |
| Brand | Watlow |
| Model | FIREROD Cartridge Heater |
| Product type | Cartridge Heater |
| Product family | FIREROD swaged cartridge heaters for insertion heating |
| Diameters | Standard imperial diameters from 1/8 in through 1 in and metric equivalents (per diameter-specific sheets) |
| Sheath temperature | Up to approximately 1400 °F (760 °C) depending on sheath material and watt density |
| Sheath materials | Incoloy / stainless steel options typical for FIREROD |
| Watt density | High watt density swaged construction for compact high-power heating |
| Voltage | Common ratings 120/240/480 VAC; other voltages configurable |
| Leads | Multiple lead types, lengths, and seals (crimped, swaged, moisture-resistant) |
| Fit | Precision diameter tolerances for tight bore insertion; optional flanges and fittings |
| Applications | Plastics, packaging, food equipment, dies, platens, medical devices |
| Options | Distributed wattage, dual voltage, thermocouple-in-heater, special seals |
| Form factor | Cylindrical cartridge insertion heater |
| Features | Swaged construction for durability and heat transfer; SELECT Visual Designer configuration |
Documents
- Watlow FIREROD documentation — request current OEM PDF on RFQ — request current OEM PDF on RFQ
FAQ
Q: Diameter range? A: Typically 1/8 in through 1 in plus metric equivalents.
Q: Max sheath temperature? A: About 1400 °F (760 °C) depending on material and watt density.
Q: What should I send for a quote? A: OD/L/V/W/leads, quantity, ship-to.
