WIKA

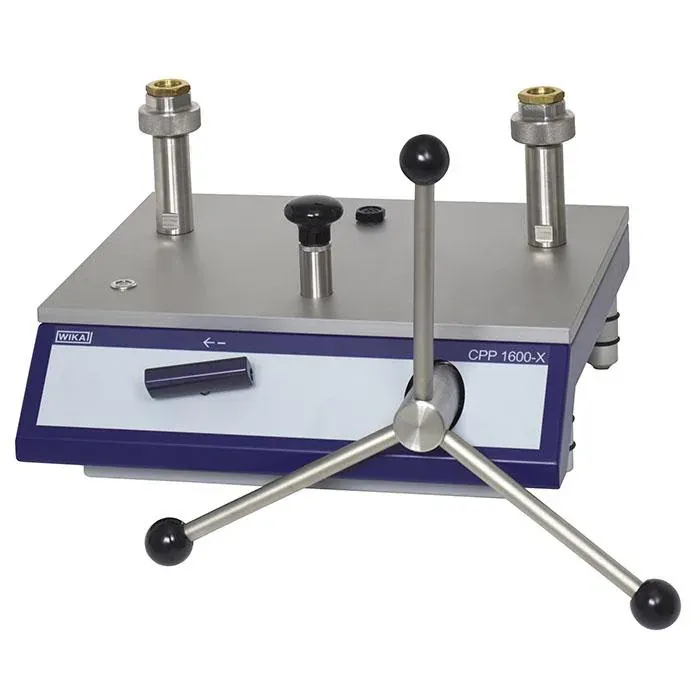

WIKA CPP1600-X Hydraulic Comparison Test Pump
Quote on request
No online payment · add lines to RFQ BOM
WIKA CPP1600: 0…1600 bar hydraulic comparison pump; 250 cm³ reservoir. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Pressure Range
0 … 1600 bar [0 … 23200 psi]
Pressure Medium
Clean water (calcium-carbonate free) or mineral-oil hydraulic fluids (others on request)
Fluid Reservoir
250 cm³
Displacement Per Revolution
Approx. 0.1 cm³
Overall Displacement
Approx. 3.9 cm³
Piston Diameter
8 mm (0.3 in)
Fits high-pressure comparison calibration where you need a WIKA CPP1600-X—hydraulic comparison test pump spanning 0…1600 bar (0…23200 psi) with about 250 cm³ reservoir, precision spindle, dual M28×1.5 quick-release test connections, and FKM seals for clean water or mineral-oil media.
Key advantages
- Range — 0…1600 bar (0…23200 psi)
- Reservoir — About 250 cm³
- Connections — 2× M28×1.5 quick-release (G½ inserts standard)
- Media — Clean water or mineral-oil hydraulic fluids
- Build — Brass cylinder; stainless piston; ~20 kg base unit
Typical applications
- Gauge comparison cal.
- High-pressure lab stands.
- Workshop hydraulic references.
Selection guide
- Media (water vs oil)
- Insert threads
- Reference gauge
Common mistakes
- Dirty/hard water.
- Over-torquing connections.
- Missing bleed procedure.
When to RFQ / what to tell us
- Inserts/media.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 43197 |
| Brand | WIKA |
| Model | CPP1600 Hydraulic Pressure Pump |
| Product type | Hydraulic Comparison Test Pump |
| Pressure range | 0 … 1600 bar [0 … 23200 psi] |
| Pressure medium | Clean water (calcium-carbonate free) or mineral-oil hydraulic fluids (others on request) |
| Fluid reservoir | 250 cm³ |
| Displacement per revolution | Approx. 0.1 cm³ |
| Piston diameter | 8 mm (0.3 in) |
| Materials | Brass cylinder; stainless steel piston; 1.4404 SS piping 6×2 mm; aluminium rear flange |
| Test connections | 2× quick-release M28×1.5 female with changeable inserts (standard G½ female) |
| Weight | 20 kg [44.1 lb] |
Documents
FAQ
Q: Max pressure? A: 1600 bar (23200 psi).
Q: Reservoir? A: About 250 cm³.
Q: What should I send for a quote? A: Inserts/media, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Pressure Range | 0 … 1600 bar [0 … 23200 psi] |
| Pressure Medium | Clean water (calcium-carbonate free) or mineral-oil hydraulic fluids (others on request) |
| Fluid Reservoir | 250 cm³ |
| Displacement Per Revolution | Approx. 0.1 cm³ |
| Overall Displacement | Approx. 3.9 cm³ |
| Piston Diameter | 8 mm (0.3 in) |
| Materials | Brass cylinder; stainless steel piston; 1.4404 SS piping 6×2 mm; aluminium rear flange |
| Test Connections | 2× quick-release M28×1.5 female with changeable inserts (standard G½ female) |
| Connection Spacing | 300 mm [11.8 in] |
| Seal | FKM |
| Base Mounting | Stable stationary instrument base |
| Weight | 20 kg [44.1 lb] |
| Features | Internally operating precision spindle; removable star handle; freely rotating test connections; integrated priming pump |
| Datasheet | WIKA CT 91.12 |
