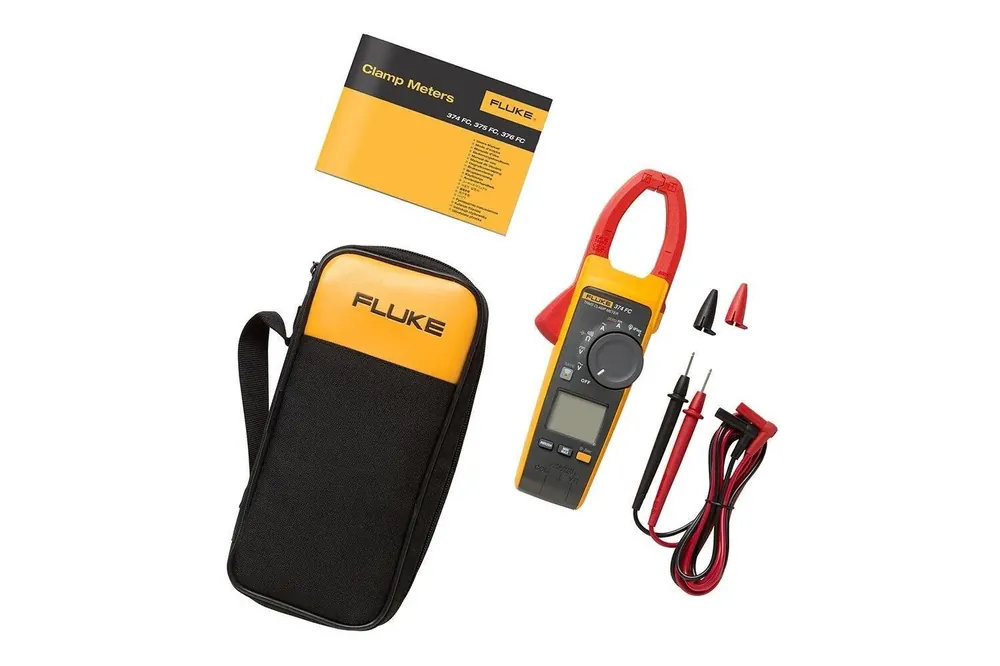

Fluke 374 FC True-RMS Clamp Meter

Fits everyday True-RMS clamp work on feeders and motors where jaw AC/DC to 600.0 A is enough, with optional iFlex AC to 2500 A, voltage to 1000 V, resistance to 6000 Ω, and Fluke Connect logging — part of the 370 FC series with soft case and TL75 leads included per notes.

Key advantages

True-RMS clamp — AC/DC current to 600.0 A via jaw; optional iFlex AC to 2500 A.
Voltage and more — AC/DC voltage to 1000 V plus resistance and capacitance on banana jacks.
Fluke Connect — wireless logging/reporting for field records (no analog output).
Published accuracy bands — jaw AC 2% ±5 digits (10–100 Hz); DC current 2% ±5 digits.

Typical applications

Electrical maintenance current and voltage checks on industrial panels.
Jobs needing iFlex flexible probe reach for large conductors.
Teams logging clamp readings via Fluke Connect.

Selection guide

Measuring range — AC/DC current via jaw 600.0 A; AC via optional iFlex to 2500 A; AC/DC voltage to 1000 V; resistance to 6000 Ω; capacitance to 1000 µF.
Accuracy — AC current jaw 2% ±5 digits (10–100 Hz), 2.5% ±5 digits (100–500 Hz); DC current 2% ±5 digits; iFlex AC 3% ±5 digits (5–500 Hz).
Output — Fluke Connect wireless logging/reporting (no analog output).
Supply — 2× AA alkaline.
Ambient — per OEM users manual operating range for 370 FC series.
Connection — Fixed jaw clamp; banana jacks for V/Ω/capacitance; optional iFlex flexible current probe.
Display — Backlit digital display; Min/Max/Avg and inrush recording.
Communication — Fluke Connect (Bluetooth).
Approvals — CAT III 1000 V, CAT IV 600 V, True-RMS.
Mounting — Handheld clamp meter; optional TPAK magnetic hanger.

Common mistakes

Expecting frequency or mV DC ranges listed on 375/376 FC — 374 FC JSON lists resistance to 6000 Ω and capacitance to 1000 µF without a frequency clause; lock features you need against the 370 FC family sheet.
Assuming iFlex is included — listed as optional flexible current probe.
Confusing this SKU with sibling 42408 (also labeled 374 FC in catalog) — quote by SKU 42412 and confirm image/kit.
Treating Fluke Connect as a process transmitter output.
Test & measurement instruments · Test & measurement buying guide
Request a Quote · Get selection help

When to RFQ / what to tell us

Confirm 374 FC (SKU 42412) vs 375/376 FC if you need frequency/mV or higher jaw class.
Optional iFlex / TPAK yes/no; CAT III 1000 V / CAT IV 600 V confirmation.
Quantity, ship-to.

Request a Quote · Get selection help

Specs

Spec	Value
SKU	42412
Brand	Fluke
Model	374 FC
Product type	clamp_meter
Measuring range	AC/DC current via jaw 600.0 A; AC via optional iFlex to 2500 A; AC/DC voltage to 1000 V; resistance to 6000 Ω; capacitance to 1000 µF
Accuracy	AC current jaw 2% ±5 digits (10–100 Hz), 2.5% ±5 digits (100–500 Hz); DC current 2% ±5 digits; iFlex AC 3% ±5 digits (5–500 Hz)
Output signal	Fluke Connect wireless logging/reporting (no analog output)
Supply voltage	2× AA alkaline
Ambient temperature	per OEM users manual operating range for 370 FC series
Electrical connection	Fixed jaw clamp; banana jacks for V/Ω/capacitance; optional iFlex flexible current probe
Display	Backlit digital display; Min/Max/Avg and inrush recording
Communication	Fluke Connect (Bluetooth)
Approvals	CAT III 1000 V, CAT IV 600 V, True-RMS
Mounting	Handheld clamp meter; optional TPAK magnetic hanger
Notes	Part of Fluke 370 FC series (374/375/376 FC). Soft case + TL75 leads included. Index model=374 FC (seed name field had 378 FC typo). OEM 370 FC Technical Data + Users Manual.

Documents

Fluke 374 FC datasheet (PDF)

FAQ

Q: How does 374 FC differ from 375 FC? A: Both jaw 600 A AC/DC with optional iFlex 2500 A. 375 FC JSON adds frequency to 500 Hz and mV DC 500.0 mV; 374 FC lists resistance to 6000 Ω. Lock features on the RFQ.

Q: Is iFlex included? A: Optional per clean sample — state if it must ship in the kit.

Q: What should I send for a quote? A: Current path, iFlex need, quantity. Compatible with systems using Fluke 374 FC — we do not claim authorized-dealer status.
