Rosemount
Rosemount Xi Advanced Electronics
Quote on request
No online payment · add lines to RFQ BOM
Xi electronics for ZrO2 O2 probes. HART/AMS; auto-cal options. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Advanced electronics for ZrO2 flue-gas O2 probes (Oxymitter 4000 / World Class / most Rosemount probes); probe O2 accuracy ±0.75% of reading or ±0.05% O2
Accuracy
Outstanding accuracy with probe; AMS-aware HART diagnostics including calibration-recommended alarm
Output
HART® communications standard; 4–20 mA; optional WirelessHART via THUM™ Adaptor
Supply
100–240 V ±10%, 50–60 Hz (catalog); Xi power consumption 10 W / 12 VA max (traditional architecture higher with probe heater)
Ambient temperature
−20 to +50 °C (−4 to +122 °F) Xi ambient; −20 to +55 °C inside electronics housing / LCD limits
Display
Large backlit LCD local operator interface
Fits zirconium-oxide combustion O2 probe control where you need Rosemount Xi Advanced Electronics with large backlit LCD, HART/AMS diagnostics, and optional automatic calibration.
Key advantages
- Probe electronics — Advanced electronics for zirconium-oxide combustion oxygen probes
- Compatibility — Works with Westinghouse/Rosemount and most ZrO2 probes (architecture-dependent)
- Interface — Large backlit LCD; HART communications standard (AMS aware); wireless via THUM adaptor option
- Calibration / diagnostics — Automatic calibration capability with sequencer; calibration-recommended diagnostic; stoichiometer; programmable reference
- Power / ambient — 100–240 V ±10%, 50–60 Hz; ambient −20 to 55 °C; CSA, FM & CE published marks
Typical applications
- Remote or traditional-architecture electronics for Oxymitter / ZrO2 probes.
- Sites needing HART/AMS diagnostics and auto-calibration sequencing.
- Retrofits adapting Xi to existing oxygen probe installations.
Selection guide
- Architecture — traditional single-channel Xi codes (e.g. Xi-04 120 V; Xi-05 44 V World Class) per Emerson catalog
- Auto-cal accessories — SPS/IMPS sequencer needs
- Wireless — THUM adaptor yes/no
- Approvals — CSA/FM/CE as published for the ordered build
Common mistakes
- Ordering Xi-04 for a 44 V World Class heater — use the matching 44 V code.
- Assuming auto-cal solenoids are inside Xi — sequencer box is separate.
- Ignoring Emerson obsolete/replacement guidance on new projects — confirm current offer on RFQ.
When to RFQ / what to tell us
- Probe model/heater voltage and channel count.
- Auto-cal / wireless needs.
- Quantity; ship-to; confirm current vs replacement product.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 1207-0003 |
| Brand | Rosemount |
| Model | Xi Advanced Electronics |
| Product type | Oxygen Analyzer Electronics |
| Type | Advanced electronics for zirconium-oxide combustion oxygen probes (Xi) |
| Compatibility | Westinghouse/Rosemount and most ZrO2 probes; traditional architecture codes for 120 V and 44 V World Class |
| Communications | HART (AMS aware); wireless via THUM adaptor option |
| Features | Large backlit LCD; automatic calibration capability; calibration-recommended diagnostic; stoichiometer; programmable reference; extended process temperature function |
| Power / ambient | 100–240 V ±10%, 50–60 Hz; ambient −20 to 55 °C (−4 to 131 °F) |
| Approvals | CSA, FM & CE (as published for ordered configuration) |
Documents
FAQ
Q: What probes does Xi run? A: Published for Westinghouse/Rosemount and most ZrO2 probes; lock heater voltage/architecture on the RFQ.
Q: Power? A: 100–240 V ±10%, 50–60 Hz; ambient −20 to 55 °C class.
Q: What should I send for a quote? A: Probe type/heater voltage, auto-cal needs, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Advanced electronics for ZrO2 flue-gas O2 probes (Oxymitter 4000 / World Class / most Rosemount probes); probe O2 accuracy ±0.75% of reading or ±0.05% O2 |
| Accuracy | Outstanding accuracy with probe; AMS-aware HART diagnostics including calibration-recommended alarm |
| Output | HART® communications standard; 4–20 mA; optional WirelessHART via THUM™ Adaptor |
| Supply | 100–240 V ±10%, 50–60 Hz (catalog); Xi power consumption 10 W / 12 VA max (traditional architecture higher with probe heater) |
| Ambient temperature | −20 to +50 °C (−4 to +122 °F) Xi ambient; −20 to +55 °C inside electronics housing / LCD limits |
| Display | Large backlit LCD local operator interface |
| Approvals | CSA, FM & CE (catalog); Xi electronics general-purpose / safe area only |
| Mounting | None / panel mount kit with gasket / 2 in pipe-wall mount kit |
| Sensor type | Remote advanced electronics for zirconium-oxide O2 probes; traditional-architecture and probe-mounted LOI options |

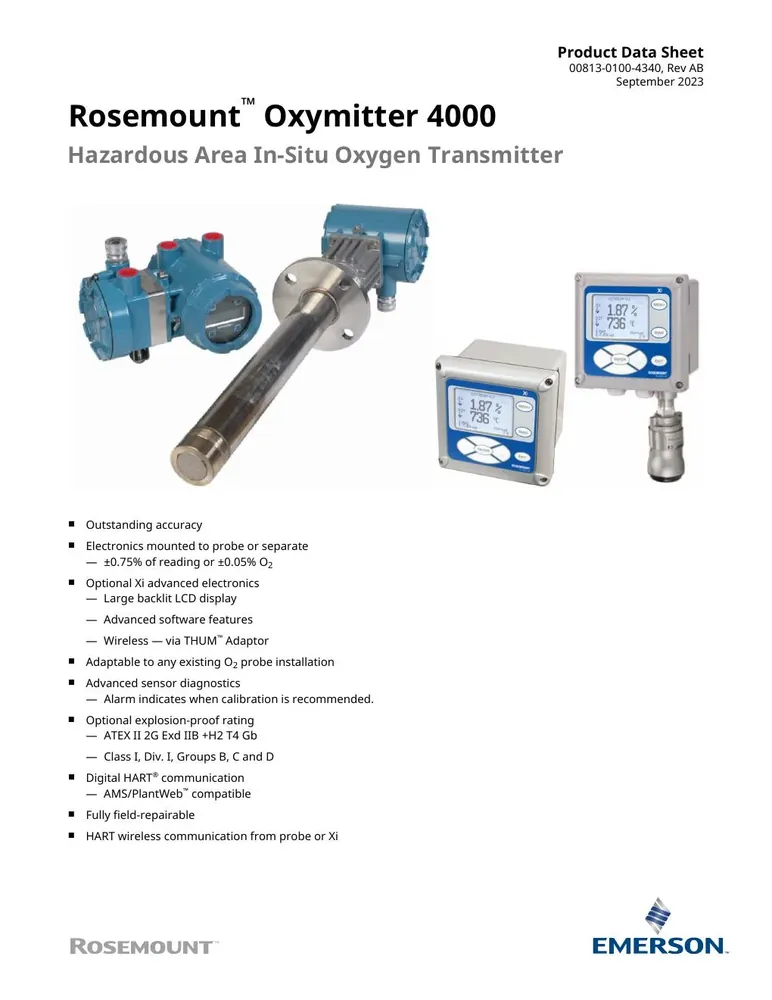

| Notes | Specs from Emerson catalog Rosemount Xi Advanced Electronics + Oxymitter 4000 PDS 00813-0100-4340 (Xi ordering section). Distinct from 6888 Xi (1207-0002). |
| Special Features | Fully automatic calibration with solenoid box; extended process temperature; programmable reference; stoichiometer; works with Westinghouse/Rosemount and most ZrO2 probes |
| Alarm Relays | 2 Form-C relays, 2 A @ 30 Vdc |
