Bacharach

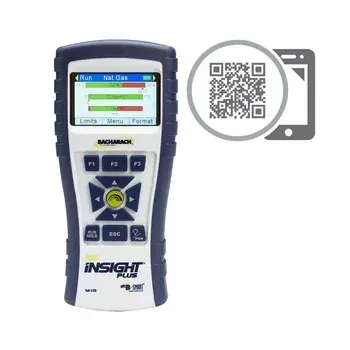

Bacharach Fyrite INSIGHT Plus Combustion Analyzer
Quote on request
No online payment · add lines to RFQ BOM
O2/CO to 4000 ppm; draft; Tune-Rite. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
O2 0–20.9%; CO 0–4000 ppm
Display
2.8 in (72 mm) backlit color LCD
Approvals
CE, EN 50379-1 & EN 50379-3
Type
Handheld residential/light-commercial combustion analyzer (Fyrite Insight Plus)
Gases
O2 and CO (CO with integrated NOx filter); calculated CO2 / efficiency / CO air-free
Stack Temperature
−4 to 1202 °F (−20 to 650 °C)
Fits residential and light-commercial HVAC combustion work where you need Fyrite INSIGHT Plus with O2/CO to 4000 ppm, draft measurement, and Tune-Rite assistance.
Key advantages
- HVAC combustion analyzer — Handheld residential/light-commercial analyzer (Fyrite Insight Plus)
- Gases — O2 and CO (CO with integrated NOx filter); calculated CO2 / efficiency / CO air-free
- Ranges — O2 0–20.9%; CO 0–4000 ppm; stack −4 to 1202 °F (−20 to 650 °C)
- Draft — ±40 inH2O (±10 mbar) draft / differential pressure
- UI / memory — 2.8 in backlit color LCD; 100 records; USB mini-B and IrDA; Tune-Rite assistant
Typical applications
- Residential/light-commercial burner tuning with Tune-Rite guidance.
- Combustion checks needing draft/differential pressure plus O2/CO.
- Service routes storing up to 100 records.
Selection guide
- CO 4000 ppm vs InTech 2000 ppm — choose Insight Plus when higher CO span/draft needed
- Fuel list — includes wood/coal/biofuel custom fuels per OEM list
- Printer / IrDA — accessory needs
Common mistakes
- Expecting full NOx ppm measurement — CO path has NOx filter; not a multi-NOx PCA400.
- Ordering InTech when draft measurement is required.
- Ignoring EN 50379 marks vs local code.
When to RFQ / what to tell us
- Accessory/printer needs.
- Quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 1290-0003 |
| Brand | Bacharach |
| Model | Fyrite INSIGHT Plus |
| Product type | Combustion Analyzer |
| Type | Handheld residential/light-commercial combustion analyzer (Fyrite Insight Plus) |
| Gases | O2 and CO (CO with integrated NOx filter); calculated CO2 / efficiency / CO air-free |
| Measuring range | O2 0–20.9%; CO 0–4000 ppm |
| Stack temperature | −4 to 1202 °F (−20 to 650 °C) |
| Draft | ±40 inH2O (±10 mbar) draft / differential pressure |
| Fuels | Natural gas, coal, oil 2/4/6, wood, kerosene, propane, butane, LPG, B5, KOKS, LEG, biofuel + 2 custom |
| Display | 2.8 in (72 mm) backlit color LCD |
| Memory / I/O | 100 records; USB 2.0 mini-B and IrDA communications |
| Power | 4× AA alkaline ≈15 hours runtime |
Documents
FAQ
Q: CO range vs InTech? A: Insight Plus CO 0–4000 ppm; InTech is 0–2000 ppm class.
Q: Draft? A: ±40 inH2O (±10 mbar) draft / differential pressure.
Q: What should I send for a quote? A: Accessories, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | O2 0–20.9%; CO 0–4000 ppm |
| Display | 2.8 in (72 mm) backlit color LCD |
| Approvals | CE, EN 50379-1 & EN 50379-3 |
| Type | Handheld residential/light-commercial combustion analyzer (Fyrite Insight Plus) |
| Gases | O2 and CO (CO with integrated NOx filter); calculated CO2 / efficiency / CO air-free |
| Stack Temperature | −4 to 1202 °F (−20 to 650 °C) |
| Draft | ±40 inH2O (±10 mbar) draft / differential pressure |
| Fuels | Natural gas, coal, oil 2/4/6, wood, kerosene, propane, butane, LPG, B5, KOKS, LEG, biofuel + 2 custom |
| Memory | 100 records; USB 2.0 mini-B and IrDA communications |
| Power | 4× AA alkaline ≈15 hours runtime |
