Armstrong International

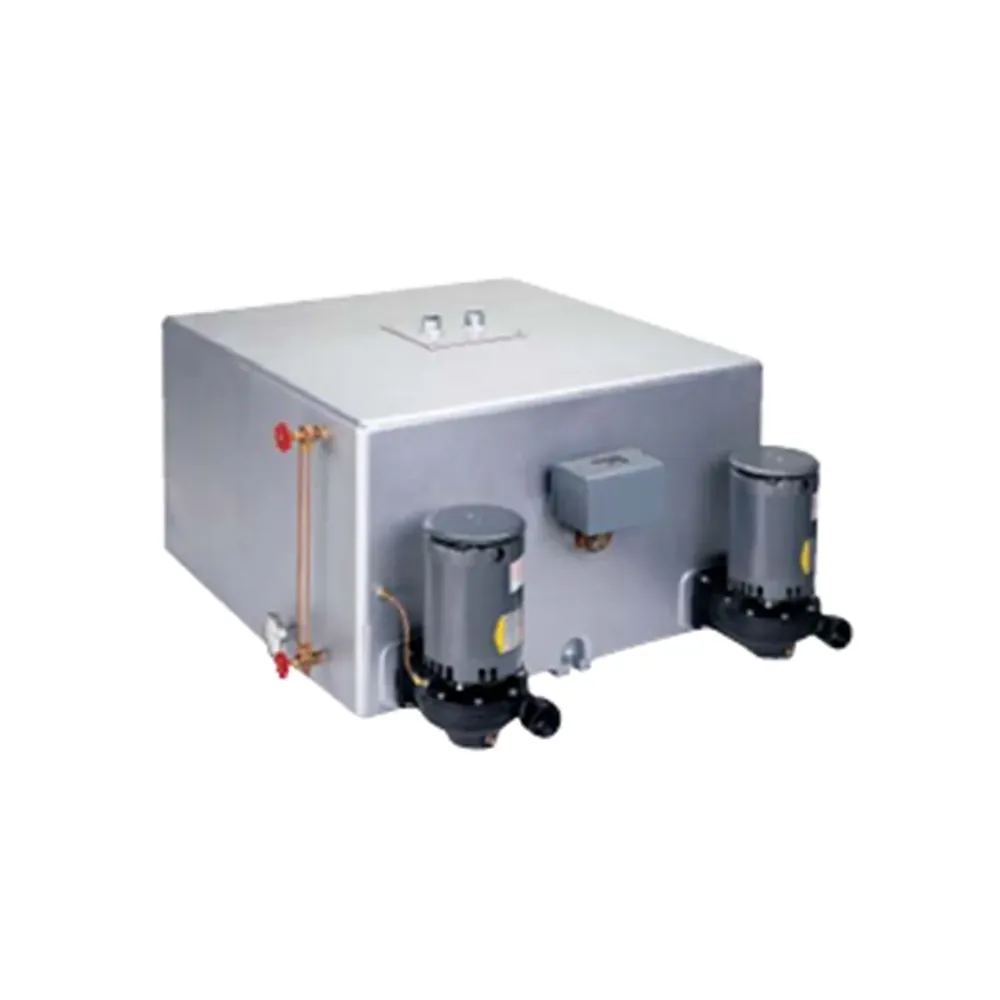

Armstrong FHC Series Electric Condensate Return
Quote on request
No online payment · add lines to RFQ BOM
Armstrong FHC: cast iron condensate return; 15–36 gal; example 12 GPM @ 20 psi. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Series
FHC Series electric condensate return (cast iron receiver)
Receiver Material
Cast iron (ASTM A48 family per OEM pump data)
Receiver Sizes
15–36 gallon cast iron receivers (series range)
Example Unit
AFH-4228-GDA duplex: 15 gal CI, 12 GPM @ 20 psi, 1/3 HP ODP, 115V/1/60 3450 RPM
Motor
Open drip-proof; NEMA 1 mechanical alternator on duplex example
Connections Example
2-1/2 in NPT vent; 3/4 in NPT pump discharge; 2 in NPT process return; overflow/drain
Fits cast-iron condensate return service where you need an Armstrong FHC Series unit. Electric condensate return with cast iron receivers (ASTM A48 family per OEM pump data) in about 15–36 gallon sizes; example AFH-4228-GDA duplex: 15 gal CI, 12 GPM @ 20 psi, 1/3 HP ODP, 115V/1/60 3450 RPM with NEMA 1 mechanical alternator on duplex example.
Key advantages
- Receiver — Cast iron
- Sizes — 15–36 gallon class
- Example — 12 GPM @ 20 psi duplex
- Motor — ODP; NEMA 1 alternator (duplex)
- Series — FHC electric condensate return
Typical applications
- Steam condensate return.
- Cast-iron receiver packages.
- Duplex condensate pumps.
Selection guide
- Receiver gallons
- GPM / head
- Simplex vs duplex
Common mistakes
- Steel where CI specified.
- Wrong GPM/head.
- Electrical supply mismatch.
When to RFQ / what to tell us
- GPM/head/receiver.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 819480 |
| Brand | Armstrong International |
| Model | FHC Series |
| Product type | Condensate Return Unit |
| Series | FHC Series electric condensate return (cast iron receiver) |
| Receiver material | Cast iron (ASTM A48 family per OEM pump data) |
| Receiver sizes | 15–36 gallon cast iron receivers (series range) |
| Example unit | AFH-4228-GDA duplex: 15 gal CI, 12 GPM @ 20 psi, 1/3 HP ODP, 115V/1/60 3450 RPM |
| Motor | Open drip-proof; NEMA 1 mechanical alternator on duplex example |
Documents
FAQ
Q: Material? A: Cast iron.
Q: Size class? A: 15–36 gallon.
Q: What should I send for a quote? A: GPM/head/receiver, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Series | FHC Series electric condensate return (cast iron receiver) |
| Receiver Material | Cast iron (ASTM A48 family per OEM pump data) |
| Receiver Sizes | 15–36 gallon cast iron receivers (series range) |
| Example Unit | AFH-4228-GDA duplex: 15 gal CI, 12 GPM @ 20 psi, 1/3 HP ODP, 115V/1/60 3450 RPM |
| Motor | Open drip-proof; NEMA 1 mechanical alternator on duplex example |
| Connections Example | 2-1/2 in NPT vent; 3/4 in NPT pump discharge; 2 in NPT process return; overflow/drain |
| Application | Electric condensate pumping / boiler feed condensate return |
| Controls | Simplex or duplex with mechanical alternator options |
| Documentation | OEM submittal drawing + IOM + PumpTrap data bulletin |
| Weight Example | ~295 lb (AFH-4228-GDA submittal) |
