Endress+Hauser
Endress+Hauser Smartec CLD18 Compact Conductivity Device
Quote on request
No online payment · add lines to RFQ BOM
E+H Smartec CLD18: inductive cond; 200 μS/cm–1000 mS/cm; −10…130 °C; 4–20 mA/IO-Link. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring Principle
Inductive (toroidal) conductivity
Conductivity Range
Recommended 200 μS/cm to 1000 mS/cm (uncompensated)
Temperature Range Meas
−10 to 130 °C (14 to 266 °F)
Measured Error
Conductivity ±(2.0% of measured value + 20 μS/cm); temperature ±1.5 K
Repeatability
Conductivity max 0.5% of measured value ±5 μS/cm ±2 digits
Outputs
Conductivity and temperature 0/4–20 mA galvanically isolated; optional IO-Link 1.1.3
Fits compact inductive conductivity where you need an Endress+Hauser Smartec CLD18. Toroidal conductivity device for about 200 μS/cm to 1000 mS/cm, temperature −10 to 130 °C, measured error ±(2.0% of measured value + 20 μS/cm), with galvanically isolated 0/4–20 mA conductivity and temperature outputs and optional IO-Link 1.1.3.
Key advantages
- Principle — Inductive (toroidal)
- Range — 200 μS/cm to 1000 mS/cm recommended
- Temperature — −10 to 130 °C
- Outputs — Cond + T 0/4–20 mA isolated
- IO-Link — Optional 1.1.3
Typical applications
- CIP conductivity.
- Compact process cond.
- Food / beverage inductive cond.
Selection guide
- IO-Link vs analog
- Mounting
- Range band
Common mistakes
- Below 200 μS/cm without care.
- Air in toroid.
- Ignoring +20 μS/cm floor.
When to RFQ / what to tell us
- Output/mounting.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 47562 |
| Brand | Endress+Hauser |
| Model | Smartec CLD18 Compact Conductivity Device |
| Product type | Conductivity Device |
| Measuring principle | Inductive (toroidal) conductivity |
| Conductivity range | Recommended 200 μS/cm to 1000 mS/cm (uncompensated) |
| Temperature range | −10 to 130 °C (14 to 266 °F) |
| Measured error | Conductivity ±(2.0% of measured value + 20 μS/cm); temperature ±1.5 K |
| Repeatability | Conductivity max 0.5% of measured value ±5 μS/cm ±2 digits |
| Outputs | Conductivity and temperature 0/4–20 mA galvanically isolated; optional IO-Link 1.1.3 |
Documents
FAQ
Q: Principle? A: Inductive toroidal.
Q: Outputs? A: Cond + T 0/4–20 mA; IO-Link option.
Q: What should I send for a quote? A: Output/mounting, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring Principle | Inductive (toroidal) conductivity |
| Conductivity Range | Recommended 200 μS/cm to 1000 mS/cm (uncompensated) |
| Temperature Range Meas | −10 to 130 °C (14 to 266 °F) |
| Measured Error | Conductivity ±(2.0% of measured value + 20 μS/cm); temperature ±1.5 K |
| Repeatability | Conductivity max 0.5% of measured value ±5 μS/cm ±2 digits |
| Outputs | Conductivity and temperature 0/4–20 mA galvanically isolated; optional IO-Link 1.1.3 |
| Ingress Protection | IP69 (EN 40050); NEMA Type 6P |
| Response Time | Conductivity t95 < 1.5 s; temperature t90 < 20 s |
| Sensor Material | Food-safe PEEK; hygienic design EHEDG / 3-A class |
| Housing | Stainless steel 1.4308 or plastic PBT GF; high-pressure steam cleanable |
| Weight | Stainless max 1.870 kg; plastic max 1.070 kg |
| Applications | Beverage phase separation, CIP concentration control, industrial water, pickling rinse |

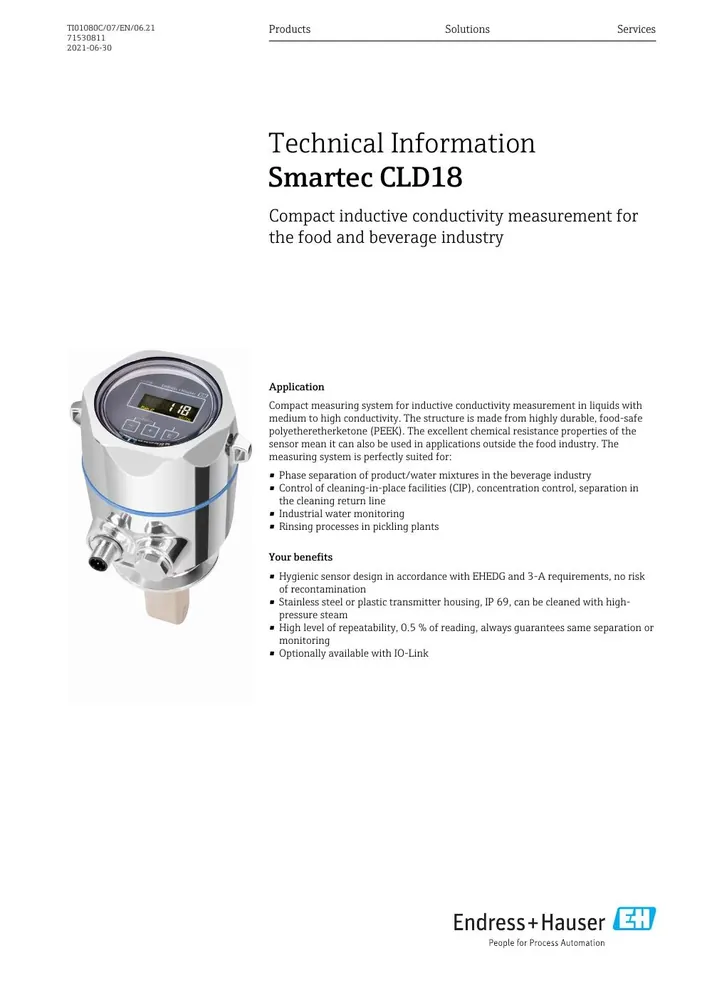

| Document | TI01080C/07/EN/06.21; BA01149CEN |
