Intempco
Intempco DTG03 Digital Temperature Gauge
Quote on request
No online payment · add lines to RFQ BOM
Pt100 digital gauge; 4–20 mA; ±0.25% span; IP65/NEMA 4X. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
Factory calibrated +/-0.25% of span or better
Display
Large 4-digit red LED
Type

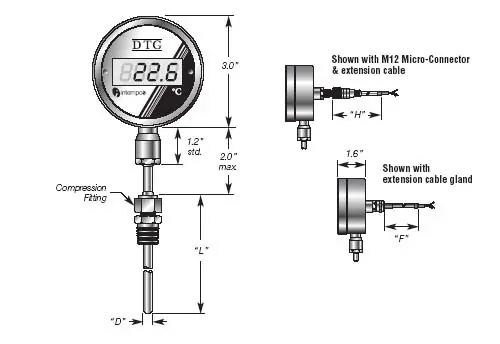

Top-mount digital RTD temperature gauge with adjustable compression fitting (DTG03)
Sensor
Pt-100 Ohm RTD Class A; Intempco MIST technology
Operating Range
-50 to 200 C (-58 to 392 F) class (range codes selectable)
Materials
All stainless steel 316 housing, probe, and fittings
Fits local digital temperature indication with retransmission where you need an Intempco DTG03 top-mount Pt100 gauge with large 4-digit LED and programmable 4–20 mA output.
Key advantages
- Sensor — Pt-100 Ω RTD Class A; Intempco MIST technology
- Display — Large 4-digit red LED
- Output — Programmable linearized 4–20 mA (3-wire; burnout options)
- Accuracy — Factory calibrated ±0.25% of span or better
- Build — All 316 SS housing/probe/fittings; IP65 / NEMA 4X
Typical applications
- Local tank/pipe temperature indication.
- 4–20 mA retransmission to PLC/DCS.
- Sanitary-leaning stainless installs.
Selection guide
- Range code — −50 to 200 °C class selectable
- Probe / fitting — Length and compression fitting
- Electrical — M12 vs cable gland
- Reprogramming — Optional DTG PKIT PC interface
Common mistakes
- Wrong range code vs process temperature.
- Ignoring 3-wire mA wiring.
- Field reprogramming without PKIT when needed.
When to RFQ / what to tell us
- Range, probe length, fitting.
- Electrical connection; quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 23265 |
| Brand | Intempco |
| Model | DTG03 Digital Temperature Gauge |
| Product type | Digital Temperature Gauge |
| Type | Top-mount digital RTD temperature gauge with adjustable compression fitting (DTG03) |
| Display | Large 4-digit red LED |
| Sensor | Pt-100 Ohm RTD Class A; Intempco MIST technology |
| Output | Programmable linearized 4-20 mA (3-wire source; upscale/downscale burnout options) |
| Accuracy | Factory calibrated +/-0.25% of span or better |
| Operating range | -50 to 200 C (-58 to 392 F) class (range codes selectable) |
| Materials | All stainless steel 316 housing, probe, and fittings |
| Protection | IP65 / NEMA 4X |
| Electrical | M12 micro-male plug or cable gland |
| Reprogramming | Field re-programmable with optional PC interface module/software (DTG PKIT) |
Documents
FAQ
Q: Output? A: Programmable linearized 4–20 mA (3-wire).
Q: Accuracy? A: ±0.25% of span or better (factory calibrated).
Q: What should I send for a quote? A: Range/probe/fitting, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | Factory calibrated +/-0.25% of span or better |
| Display | Large 4-digit red LED |
| Type | Top-mount digital RTD temperature gauge with adjustable compression fitting (DTG03) |
| Sensor | Pt-100 Ohm RTD Class A; Intempco MIST technology |
| Operating Range | -50 to 200 C (-58 to 392 F) class (range codes selectable) |
| Materials | All stainless steel 316 housing, probe, and fittings |
| Protection | IP65 / NEMA 4X |
| Electrical | M12 micro-male plug or cable gland |
| Reprogramming | Field re-programmable with optional PC interface module/software (DTG PKIT) |
| Document | Intempco DTG01-09 / DTG03 catalog sheet (dtg03.pdf Rev. B-01052011) |
