Endress+Hauser

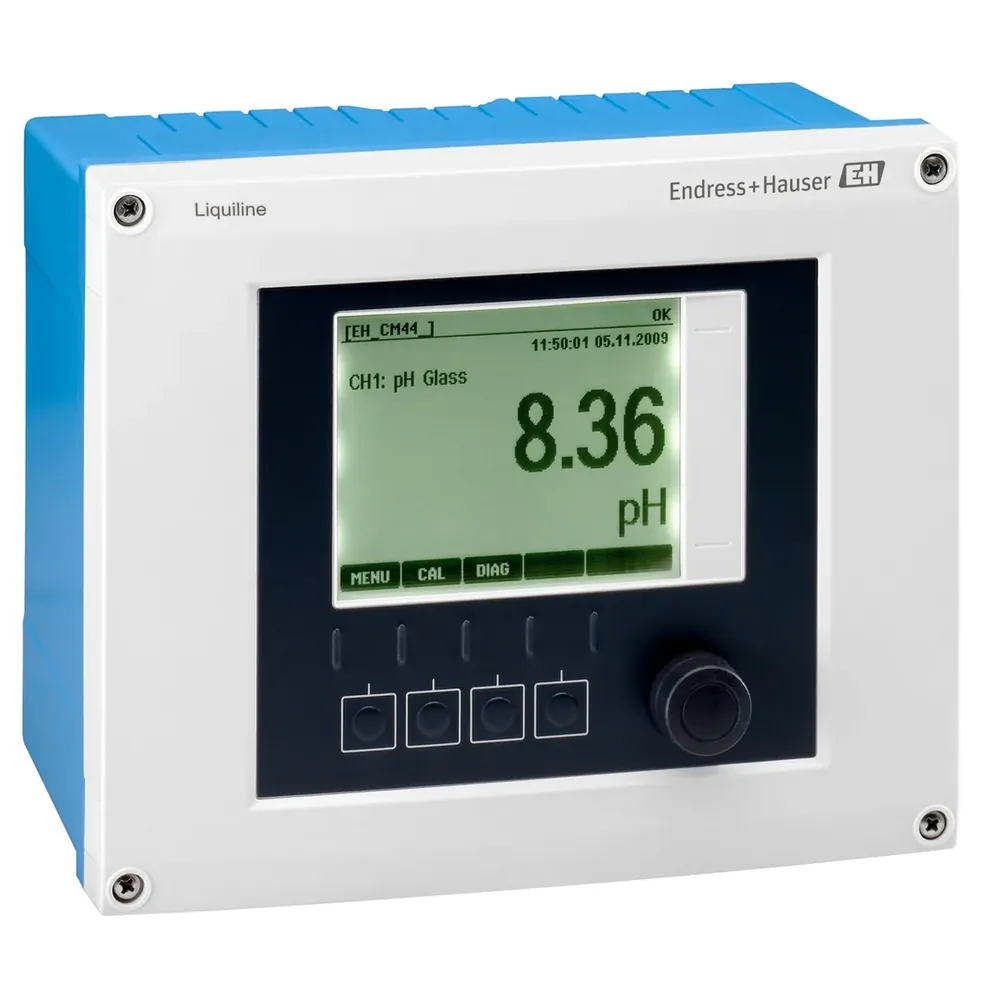

Endress+Hauser Liquiline CM444 Transmitter
Quote on request
No online payment · add lines to RFQ BOM
E+H Liquiline CM444: to 4 Memosens inputs; 100–230 VAC or 24 VDC; fieldbus/web. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Multiparameter transmitter; CM444 up to 4 Memosens inputs (pH/ORP, conductivity, DO, chlorine, turbidity, etc. per sensors)
Accuracy
Measurement accuracy depends on connected Memosens sensor; TI gives current I/O error tables
Output
Active current outputs (optional HART); relays; HART/PROFIBUS DP/Modbus/EtherNet/IP/PROFINET; web server
Supply
CM444: 100–230 VAC 50/60 Hz (±15%) max 73 VA; or 24 VDC max 68 W
Housing
Field housing (polycarbonate class) per TI mechanical construction
Protection
IP66/67 (IEC 60529); NEMA Type 4X (UL 50E)
Fits higher-channel liquid analysis where you need an Endress+Hauser Liquiline CM444. Multiparameter transmitter for up to four Memosens inputs (pH/ORP, conductivity, DO, chlorine, turbidity and more) with active current/HART, relays, fieldbus options and web server, on 100–230 VAC (max 73 VA) or 24 VDC (max 68 W).
Key advantages
- Inputs — Up to 4 Memosens
- Parameters — pH/ORP, cond, DO, chlorine, turbidity…
- Outputs — Active current/HART; relays
- Comms — Fieldbus + web server options
- Power — 100–230 VAC or 24 VDC
Typical applications
- Multi-sensor water panels.
- Process analytical racks.
- CM44x family expansions.
Selection guide
- Sensor mix
- Fieldbus / web
- AC vs 24 VDC
Common mistakes
- Channel count overflow.
- Wrong power budget.
- Missing sensor parameter codes.
When to RFQ / what to tell us
- Sensors/I/O/power.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 46141 |
| Brand | Endress+Hauser |
| Model | Liquiline CM444 |
| Product type | Transmitter |
| Measuring range | Multiparameter transmitter; CM444 up to 4 Memosens inputs (pH/ORP, conductivity, DO, chlorine, turbidity, etc. per sensors) |
| Accuracy | Measurement accuracy depends on connected Memosens sensor; TI gives current I/O error tables |
| Output signal | Active current outputs (optional HART); relays; HART/PROFIBUS DP/Modbus/EtherNet/IP/PROFINET; web server |
| Supply voltage | CM444: 100–230 VAC 50/60 Hz (±15%) max 73 VA; or 24 VDC max 68 W |
Documents
FAQ
Q: Memosens inputs? A: Up to 4.
Q: Power? A: 100–230 VAC or 24 VDC.
Q: What should I send for a quote? A: Sensors/I/O/power, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Multiparameter transmitter; CM444 up to 4 Memosens inputs (pH/ORP, conductivity, DO, chlorine, turbidity, etc. per sensors) |
| Accuracy | Measurement accuracy depends on connected Memosens sensor; TI gives current I/O error tables |
| Output | Active current outputs (optional HART); relays; HART/PROFIBUS DP/Modbus/EtherNet/IP/PROFINET; web server |
| Supply | CM444: 100–230 VAC 50/60 Hz (±15%) max 73 VA; or 24 VDC max 68 W |
| Housing | Field housing (polycarbonate class) per TI mechanical construction |
| Protection | IP66/67 (IEC 60529); NEMA Type 4X (UL 50E) |
| Ambient temperature | CM444 generally −20 to 55 °C (−4 to 131 °F); some packages −20 to 50 °C; storage −40 to +80 °C |
| Display | Graphic display with soft keys; menu-guided operation; data logbook graphics |
| Communication | HART; PROFIBUS DP; Modbus; EtherNet/IP; PROFINET; web server |
| Approvals | CE; UL; CSA |
| Hazardous area | Optional Ex-i Memosens modules (2DS Ex-i) — see TI approvals |
| Notes | Transmitter-only — process_connection/wetted blank. Specs from TI00444C EN. |
