Meunier Technologies
Meunier Technologies DICE Dosing Module
Quote on request
No online payment · add lines to RFQ BOM
Machined chemical dosing block; acrylic/PVC/PVDF; integrated valves. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Type
Machined chemical dosing module (DICE™ DS/DM family)
Body Materials
Clear acrylic (PMMA), PVC, PVDF (CPVC components available)
Seal Materials
Viton or EPDM
Pressure Relief
Adjustable 0 to 150 psi
Integrated Features
Outlet/calibration/drain ball valves; back-pressure valve; PRV; bleed; pressure gauge
Auxiliary Ports
Pulsation dampener, wash, transport/dilution water, secondary pumps
Fits chemical injection skids where you need a machined DICE DS/DM dosing module that consolidates valves, PRV, back-pressure, and gauge ports in one leak-reduced block.
Key advantages
- Design — Machined chemical dosing module (DICE DS/DM family)
- Materials — Clear acrylic (PMMA), PVC, PVDF (CPVC components available); Viton or EPDM seals
- Integrated — Outlet/calibration/drain ball valves; back-pressure valve; PRV; bleed; pressure gauge
- PRV — Adjustable 0 to 150 psi
- Footprint — 3 supporting bolts and 4 connections; up to 3 pumps / 1 injection point (config-dependent)
Typical applications
- Chemical dosing skids needing fewer threaded leak points.
- Retrofits replacing spaghetti tubing around metering pumps.
- Multi-pump single-injection manifolds in water treatment.
Selection guide
- Body material — Acrylic vs PVC vs PVDF for chemical compatibility
- Seals — Viton vs EPDM
- Ports / auxiliaries — Pulsation dampener, wash, dilution water, secondary pumps
- Capacity — Pump count and injection-point layout
Common mistakes
- Selecting acrylic for solvents that require PVDF.
- Omitting back-pressure/PRV setpoints for the pump curve.
- Assuming every auxiliary port is populated — confirm configuration.
When to RFQ / what to tell us
- Chemical, concentration, and wetted-material needs.
- Pump count, PRV setpoint, auxiliary ports.
- Quantity and ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 141103 |
| Brand | Meunier Technologies |
| Model | DICE Dosing Module |
| Product type | Dosing Module |
| Type | Machined chemical dosing module (DICE™ DS/DM family) |
| Body materials | Clear acrylic (PMMA), PVC, PVDF (CPVC components available) |
| Seal materials | Viton or EPDM |
| Pressure relief | Adjustable 0 to 150 psi |
| Integrated features | Outlet/calibration/drain ball valves; back-pressure valve; PRV; bleed; pressure gauge |
| Auxiliary ports | Pulsation dampener, wash, transport/dilution water, secondary pumps |

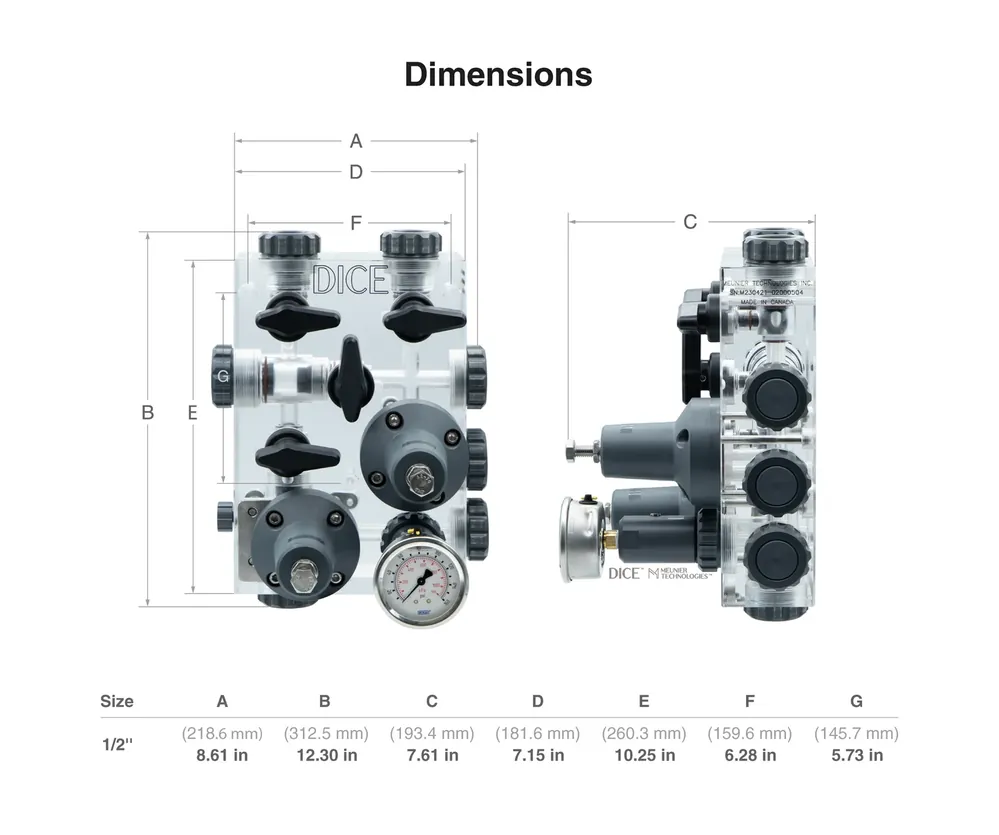

| Installation | 3 supporting bolts and 4 connections; retrofit-friendly compact footprint |
| Capacity | One module can serve up to 3 pumps / 1 injection point (config-dependent) |
Documents
FAQ
Q: What body materials are offered? A: Clear acrylic (PMMA), PVC, PVDF; CPVC components available.
Q: What is integrated in the block? A: Outlet/calibration/drain valves, back-pressure, PRV, bleed, and gauge (config-dependent).
Q: What should I send for a quote? A: Chemical/materials, pump layout, PRV, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Type | Machined chemical dosing module (DICE™ DS/DM family) |
| Body Materials | Clear acrylic (PMMA), PVC, PVDF (CPVC components available) |
| Seal Materials | Viton or EPDM |
| Pressure Relief | Adjustable 0 to 150 psi |
| Integrated Features | Outlet/calibration/drain ball valves; back-pressure valve; PRV; bleed; pressure gauge |
| Auxiliary Ports | Pulsation dampener, wash, transport/dilution water, secondary pumps |
| Installation | 3 supporting bolts and 4 connections; retrofit-friendly compact footprint |
| Capacity | One module can serve up to 3 pumps / 1 injection point (config-dependent) |
| Testing | Hydrostatic testing included on every module |
| Feature | Block design reduces threaded/glued leak points on pressurized side |
