Additel

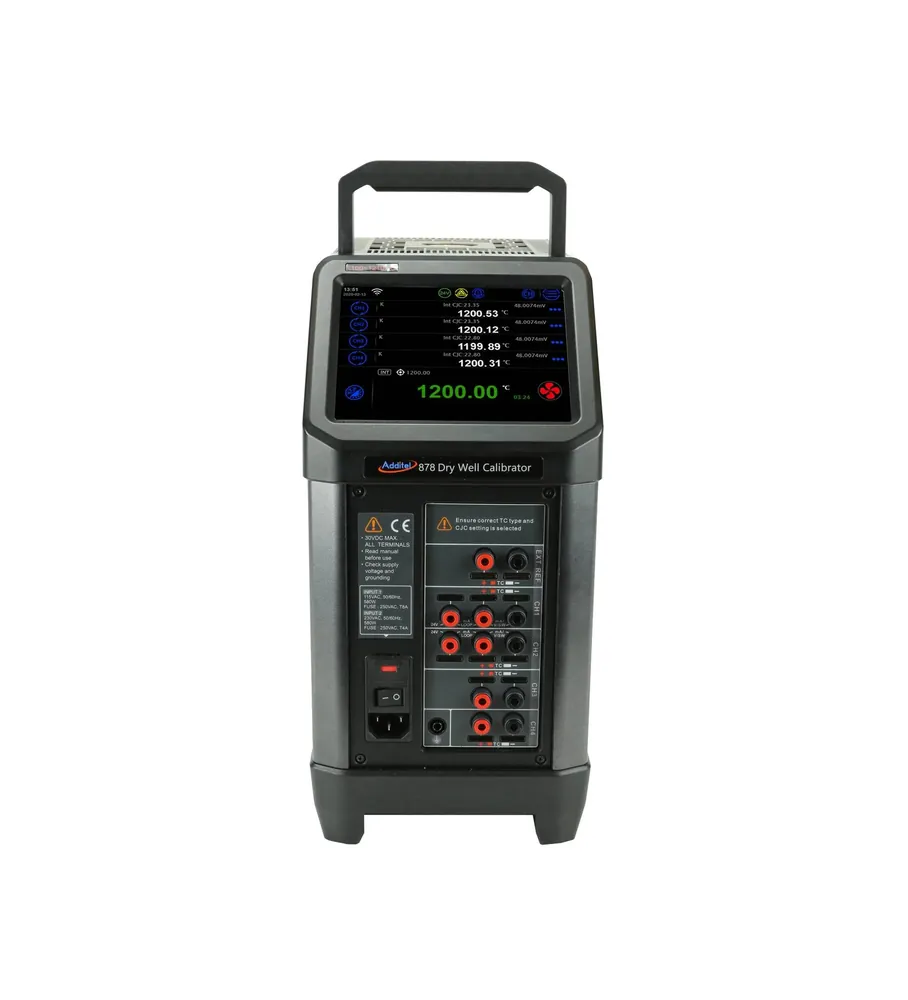

Additel ADT878-1210 Dry Well Calibrator
Quote on request
No online payment · add lines to RFQ BOM
Additel ADT878-1210: dry well 100–1210 °C; display ±1.0…±1.5 °C by point. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Temperature control 100 °C to 1210 °C (dry-well / TC furnace)
Accuracy
ADT878-1210 display accuracy ±1.0 °C @ 100/300/600 °C; ±1.2 °C @ 900 °C; ±1.5 °C @ 1210 °C (requires XR insert); stability ±0.1 °C
Output
Heat source; optional PC electronics: TC channels, mA/V measure, 24 V, HART, switch test
Supply
90–254 VAC, 45–65 Hz, 580 W
Process connection
Metallic interchangeable inserts, OD 24.8 mm (XR/XS)
Electrical connection
USB A, USB B, RJ45; Wi-Fi; Bluetooth
Fits high-temperature dry-well calibration where you need an Additel ADT878-1210. Dry-well / TC furnace spanning 100 °C to 1210 °C with display accuracy ±1.0 °C at 100/300/600 °C, ±1.2 °C at 900 °C and ±1.5 °C at 1210 °C when using the required XR insert class per OEM conditions.
Key advantages
- Range — 100 to 1210 °C
- Accuracy — ±1.0…±1.5 °C by temperature
- Form — Dry-well / TC furnace
- Insert — XR insert required for stated accuracy
- Family — ADT878 high-temp
Typical applications
- High-temp dry-well cal.
- TC sensor calibration.
- Lab furnace-style wells.
Selection guide
- Insert set
- Reference probe
- Accessories
Common mistakes
- Missing XR insert.
- Ignoring point-wise accuracy.
- Rushing heat soak.
When to RFQ / what to tell us
- Inserts/options.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 52532 |
| Brand | Additel |
| Model | ADT878-1210 |
| Product type | Dry Well Calibrator |
| Measuring range | Temperature control 100 °C to 1210 °C (dry-well / TC furnace) |
| Accuracy | ADT878-1210 display accuracy ±1.0 °C @ 100/300/600 °C; ±1.2 °C @ 900 °C; ±1.5 °C @ 1210 °C (requires XR insert); stability ±0.1 °C |
| Range min | 100 |
| Range max | 1210 |
| Range unit | C |
Documents
FAQ
Q: Range? A: 100 to 1210 °C.
Q: Accuracy @ 1210? A: ±1.5 °C (XR insert).
Q: What should I send for a quote? A: Inserts/options, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Temperature control 100 °C to 1210 °C (dry-well / TC furnace) |
| Accuracy | ADT878-1210 display accuracy ±1.0 °C @ 100/300/600 °C; ±1.2 °C @ 900 °C; ±1.5 °C @ 1210 °C (requires XR insert); stability ±0.1 °C |
| Output | Heat source; optional PC electronics: TC channels, mA/V measure, 24 V, HART, switch test |
| Supply | 90–254 VAC, 45–65 Hz, 580 W |
| Process connection | Metallic interchangeable inserts, OD 24.8 mm (XR/XS) |
| Electrical connection | USB A, USB B, RJ45; Wi-Fi; Bluetooth |
| Ambient temperature | Guaranteed accuracy ambient 8…38 °C; normal operation 0…50 °C, 0–90% RH non-condensing, 3000 m |
| Display | 6.5 in (165 mm) color touch screen; resolution 0.01 °C |
| Communication | USB A/B, RJ45, Wi-Fi, Bluetooth |
| Approvals | ISO 17025 accredited calibration with data included |
| Mounting | Benchtop portable furnace |
| Notes | Size 345 × 170 × 330 mm. Heating ~50 min 23→1210 °C; typical time to stability 15 min. 878 specs require XR insert else defaults to 875 specs. Shared DS with ADT875-1210. |
| Weight | 10.6 kg (23.4 lb) |
