Rosemount
Rosemount PowerVUE 4×5 Fan/Damper Actuator
Quote on request
No online payment · add lines to RFQ BOM
Rosemount PowerVUE PVD 405 4×5 fan/damper actuator; 400 ft-lb; HART/FF via FieldVUE DVC. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Notes

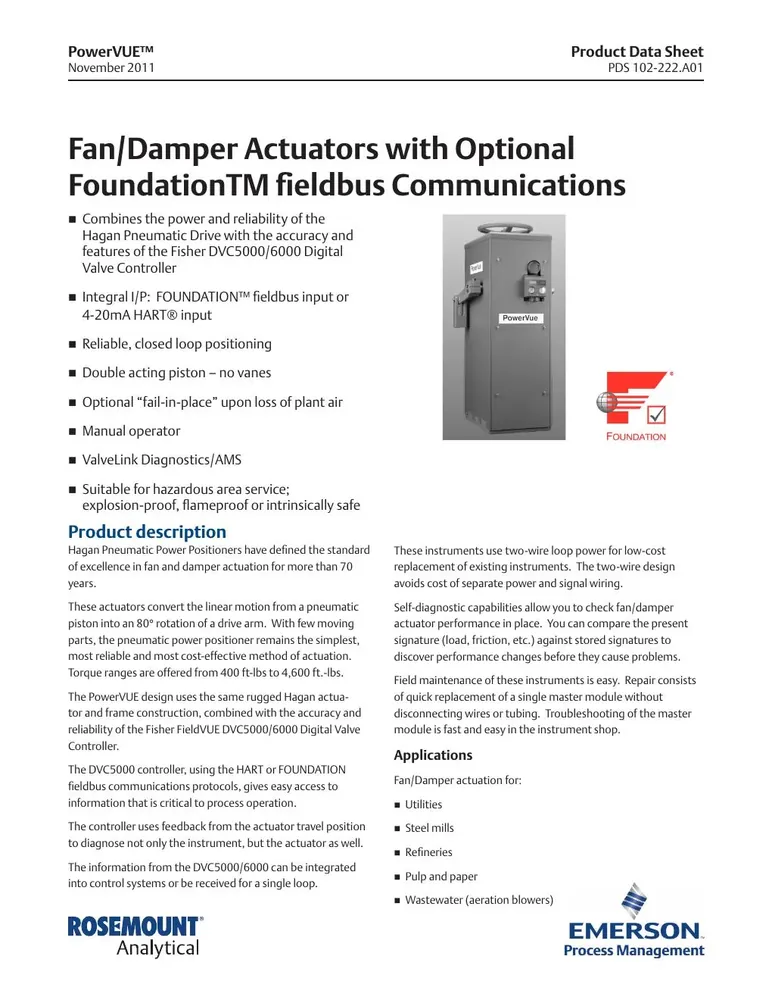

Specs from Emerson PowerVUE PDS 102-222.A01 (Nov 2011). Same Hagan actuator construction as legacy torque positioners.
Positioner Type
Rosemount PowerVUE PVD 405 — 4×5 torque-type floor-mounted fan/damper actuator (Hagan pneumatic drive + Fisher FieldVUE DVC)
Output Motion
5 in (127 mm) stroke, 80° shaft rotation
Stall Torque
400 ft-lb (542 N·m) at 100 psig (689 kPa) air supply
Max Friction Load
50% of control torque; max weight load 140 ft-lb (189 N·m)
Repeatability
±0.5% of full stroke or better
Fits fan and damper final-control jobs that need a floor-mounted 4×5 torque Hagan pneumatic drive with integral Fisher FieldVUE digital valve controller — 5 in / 80° motion, 400 ft-lb stall at 100 psig, and 4–20 mA HART or FOUNDATION fieldbus.
Key advantages
- Type — PowerVUE PVD 405: 4×5 torque-type floor-mounted fan/damper actuator (Hagan drive + FieldVUE DVC)
- Motion / torque — 5 in (127 mm) stroke, 80° shaft rotation; stall 400 ft-lb (542 N·m) at 100 psig
- Control — 4–20 mA with HART or FOUNDATION fieldbus (integral I/P via DVC5000/6000 class)
- Dynamics — Full stroke 3 s no-load; repeatability ±0.5% of full stroke or better
- Options — Mechanical air lock, manual lock, limit switches, 4–20 mA position feedback (HART), heater/thermostat
Typical applications
- Boiler / furnace fan and damper positioning with digital valve-controller diagnostics
- Retrofits from legacy Hagan torque positioners to PowerVUE with HART or fieldbus
- Loops needing ±0.5% repeatability and position feedback
- Outdoor or cold installs specifying heater/thermostat option
Selection guide
- Torque / loads — Stall 400 ft-lb at 100 psig; max friction 50% of control torque; max weight load 140 ft-lb (189 N·m)
- Air — Operating 45–100 psig (310–689 kPa); recommended 100 psig; max cylinder 100 psig; ~10 scfm steady state
- Temperature — Without heater 40–122 °F (4.4–50 °C), 140 °F with increased maintenance; with heater −10–122 °F class
- Weight — ~80 lb (36 kg) typical; shipping ~95 lb (43 kg)
- Protocol — Specify HART vs FOUNDATION fieldbus and DVC generation on RFQ
Common mistakes
- Confusing PowerVUE (DVC-integrated) with legacy pneumatic-only 4×5 torque positioners
- Undersizing air capacity — steady-state consumption listed ~10 scfm
- Ignoring max weight load 140 ft-lb while citing stall torque
- Leaving heater / feedback / air-lock options blank for the site environment
When to RFQ / what to tell us
- Torque/friction/weight load, air supply capacity, and protocol (HART vs FF)
- Options (air lock, manual lock, limit switches, position feedback, heater), quantity
- Ship-to and shaft / foundation interface notes
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 42114 |
| Brand | Rosemount |
| Model | PowerVUE 4x5 (PVD 405) |
| Product type | pneumaticpowerpositioner / fan-damper actuator |
| Positioner type | PowerVUE PVD 405 — 4×5 torque floor-mounted (Hagan + FieldVUE DVC) |
| Output motion | 5 in (127 mm) stroke, 80° shaft rotation |
| Stall torque | 400 ft-lb (542 N·m) at 100 psig (689 kPa) |
| Max friction / weight load | 50% of control torque; max weight 140 ft-lb (189 N·m) |
| Repeatability | ±0.5% of full stroke or better |
| Full stroke time | 3 s no-load |
| Input signal | 4–20 mA with HART or FOUNDATION fieldbus (integral I/P via DVC) |
| Air supply | 45–100 psig; recommended 100 psig; max cylinder 100 psig |
| Air consumption | 10 scfm steady state |
| Temperature | Without heater 40–122 °F (4.4–50 °C); with heater −10–122 °F class |
| Unit weight | ~80 lb (36 kg) typical; shipping ~95 lb (43 kg) |
| Options | Mechanical air lock, manual lock, limit switches, 4–20 mA position feedback (HART), heater/thermostat 115 V 150 W |
| Notes | Specs from Emerson PowerVUE PDS 102-222.A01 class documentation |
Documents
FAQ
Q: How is PowerVUE different from a basic Hagan 4×5? A: PowerVUE pairs the Hagan pneumatic torque drive with an integral Fisher FieldVUE DVC for 4–20 mA HART or FOUNDATION fieldbus control/diagnostics.
Q: What stall torque at recommended air? A: 400 ft-lb (542 N·m) at 100 psig; respect friction and weight-load limits in the OEM data.
Q: What should I send for a quote? A: Torque/loads, air capacity, HART vs FF, options, quantity, ship-to. Compatible with systems using Rosemount PowerVUE 4×5 — we do not claim authorized-dealer status.
Links
| Parameter | Value |
|---|---|
| Notes | Specs from Emerson PowerVUE PDS 102-222.A01 (Nov 2011). Same Hagan actuator construction as legacy torque positioners. |
| Positioner Type | Rosemount PowerVUE PVD 405 — 4×5 torque-type floor-mounted fan/damper actuator (Hagan pneumatic drive + Fisher FieldVUE DVC) |
| Output Motion | 5 in (127 mm) stroke, 80° shaft rotation |
| Stall Torque | 400 ft-lb (542 N·m) at 100 psig (689 kPa) air supply |
| Max Friction Load | 50% of control torque; max weight load 140 ft-lb (189 N·m) |
| Repeatability | ±0.5% of full stroke or better |
| Full Stroke Time | 3 s no-load |
| Input Signal | 4–20 mA with HART or FOUNDATION fieldbus (integral I/P via DVC5000/6000) |
| Air Supply | Operating 45–100 psig (310–689 kPa); recommended 100 psig; max cylinder 100 psig |
| Air Consumption | 10 scfm steady state |
| Temperature Limit | Without heater 40–122 °F (4.4–50 °C), 140 °F (60 °C) with increased maintenance; with heater −10–122 °F |
| Unit Weight | ~80 lb (36 kg) typical; shipping ~95 lb (43 kg) |
| Options | Mechanical air lock, manual lock, limit switches, 4–20 mA position feedback (HART), heater/thermostat 115 V 150 W |
