Rosemount

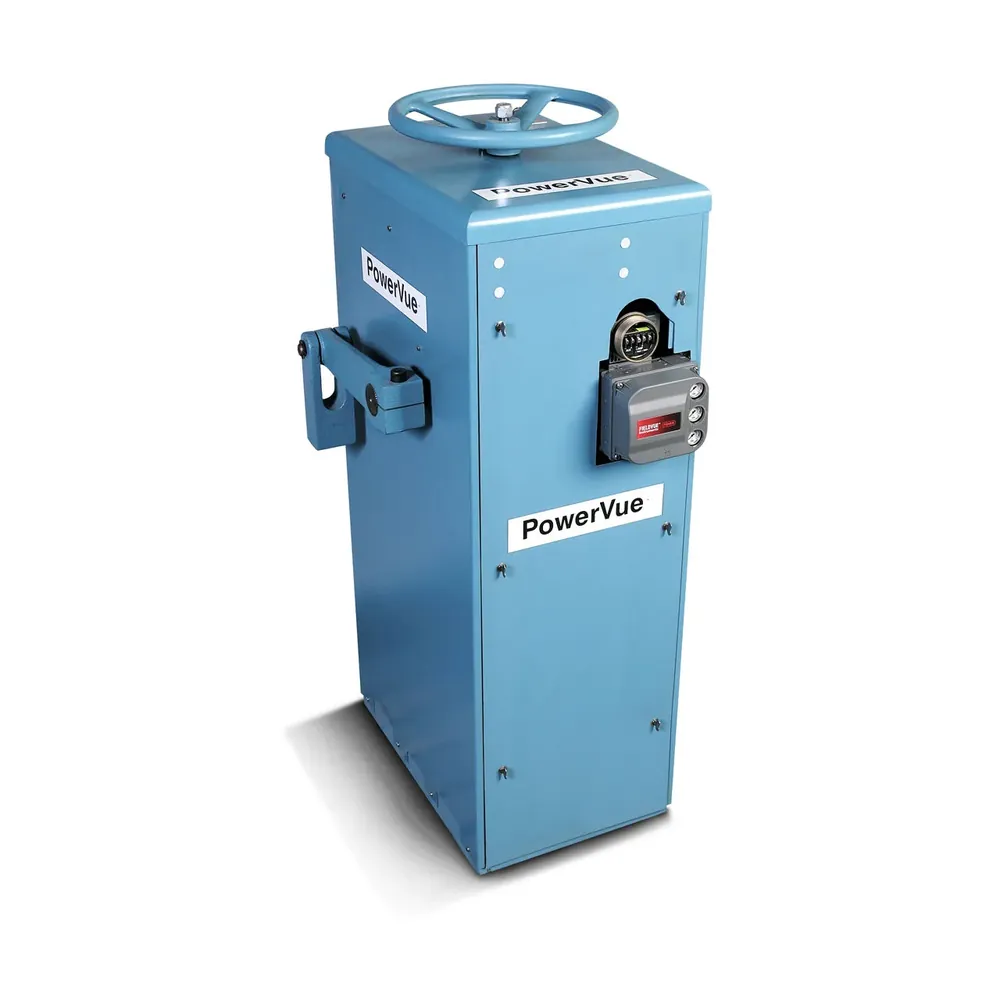

Rosemount PowerVUE Retrofit Kit
Quote on request
No online payment · add lines to RFQ BOM
PowerVUE retrofit for Hagan 4×5/8×14; DVC HART/FF; closed-loop. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Approvals
FM (via DVC options); CSA (via DVC options)
Hazardous area
Suitable for hazardous-area service with FM/CSA IS DVC arrangements per PDS
Product Form
PowerVUE Retrofit Kit (PVD468R family) for existing 4×5 and 8×14 Hagan torque actuators
Control Electronics
Fisher FieldVUE DVC5000/6000 digital valve controller electronics on legacy Hagan drive/frame
Input Signal
4–20 mA with HART or FOUNDATION fieldbus (integral I/P)
Positioning
Reliable closed-loop positioning with independent feedback transducer
Fits digital upgrade of existing Hagan actuators where you need a Rosemount PowerVUE retrofit kit—adds a DVC-class digital valve controller (HART or FOUNDATION Fieldbus options) to compatible torque-type 4×5 and 8×14 power positioners while retaining the Hagan actuator/frame for closed-loop positioning.
Key advantages
- Scope — Retrofit for compatible Hagan 4×5 / 8×14
- Controller — DVC digital valve controller class
- Protocols — HART or FOUNDATION Fieldbus options
- Options — Air-fail lock; limit switches; 4–20 mA feedback
- Benefit — Closed-loop positioning on existing frame
Typical applications
- Boiler damper digital upgrades.
- Fan damper modernization.
- Hagan positioner digitization.
Selection guide
- 4×5 vs 8×14 kit
- HART vs Fieldbus
- Feedback / fail options
Common mistakes
- Ordering for thrust-type when not supported.
- Ignoring air supply quality.
- Skipping linkage calibration.
When to RFQ / what to tell us
- Base positioner type, protocol, options.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 42118 |
| Brand | Rosemount |
| Model | PowerVUE Retrofit Kit |
| Product type | Positioner Retrofit |
| Type | PowerVUE digital retrofit for Hagan 4×5 / 8×14 power positioners |
| Controller | DVC digital valve controller class (HART / FOUNDATION Fieldbus options) |
| Scope | Retains Hagan actuator/frame; adds closed-loop positioning |
| Options | Air-fail lock; limit switches; optional 4–20 mA position feedback |
| Note | Retrofit kits for compatible torque-type 4×5 and 8×14 units |
Documents
FAQ
Q: What does it retrofit? A: Compatible Hagan 4×5 and 8×14 torque-type units.
Q: Protocols? A: HART or FOUNDATION Fieldbus options.
Q: What should I send for a quote? A: Base unit/protocol, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Approvals | FM (via DVC options); CSA (via DVC options) |
| Hazardous area | Suitable for hazardous-area service with FM/CSA IS DVC arrangements per PDS |
| Product Form | PowerVUE Retrofit Kit (PVD468R family) for existing 4×5 and 8×14 Hagan torque actuators |
| Control Electronics | Fisher FieldVUE DVC5000/6000 digital valve controller electronics on legacy Hagan drive/frame |
| Input Signal | 4–20 mA with HART or FOUNDATION fieldbus (integral I/P) |
| Positioning | Reliable closed-loop positioning with independent feedback transducer |
| Actuator Type | Double-acting piston (no vanes); optional fail-in-place on loss of air; manual operator |
| Torque Range Platform | Platform torque offerings typically 400–4,600 ft-lb depending on frame size |
| Repeatability | ±0.5% of full stroke or better (PowerVUE platform) |
| Air Supply | Operating ~45–100 psig typical; mechanical air lock option on loss of plant air |
| Temperature Limit | Ambient limits per DVC/PDS (typ. with/without heater options) |
| Unit Weight | Retrofit electronics/hardware add-on; full 4×5 actuator ~80 lb (36 kg) reference |
| Special Features | Upgrade path retaining Hagan pneumatic drive/frame; no full actuator replacement required |
