Setra SRMD Room Monitoring Display

Fits local display of room pressure and related environmental signals in pharmacies, isolation rooms, and clean spaces where a Setra SRMD room monitoring display is specified.

Key advantages

Room monitoring display — Local indication of room pressure and related environmental parameters.
~1 in illuminated LCD — Single or dual display options.
Sensor-agnostic inputs — 0–5 VDC or 0–10 VDC analog inputs.
24 VAC/DC — Flush stainless / metallic faceplate style for critical spaces.

Typical applications

Pharmacy and clean-room local room-pressure displays.
Isolation rooms needing flush faceplate monitoring.
Panels that already have 0–5 / 0–10 VDC sensor signals to show.

Selection guide

Type — Room monitoring display for room pressure / environmental parameters.
Display — About 1 in illuminated LCD characters; single or dual display options.
Inputs — Sensor-agnostic 0–5 VDC or 0–10 VDC analog inputs.
Calibration option — Available calibrated with Setra humidity/temperature sensors.
Power — 24 VAC/DC supply.
Mounting — Wall / room monitoring mount; flush stainless / metallic faceplate style.

Common mistakes

Expecting a built-in pressure transducer — SRMD is a display; sensors are separate (0–5 / 0–10 VDC inputs).
Leaving single vs dual display blank.
Ignoring 24 VAC/DC supply availability at the room panel.
Ordering without stating whether calibrated Setra humidity/temperature sensors are required.
Assuming flush faceplate fit without room-side cutout dimensions on the RFQ.

When to RFQ / what to tell us

Single vs dual display, input type (0–5 vs 0–10 VDC), and parameters to show (pressure / RH / temperature).
Whether calibrated Setra humidity/temperature sensors are included.
Quantity, ship-to, and faceplate/mounting notes.

Request a Quote · Get selection help

Specs

Spec	Value
SKU	42221
Brand	Setra
Model	SRMD
Product type	roommonitoringdisplay
Type	Setra SRMD room monitoring display for room pressure / environmental parameters
Display	About 1 in illuminated LCD characters; single or dual display options
Inputs	Sensor-agnostic 0–5 VDC or 0–10 VDC analog inputs
Calibration option	Available calibrated with Setra humidity/temperature sensors
Power	24 VAC/DC supply
Protection	Room-side flush stainless / metallic faceplate style monitoring display
Mounting	Wall / room monitoring mount for critical spaces
Purpose	Local display of room pressure and related environmental signals for pharmacies, isolation rooms and clean spaces

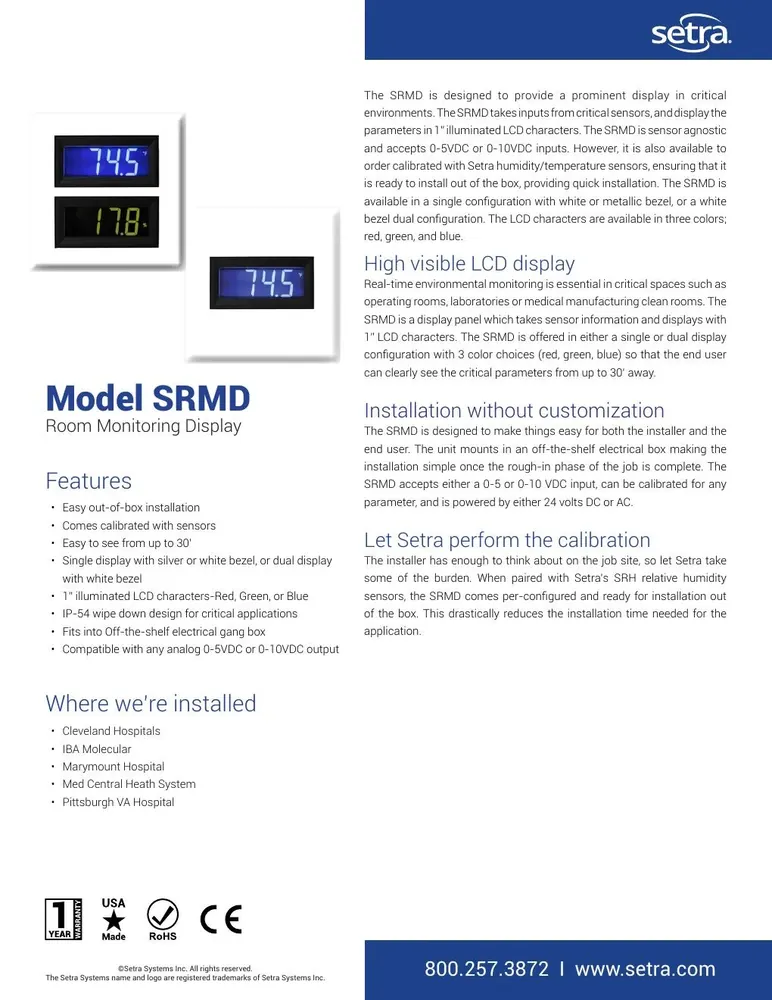

Document	Setra Model SRMD data sheet + installation/operation manual (setra.com)

Documents

Setra SRMD datasheet (PDF)

FAQ

Q: Does SRMD include a pressure sensor? A: No — it is a monitoring display with 0–5 / 0–10 VDC analog inputs; sensors are separate.

Q: What power does it need? A: 24 VAC/DC supply.

Q: What should I send for a quote? A: Single/dual, input type, sensors yes/no, quantity. Compatible with systems using Setra SRMD — we do not claim authorized-dealer status.
