AW-Lake

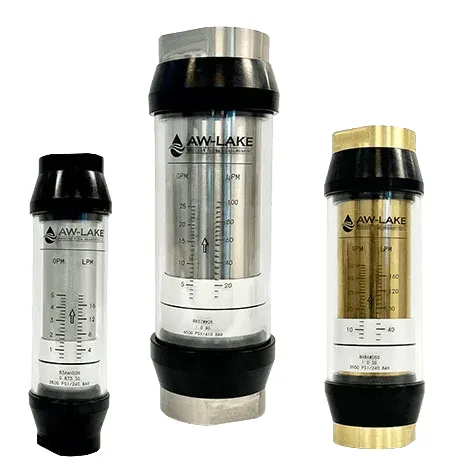

AW-Lake Variable Area Flow Monitors
Quote on request
No online payment · add lines to RFQ BOM
Inline VA flow monitors; ~0.1–150 GPM; ±2% FS; to 6000 PSIG SS. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
±2% of full scale typical (Basic VA)
Mounting
Inline; any orientation with proper support
Type
Basic inline liquid variable-area flow meter / monitor (Lake Monitors lineage)
Flow Ranges
Approx. 0.1–150 GPM depending on series/port size
Pressure
Up to 3,500 PSIG aluminum/brass; up to 6,000 PSIG stainless steel
Materials
Aluminum, brass, or stainless steel body options
Fits inline liquid flow indication where you need an AW-Lake / Lake Monitors basic variable-area flow meter covering about 0.1–150 GPM with ±2% full scale typical accuracy and aluminum, brass, or stainless bodies.
Key advantages
- Flow — About 0.1–150 GPM by series/port size
- Accuracy — ±2% of full scale typical (Basic VA)
- Pressure — To 3,500 PSIG Al/brass; to 6,000 PSIG stainless
- Materials — Aluminum, brass, or stainless steel body options
- Indication — Direct-reading scale; optional switches/transmitters
Typical applications
- Hydraulic oil flow monitoring.
- Cooling-water visual flow.
- Inline VA with optional switch points.
Selection guide
- Port size / GPM band
- Body material — Al vs brass vs SS
- Switches/transmitters — Alarm need
- Viscosity — Oil vs water-based
Common mistakes
- Ignoring viscosity effects on scale.
- Exceeding body pressure rating.
- Wrong port size for flow band.
When to RFQ / what to tell us
- Port size, GPM, material, switches.
- Quantity and ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 31073 |
| Brand | AW-Lake |
| Model | Variable Area Flow Monitors |
| Product type | Variable Area Flow Meter |
| Type | Basic inline liquid variable-area flow meter / monitor (Lake Monitors lineage) |
| Flow ranges | Approx. 0.1–150 GPM depending on series/port size |
| Accuracy | ±2% of full scale typical (Basic VA) |
| Pressure | Up to 3,500 PSIG aluminum/brass; up to 6,000 PSIG stainless steel |
| Materials | Aluminum, brass, or stainless steel body options |
| Media | Oils, water-based fluids, compatible liquids (viscosity considerations apply) |
| Indication | Direct-reading scale; optional switches / transmitters (Flow Rate Transmitter DS companion) |
Documents
FAQ
Q: Accuracy? A: ±2% of full scale typical (Basic VA).
Q: SS pressure? A: Up to about 6,000 PSIG stainless class.
Q: What should I send for a quote? A: Port/GPM/material, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | ±2% of full scale typical (Basic VA) |
| Mounting | Inline; any orientation with proper support |
| Type | Basic inline liquid variable-area flow meter / monitor (Lake Monitors lineage) |
| Flow Ranges | Approx. 0.1–150 GPM depending on series/port size |
| Pressure | Up to 3,500 PSIG aluminum/brass; up to 6,000 PSIG stainless steel |
| Materials | Aluminum, brass, or stainless steel body options |
| Media | Oils, water-based fluids, compatible liquids (viscosity considerations apply) |
| Indication | Direct-reading scale; optional switches / transmitters (Flow Rate Transmitter DS companion) |
| Application | Pump performance, hydraulic circuits, cooling loops, lubrication monitoring |
| Document | VA-Basic Data Sheet BASDS16 (+ Flow Rate Transmitter FLOWTRANSDS16) |
| Options | Switching / electronic flow-rate transmitter variants for remote monitoring |
