Badger Meter

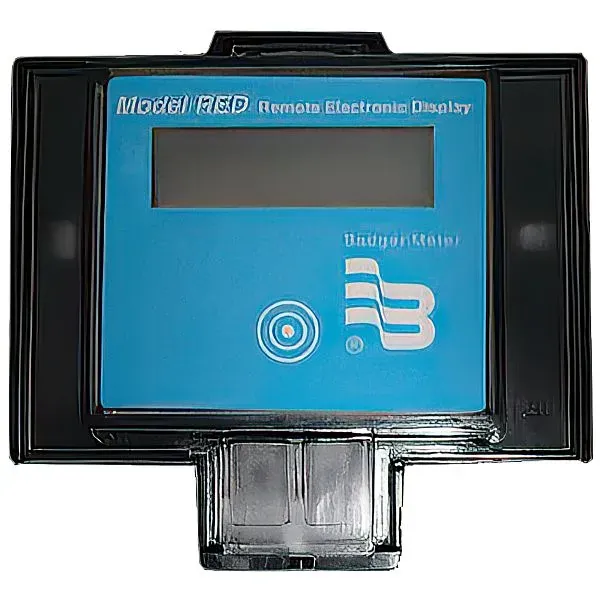

Badger Meter HR-RED High Resolution Remote Electronic Display
Quote on request
No online payment · add lines to RFQ BOM
Badger HR-RED: remote encoder display; to 9 digits; −4…140 °F; 10-year battery. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Function
Battery-powered high-resolution remote electronic display for encoder meters
Encoder Compatibility
HR-E, HR-E LCD, HR-E LCD 4-20, E-Series Ultrasonic meters
Display Resolution
Matches encoder output up to 9 digits; LCD 8 characters, 0.25 in high
Operating Temperature
−4 to 140°F (−20 to 60°C)
Battery Life
10 years calculated; 3.6 V lithium (encapsulated)
Dimensions
L 4.651 in × H 4.325 in × W 2.017 in (118 × 110 × 51 mm)
Fits remote meter reading where you need a Badger Meter HR-RED. Battery-powered high-resolution remote electronic display for HR-E, HR-E LCD, HR-E LCD 4-20 and E-Series Ultrasonic encoders, matching encoder output up to 9 digits, operating −4 to 140 °F with calculated 10-year 3.6 V lithium battery life.
Key advantages
- Compatibility — HR-E / HR-E LCD / E-Series Ultrasonic
- Resolution — Up to 9 digits; 8-char LCD
- Temperature — −4 to 140 °F
- Battery — 10 years calculated; 3.6 V Li
- Form — Remote electronic display
Typical applications
- Remote meter pits.
- Indoor remote registers.
- Encoder meter displays.
Selection guide
- Encoder type
- Cable length
- Mount location
Common mistakes
- Incompatible encoder.
- Ambient above 140 °F.
- Damaging encapsulated battery.
When to RFQ / what to tell us
- Encoder type.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 47558 |
| Brand | Badger Meter |
| Model | HR-RED |
| Product type | Remote Meter Display |
| Function | Battery-powered high-resolution remote electronic display for encoder meters |
| Encoder compatibility | HR-E, HR-E LCD, HR-E LCD 4-20, E-Series Ultrasonic meters |
| Display resolution | Matches encoder output up to 9 digits; LCD 8 characters, 0.25 in high |
| Operating temperature | −4 to 140°F (−20 to 60°C) |
| Battery life | 10 years calculated; 3.6 V lithium (encapsulated) |
| Dimensions | L 4.651 in × H 4.325 in × W 2.017 in (118 × 110 × 51 mm) |
Documents
FAQ
Q: Battery life? A: 10 years calculated.
Q: Digits? A: Up to 9.
Q: What should I send for a quote? A: Encoder type, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Function | Battery-powered high-resolution remote electronic display for encoder meters |
| Encoder Compatibility | HR-E, HR-E LCD, HR-E LCD 4-20, E-Series Ultrasonic meters |
| Display Resolution | Matches encoder output up to 9 digits; LCD 8 characters, 0.25 in high |
| Operating Temperature | −4 to 140°F (−20 to 60°C) |
| Battery Life | 10 years calculated; 3.6 V lithium (encapsulated) |
| Dimensions | L 4.651 in × H 4.325 in × W 2.017 in (118 × 110 × 51 mm) |
| Activation | Acoustic TAP switch; anti-tamper indicator on disconnect |
| Construction | High-impact thermoplastic, weather and UV resistant, environmentally sealed |
