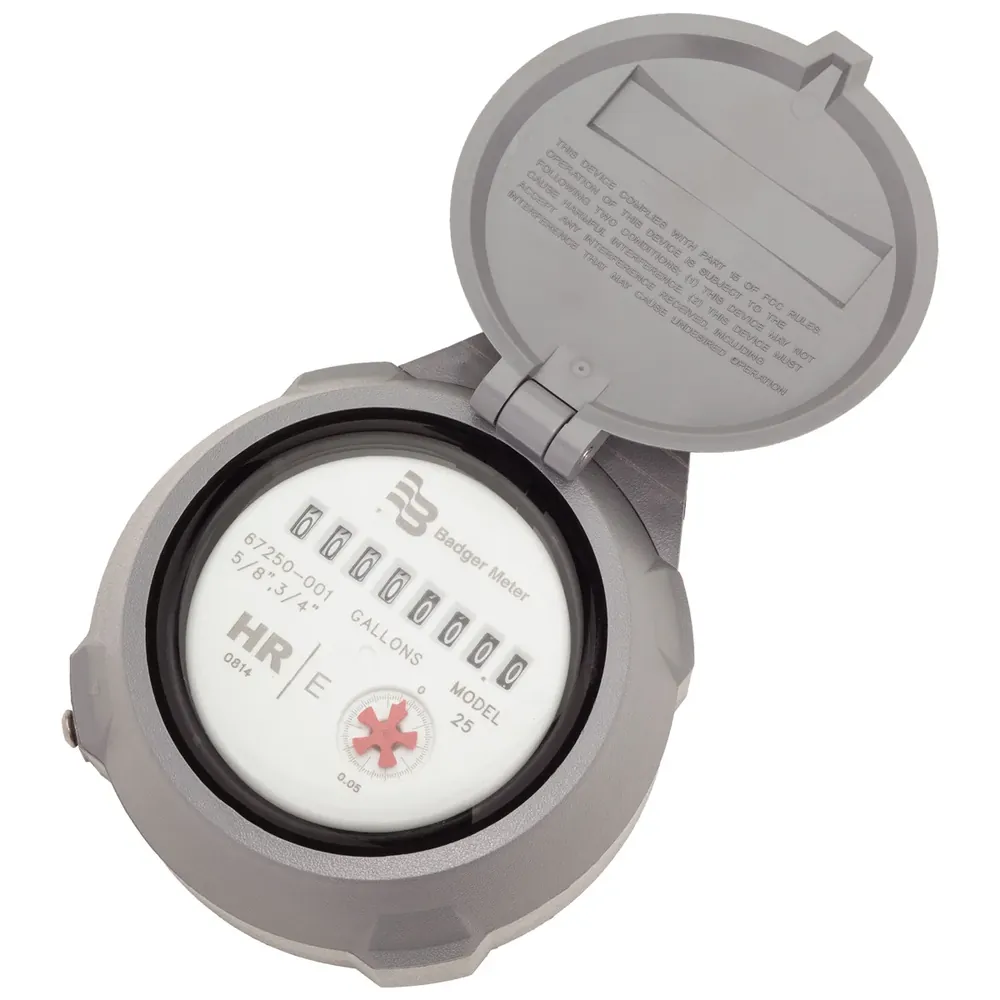

Badger Meter Recordall Registration and Endpoint
Quote on request
No online payment · add lines to RFQ BOM
Badger HR-E encoder register; 8-wheel; 3-wire AMR/AMI; −40…140 °F; AWWA C707. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Display
8-wheel mechanical odometer; 8-dial resolution for AMR/AMI
Register Type
HR-E High Resolution Encoder for Recordall Disc/Turbo/Compound/Combo/Fire meters
Signal Type
3-wire synchronous AMR/AMI (red=clock/power, black=ground, green=data); 2-wire Touch option
Operating Temperature
−40…140 °F (−40…60 °C)
Sealing
Permanently sealed; helium leak <10⁻⁶ cc/s; AWWA C707; pit-submersible
Connectivity
In-line Twist Tight connector, flying lead, prewired endpoint, or terminal-screw indoor version
Fits Recordall meter encoding and AMR/AMI where you need Badger Meter Recordall registration/endpoint hardware. HR-E high-resolution encoder for Disc/Turbo/Compound/Combo/Fire meters with 8-wheel mechanical odometer and 8-dial AMR/AMI resolution, 3-wire synchronous signal (or 2-wire Touch), operating −40…140 °F, permanently sealed to AWWA C707 with pit-submersible construction.
Key advantages
- Register — HR-E high-resolution encoder
- Display — 8-wheel odometer; 8-dial AMR/AMI
- Signal — 3-wire sync (2-wire Touch option)
- Temp — −40…140 °F
- Sealing — AWWA C707; pit-submersible
Typical applications
- AMR/AMI endpoints.
- Recordall register upgrades.
- Pit meter encoding.
Selection guide
- Meter family match
- 3-wire vs Touch
- Endpoint radio
Common mistakes
- Wrong meter family.
- Wiring color mix-up.
- Temp outside −40…140 °F.
When to RFQ / what to tell us
- Meter/register options.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 48942 |
| Brand | Badger Meter |
| Model | Recordall Registration and Endpoint |
| Product type | Meter Register |
| Register type | HR-E High Resolution Encoder for Recordall Disc/Turbo/Compound/Combo/Fire meters |
| Display | 8-wheel mechanical odometer; 8-dial resolution for AMR/AMI |
| Signal type | 3-wire synchronous AMR/AMI (red=clock/power, black=ground, green=data); 2-wire Touch option |
| Operating temperature | −40…140 °F (−40…60 °C) |
| Sealing | Permanently sealed; helium leak <10⁻⁶ cc/s; AWWA C707; pit-submersible |
Documents
FAQ
Q: Signal? A: 3-wire sync AMR/AMI (Touch option).
Q: Temp? A: −40…140 °F.
Q: What should I send for a quote? A: Meter/register options, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Display | 8-wheel mechanical odometer; 8-dial resolution for AMR/AMI |
| Register Type | HR-E High Resolution Encoder for Recordall Disc/Turbo/Compound/Combo/Fire meters |
| Signal Type | 3-wire synchronous AMR/AMI (red=clock/power, black=ground, green=data); 2-wire Touch option |
| Operating Temperature | −40…140 °F (−40…60 °C) |
| Sealing | Permanently sealed; helium leak <10⁻⁶ cc/s; AWWA C707; pit-submersible |
| Connectivity | In-line Twist Tight connector, flying lead, prewired endpoint, or terminal-screw indoor version |
| Endpoint Family | ORION and GALAXY AMR/AMI endpoints (Cellular LTE-M/NB-IoT NaaS options) |
| Power Source | Encoder powered externally by endpoint/reading system |
| Surge Immunity | IEC 1000-4-2 / IEC 1000-4-4 electrical surge/transient immunity |
| Construction | Thermoplastic gearing/shroud; glass dome sealed to corrosion-resistant metal bottom |
| Application | Recordall registration + AMI/AMR endpoint connectivity for water utilities |
| Reading Method | Optical sensing of number-wheel positions (no electromechanical contacts) |
