Rosemount

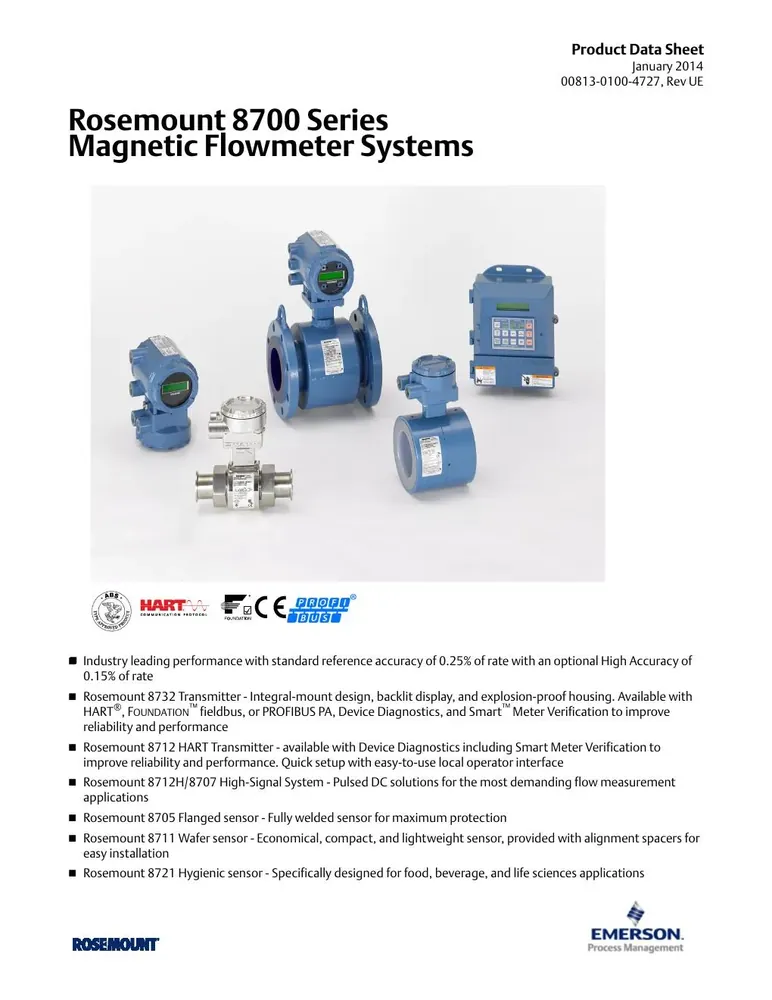

Rosemount 8700 Series Magnetic Flow Meter
Quote on request
No online payment · add lines to RFQ BOM
Rosemount 8700: magmeter ±0.25% rate (±0.15% opt); conductive liquids. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
Standard reference accuracy 0.25% of rate; optional high accuracy 0.15% of rate
Mounting
Integral or remote transmitter; wafer alignment spacers included with 8711
Product Family
Rosemount 8700 Series magnetic flowmeter systems (8705/8707/8711/8721 sensors + 8732/8712/8712H transmitters)
Sensors
8705 flanged ½–36 in; 8707 high-signal flanged 3–36 in; 8711 wafer 0.15–8 in; 8721 hygienic ½–4 in (3-A/EHEDG)
Transmitters
8732 integral (HART/FF/PROFIBUS PA); 8712 remote HART; 8712H high-signal with 8707
Outputs
4–20 mA HART, FOUNDATION fieldbus, PROFIBUS PA; advanced diagnostics + Smart Meter Verification
Fits conductive liquid flow measurement where you need a Rosemount 8700 Series magnetic flow meter—standard accuracy about ±0.25% of rate (±0.15% optional high accuracy) for conductive liquids with flanged, wafer, high-signal, and hygienic sensor options.
Key advantages
- Accuracy — ±0.25% of rate standard; ±0.15% optional
- Medium — Conductive liquids
- Sensors — 8705 flanged; 8711 wafer; 8707 high-signal; 8721 hygienic class
- Transmitters — 8712 / 8732; HART / FF / PA options class
- Platform — Rosemount 8700 Series system
Typical applications
- Process liquid flow.
- Slurry-capable mag applications.
- Plant utility conductive flows.
Selection guide
- Sensor style
- Accuracy option
- Transmitter protocol
Common mistakes
- Non-conductive fluids.
- Empty-pipe without detection setup.
- Wrong liner/electrode materials.
When to RFQ / what to tell us
- Size, sensor, transmitter.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 40543 |
| Brand | Rosemount |
| Model | 8700 Series Magnetic Flow Meter |
| Product type | Magnetic Flow Meter |
| Type | Magnetic flowmeter system — Rosemount 8700 Series |
| Accuracy | ±0.25% of rate standard; ±0.15% optional high accuracy |
| Medium | Conductive liquids |
| Sensors | 8705 flanged; 8711 wafer; 8707 high-signal; 8721 hygienic options |
| Transmitters | 8712 HART; 8732; FOUNDATION fieldbus / PROFIBUS PA options |
Documents
FAQ
Q: Standard accuracy? A: ±0.25% of rate.
Q: Sensor styles? A: Flanged, wafer, high-signal, hygienic class.
Q: What should I send for a quote? A: Size/sensor/TX, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | Standard reference accuracy 0.25% of rate; optional high accuracy 0.15% of rate |
| Mounting | Integral or remote transmitter; wafer alignment spacers included with 8711 |
| Product Family | Rosemount 8700 Series magnetic flowmeter systems (8705/8707/8711/8721 sensors + 8732/8712/8712H transmitters) |
| Sensors | 8705 flanged ½–36 in; 8707 high-signal flanged 3–36 in; 8711 wafer 0.15–8 in; 8721 hygienic ½–4 in (3-A/EHEDG) |
| Transmitters | 8732 integral (HART/FF/PROFIBUS PA); 8712 remote HART; 8712H high-signal with 8707 |
| Outputs | 4–20 mA HART, FOUNDATION fieldbus, PROFIBUS PA; advanced diagnostics + Smart Meter Verification |
| Technology | Pulsed DC magnetic flow; high-signal pulsed DC for slurries/high solids (8707/8712H) |
| Diagnostics | Empty pipe, electronics temperature, coil/transmitter faults, reverse flow; advanced grounding/wiring and high process noise suites |
| Liner Electrodes | Multiple liner and electrode materials per Material Selection Guide 00816-0100-3033 |
| Applications | Conductive liquids and slurries; hygienic food/beverage/life-sciences (8721) |
