Rosemount

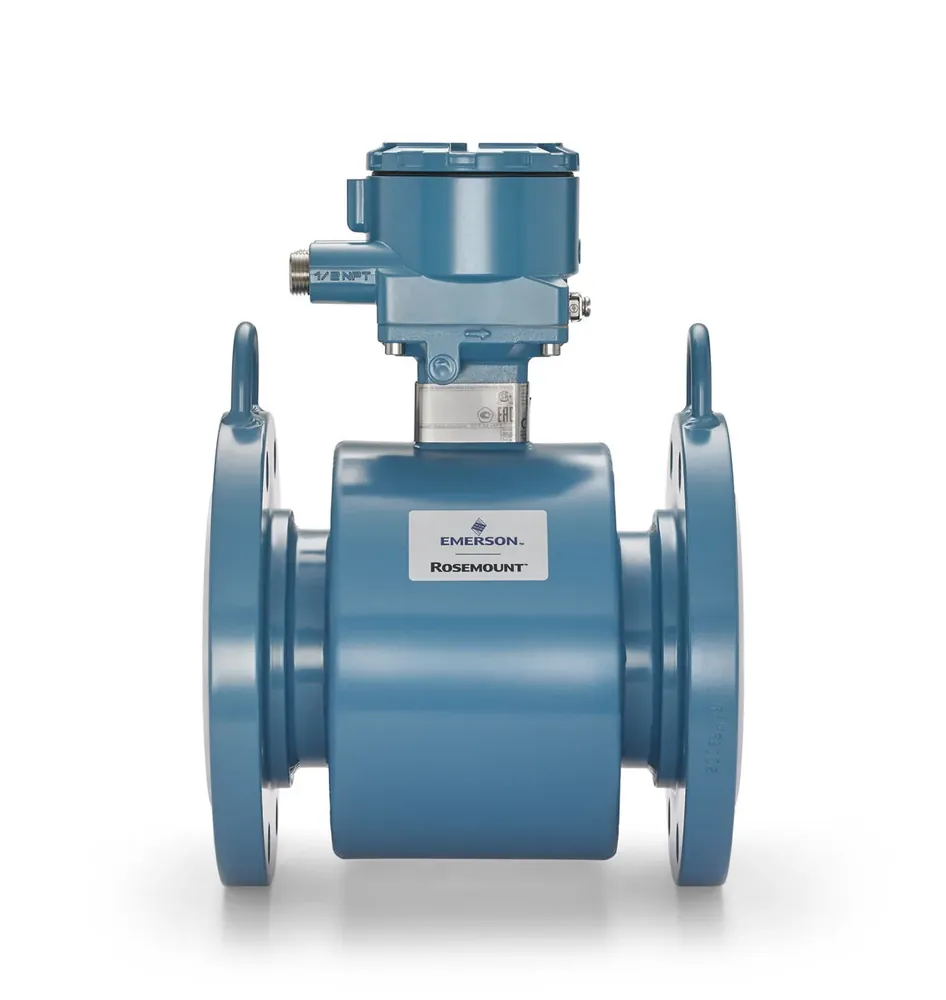

Rosemount 8700 Series Magmeter Transmitters
Quote on request
No online payment · add lines to RFQ BOM
8700 TX: 8712 HART; 8732 integral; FF/PA options; ±0.25% system. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
±0.25% of rate standard; ±0.15% optional high accuracy
Type
Magnetic flowmeter system — Rosemount 8700 Series (sensors + transmitters)
Sensors
8705 flanged; 8711 wafer; 8707 high-signal; 8721 hygienic options
Transmitters
8712 HART; 8732 integral-mount; FOUNDATION fieldbus / PROFIBUS PA options
Diagnostics
Device Diagnostics incl. Smart Meter Verification (transmitter-dependent)
Technology
Pulsed DC magnetic flow measurement
Fits magmeter transmitter selection on the Rosemount 8700 platform—8712 HART wall-mount and 8732 integral-mount class transmitters with FOUNDATION fieldbus / PROFIBUS PA options, delivering system accuracy about ±0.25% of rate (±0.15% optional).
Key advantages
- Transmitters — 8712 HART; 8732 integral-mount
- Protocols — HART; FOUNDATION fieldbus; PROFIBUS PA options
- Accuracy — ±0.25% of rate standard; ±0.15% optional
- Sensors — Pairs with 8705/8711/8707/8721
- Platform — Rosemount 8700 Series
Typical applications
- Remote wall-mount TX rooms.
- Integral sensor/TX skids.
- Fieldbus mag networks.
Selection guide
- 8712 vs 8732
- Protocol
- LOI / display
Common mistakes
- Protocol mismatch to DCS.
- Cable length limits ignored.
- Wrong sensor-TX pairing.
When to RFQ / what to tell us
- TX model, protocol, sensor.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 40546 |
| Brand | Rosemount |
| Model | 8700 Series |
| Product type | Magnetic Flow Meter |
| Type | Magnetic flowmeter system — Rosemount 8700 Series (sensors + transmitters) |
| Accuracy | ±0.25% of rate standard; ±0.15% optional high accuracy |
| Medium | Conductive liquids / slurries |
| Sensors | 8705 flanged; 8711 wafer; 8707 high-signal; 8721 hygienic options |
| Transmitters | 8712 HART; 8732 integral-mount; FOUNDATION fieldbus / PROFIBUS PA options |
Documents
FAQ
Q: HART TX? A: 8712 HART class.
Q: Integral? A: 8732 integral-mount class.
Q: What should I send for a quote? A: TX/protocol/sensor, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | ±0.25% of rate standard; ±0.15% optional high accuracy |
| Type | Magnetic flowmeter system — Rosemount 8700 Series (sensors + transmitters) |
| Sensors | 8705 flanged; 8711 wafer; 8707 high-signal; 8721 hygienic options |
| Transmitters | 8712 HART; 8732 integral-mount; FOUNDATION fieldbus / PROFIBUS PA options |
| Diagnostics | Device Diagnostics incl. Smart Meter Verification (transmitter-dependent) |
| Technology | Pulsed DC magnetic flow measurement |
| Construction | Fully welded sealed coil housing options (8705) |
| Line Sizes | From ~0.15 in (4 mm) wafer up through large flanged sizes (see PDS tables) |
| Document | 8700 Series PDS 00813-0100-4727 (dl-rmt-8700-73474) |
