Rosemount

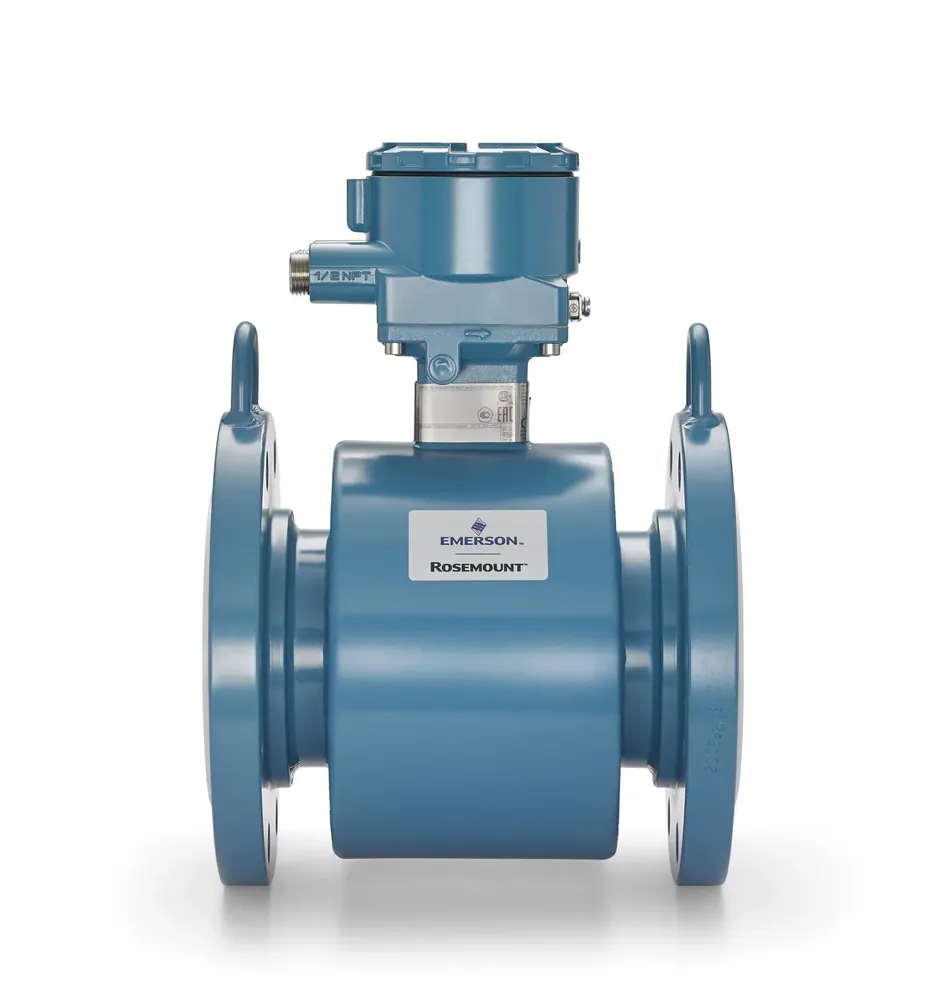

Rosemount 8700 Series Process Magmeter
Quote on request
No online payment · add lines to RFQ BOM
Rosemount 8700 process magmeter for conductive liquids/slurries; ±0.25%. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
±0.25% of rate standard; ±0.15% optional high accuracy
Type
Magnetic flowmeter system — Rosemount 8700 Series (sensors + transmitters)
Sensors
8705 flanged; 8711 wafer; 8707 high-signal; 8721 hygienic options
Transmitters
8712 HART; 8732 integral-mount; FOUNDATION fieldbus / PROFIBUS PA options
Diagnostics
Device Diagnostics incl. Smart Meter Verification (transmitter-dependent)
Technology
Pulsed DC magnetic flow measurement
Fits process and slurry conductive flow loops where you need a Rosemount 8700 Series magmeter system—±0.25% of rate standard accuracy (±0.15% optional) with flanged/wafer/high-signal/hygienic sensors and HART or fieldbus transmitters.
Key advantages
- Accuracy — ±0.25% / optional ±0.15% of rate
- Medium — Conductive liquids and slurries
- Sensors — 8705 / 8711 / 8707 / 8721 class
- I/O — HART / FF / PA transmitter options
- Use — Process mag metering
Typical applications
- Chemical process lines.
- Slurry transfer metering.
- Batch conductive dosing.
Selection guide
- Size / velocity
- Liner for slurry
- High-signal sensor
Common mistakes
- Insulating deposits on electrodes.
- Empty pipe faults.
- Abrasive liner wear ignored.
When to RFQ / what to tell us
- Process fluid, size, materials.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 40547 |
| Brand | Rosemount |
| Model | 8700 Series |
| Product type | Magnetic Flow Meter |
| Type | Magnetic flowmeter system — Rosemount 8700 Series (sensors + transmitters) |
| Accuracy | ±0.25% of rate standard; ±0.15% optional high accuracy |
| Medium | Conductive liquids / slurries |
| Sensors | 8705 flanged; 8711 wafer; 8707 high-signal; 8721 hygienic options |
| Transmitters | 8712 HART; 8732 integral-mount; FOUNDATION fieldbus / PROFIBUS PA options |
Documents
FAQ
Q: Slurry capable? A: Conductive slurries supported on appropriate sensors/liners.
Q: Accuracy? A: ±0.25% of rate standard.
Q: What should I send for a quote? A: Fluid/size/materials, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | ±0.25% of rate standard; ±0.15% optional high accuracy |
| Type | Magnetic flowmeter system — Rosemount 8700 Series (sensors + transmitters) |
| Sensors | 8705 flanged; 8711 wafer; 8707 high-signal; 8721 hygienic options |
| Transmitters | 8712 HART; 8732 integral-mount; FOUNDATION fieldbus / PROFIBUS PA options |
| Diagnostics | Device Diagnostics incl. Smart Meter Verification (transmitter-dependent) |
| Technology | Pulsed DC magnetic flow measurement |
| Construction | Fully welded sealed coil housing options (8705) |
| Line Sizes | From ~0.15 in (4 mm) wafer up through large flanged sizes (see PDS tables) |
| Document | 8700 Series PDS 00813-0100-4727 (dl-rmt-8700-73474) |
