Rosemount

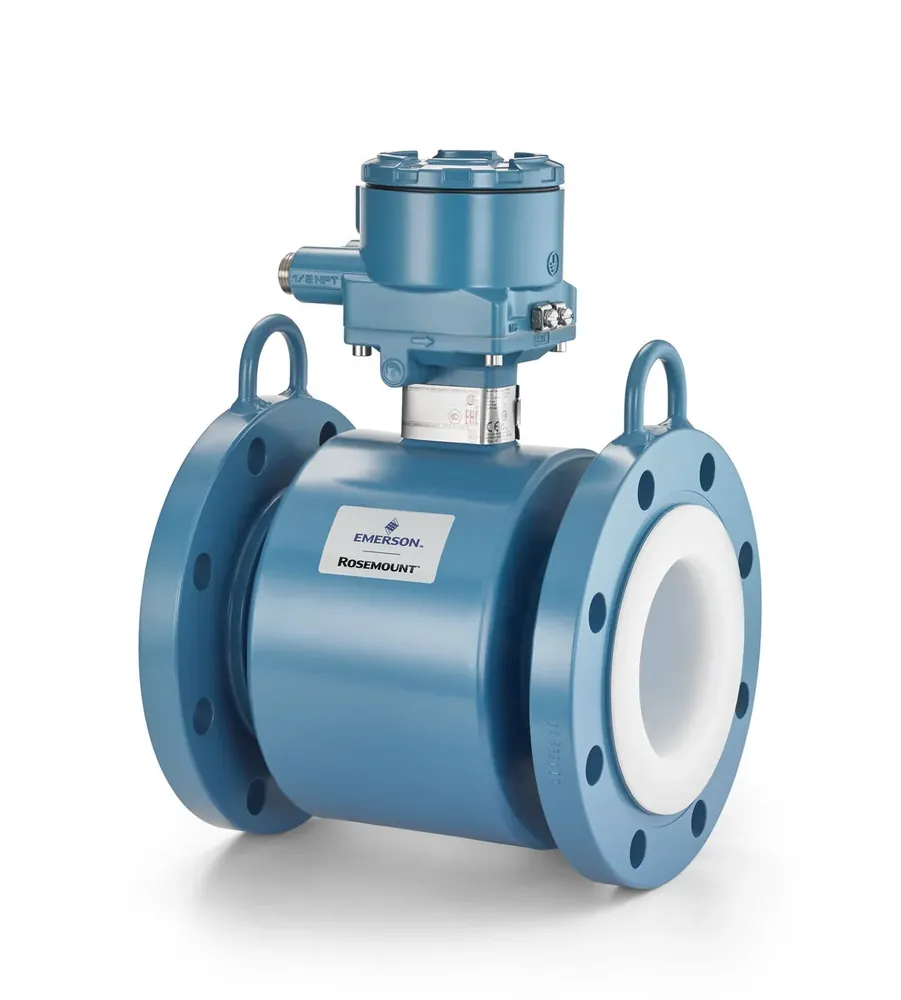

Rosemount 8700M Magmeter Communications Options
Quote on request
No online payment · add lines to RFQ BOM
8700M: HART, FF, Modbus, EtherNet/IP, I.S. outputs; ±0.25%. RFQ protocol.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
±0.25% of rate standard; ±0.15% optional high accuracy
Type
Magnetic flowmeter system — Rosemount 8700 Series (sensors + transmitters)
Sensors
8705 flanged, 8711 wafer, 8721 hygienic (and related 8700M platform models)
Transmitters
8712EM wall-mount; 8732EM integral/remote with LOI options
Outputs
4–20 mA HART; FOUNDATION Fieldbus; Modbus RS-485; EtherNet/IP; I.S. outputs
Diagnostics
Process diagnostics and SMART Meter Verification options
Fits networked magmeter installs on the Rosemount 8700M platform—4–20 mA HART, FOUNDATION Fieldbus, Modbus RS-485, EtherNet/IP, and I.S. output options with ±0.25% of rate standard accuracy (±0.15% optional).
Key advantages
- Outputs — 4–20 mA HART; FF; Modbus RS-485; EtherNet/IP; I.S.
- Transmitters — 8712EM wall-mount; 8732EM integral/remote with LOI
- Sensors — 8705 / 8711 / 8721 class
- Accuracy — ±0.25% / optional ±0.15% of rate
- Platform — Rosemount 8700M
Typical applications
- EtherNet/IP skids.
- Modbus RS-485 multi-drop.
- HART/FF process networks.
Selection guide
- Protocol
- 8712EM vs 8732EM
- I.S. need
Common mistakes
- Mixing protocols on one segment wrongly.
- Ignoring I.S. entity params.
- LOI language/config missed.
When to RFQ / what to tell us
- Protocol, sensor, size.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 40549 |
| Brand | Rosemount |
| Model | 8700 Series Magnetic Flow Meter |
| Product type | Magnetic Flow Meter |
| Type | Magnetic flowmeter system — Rosemount 8700 Series (sensors + transmitters) |
| Accuracy | ±0.25% of rate standard; ±0.15% optional high accuracy |
| Sensors | 8705 flanged, 8711 wafer, 8721 hygienic (and related 8700M platform models) |
| Transmitters | 8712EM wall-mount; 8732EM integral/remote with LOI options |
| Outputs | 4–20 mA HART; FOUNDATION Fieldbus; Modbus RS-485; EtherNet/IP; I.S. outputs |
Documents
FAQ
Q: EtherNet/IP? A: Available on 8700M output options.
Q: Accuracy? A: ±0.25% of rate standard.
Q: What should I send for a quote? A: Protocol/size, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | ±0.25% of rate standard; ±0.15% optional high accuracy |
| Type | Magnetic flowmeter system — Rosemount 8700 Series (sensors + transmitters) |
| Sensors | 8705 flanged, 8711 wafer, 8721 hygienic (and related 8700M platform models) |
| Transmitters | 8712EM wall-mount; 8732EM integral/remote with LOI options |
| Outputs | 4–20 mA HART; FOUNDATION Fieldbus; Modbus RS-485; EtherNet/IP; I.S. outputs |
| Diagnostics | Process diagnostics and SMART Meter Verification options |
| Construction | All-welded hermetically sealed flanged sensor (8705) for moisture protection |
| Line Sizes | Sensor family covers approx. 0.15 in to 36 in class (model dependent) |
| Applications | Conductive liquids; water/wastewater, chemical, food & beverage, mining slurries |
| Document | Rosemount 8700M PDS 00813-0100-4444 + 8700 Series sensor manual |
