Amprobe

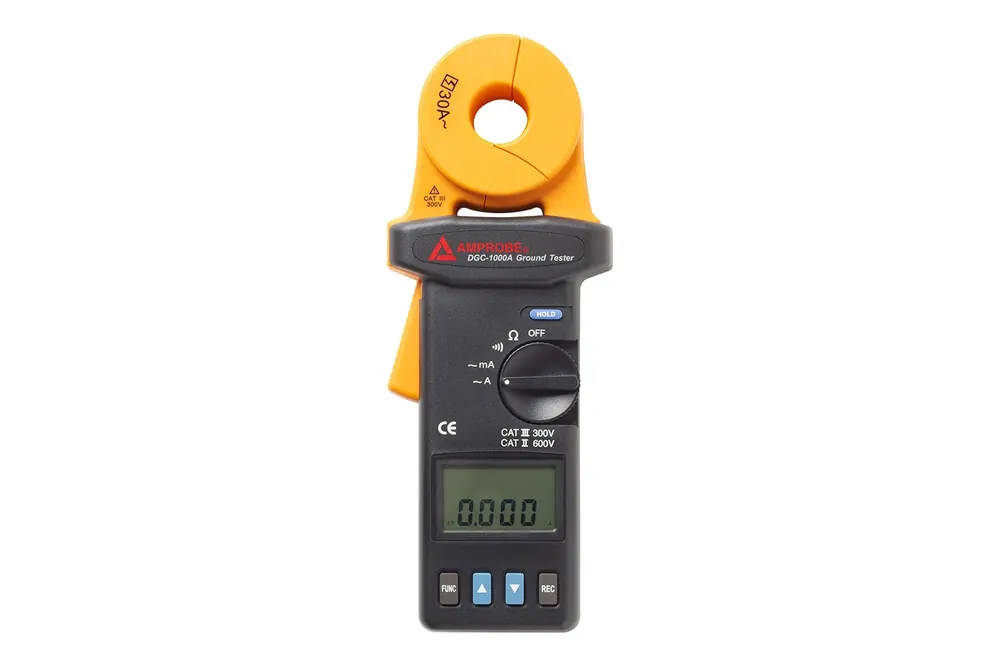

Amprobe DGC-1000A Clamp-on Ground Resistance Tester
Quote on request
No online payment · add lines to RFQ BOM
Clamp ground; 0.025–1500 Ω; True-RMS leakage; CAT III. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Display
4-digit 9999-count LCD; auto-ranging
Ground Resistance Range
0.025 to 1,500 Ω
True Rms Current
True-RMS current / leakage current measurement
Conductor Size
Approx. 0.9 in (2.3 cm); jaw opening ≈ 1.06 in (2.7 cm)
Data Logging
116 records; individual data point recording
Alarms
User-selectable high/low ohm audible alarms; continuity beep < 40.00 Ω
Fits clamp-on ground checks on multi-grounded systems where you need an Amprobe DGC-1000A covering 0.025–1,500 Ω with True-RMS leakage current and CAT III 300 V / CAT II 600 V safety.
Key advantages
- Resistance — 0.025 to 1,500 Ω
- Current — True-RMS current / leakage measurement
- Jaw — Conductor ~0.9 in; jaw opening ≈1.06 in
- Memory — 116 records; Hi/Lo ohm alarms; continuity <40 Ω beep
- Safety — CAT III 300 V / CAT II 600 V; 9 V power
Typical applications
- Multi-point ground system surveys.
- Clamp ground without auxiliary spikes.
- Leakage current spot checks.
Selection guide
- Jaw size — Rod/conductor OD
- Alarms — Hi/Lo setpoints
- Logging — 116-record need
- Vs stake method — Multi-grounded only
Common mistakes
- Using on single-point grounds without loop path.
- Dirty jaw faces.
- Ignoring noise indication.
When to RFQ / what to tell us
- Accessories; quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 31302 |
| Brand | Amprobe |
| Model | DGC-1000A Clamp-on Ground Resistance Tester |
| Product type | Clamp-on Ground Resistance Tester |
| Ground resistance range | 0.025 to 1,500 Ω |
| True RMS current | True-RMS current / leakage current measurement |
| Conductor size | Approx. 0.9 in (2.3 cm); jaw opening ≈ 1.06 in (2.7 cm) |
| Display | 4-digit 9999-count LCD; auto-ranging |
| Data logging | 116 records; individual data point recording |
| Alarms | User-selectable high/low ohm audible alarms; continuity beep < 40.00 Ω |
| Safety | Category III 300 V and Category II 600 V |
| Overload protection | 100 A continuous; 200 A for 5 s |
| Power | 1× 9 V battery; auto power-off ~4–6 minutes |
Documents
FAQ
Q: Resistance range? A: 0.025 to 1,500 Ω.
Q: Spike-free? A: Clamp-on method for multi-grounded systems.
Q: What should I send for a quote? A: Accessories, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Display | 4-digit 9999-count LCD; auto-ranging |
| Ground Resistance Range | 0.025 to 1,500 Ω |
| True Rms Current | True-RMS current / leakage current measurement |
| Conductor Size | Approx. 0.9 in (2.3 cm); jaw opening ≈ 1.06 in (2.7 cm) |
| Data Logging | 116 records; individual data point recording |
| Alarms | User-selectable high/low ohm audible alarms; continuity beep < 40.00 Ω |
| Safety | Category III 300 V and Category II 600 V |
| Overload Protection | 100 A continuous; 200 A for 5 s |
| Power | 1× 9 V battery; auto power-off ~4–6 minutes |
| Operating Temperature | 14 °F to 122 °F (−10 °C to 50 °C per datasheet table; <85 % RH) |
