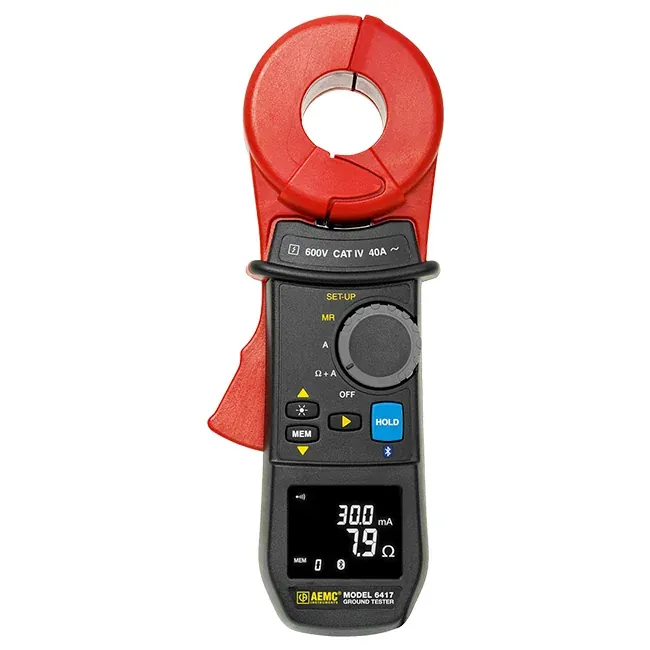

AEMC Model 6417 Clamp-On Ground Tester
Quote on request
No online payment · add lines to RFQ BOM
6417: clamp-on ~0.01–1500 Ω; 0.2 mA–40 A; Bluetooth/DataView. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Clamp-on ground resistance auto-ranging ~0.01–1500 Ω; current 0.2 mA–40 A; loop inductance; touch voltage
Accuracy
Ground resistance ±(1.5% Reading +0.01 Ω) on lowest ranges; see OEM DS 2141-02 table for full ranges
Output
OLED display + Bluetooth to DataView; alarms for Ω/V/A (no analog process output)
Supply
4× 1.5 V AA alkaline or NiMH; ~12 h / ~1440×30 s tests typical
Protection
IP40
Ambient temperature
Operating −20 to +55 °C; storage −30 to +70 °C; RH up to 90% @ 40 °C
Fits clamp-on ground loop checks where you need an AEMC 6417—auto-ranging ~0.01–1500 Ω ground resistance, current 0.2 mA–40 A, with OLED display and Bluetooth to DataView.
Key advantages
- Clamp-on Ω — Auto-ranging ~0.01–1500 Ω
- Current — 0.2 mA–40 A
- Extras — Loop inductance; touch voltage
- Accuracy class — ±(1.5% Reading +0.01 Ω) on lowest ranges
- Connectivity — Bluetooth to DataView; Ω/V/A alarms
Typical applications
- Multi-grounded system clamp checks.
- Quick ground-loop surveys.
- In-service earthing inspections.
Selection guide
- Jaw size vs conductor
- Alarm setpoints
- Spare AA / NiMH
Common mistakes
- Clamping around paralleled paths that falsify the loop.
- Expecting 3-pole stake results from clamp-only.
- Ignoring jaw contamination.
When to RFQ / what to tell us
- Quantity, accessories.
- Ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 34666 |
| Brand | AEMC |
| Model | Model 6417 |
| Product type | Ground Resistance Tester |
| Measuring range | Clamp-on ground resistance auto-ranging ~0.01–1500 Ω; current 0.2 mA–40 A; loop inductance; touch voltage |
| Accuracy | Ground resistance ±(1.5% Reading +0.01 Ω) on lowest ranges; see OEM DS 2141-02 table for full ranges |
| Output signal | OLED display + Bluetooth to DataView; alarms for Ω/V/A (no analog process output) |
| Supply voltage | 4× 1.5 V AA alkaline or NiMH; ~12 h / ~1440×30 s tests typical |
| IP rating | IP40 |
Documents
FAQ
Q: Ω range? A: About 0.01–1500 Ω clamp-on.
Q: Bluetooth? A: Yes — to DataView.
Q: What should I send for a quote? A: Quantity, accessories, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Clamp-on ground resistance auto-ranging ~0.01–1500 Ω; current 0.2 mA–40 A; loop inductance; touch voltage |
| Accuracy | Ground resistance ±(1.5% Reading +0.01 Ω) on lowest ranges; see OEM DS 2141-02 table for full ranges |
| Output | OLED display + Bluetooth to DataView; alarms for Ω/V/A (no analog process output) |
| Supply | 4× 1.5 V AA alkaline or NiMH; ~12 h / ~1440×30 s tests typical |
| Protection | IP40 |
| Ambient temperature | Operating −20 to +55 °C; storage −30 to +70 °C; RH up to 90% @ 40 °C |
| Display | OLED, 152 segments (48×39 mm) |
| Approvals | IEC 61010-1; EN 61010-2-30; EN 61010-2-32; 600 V CAT IV; Pollution Degree 2; EN 61326-1 |
| Mounting | Handheld clamp; 55 × 95 × 262 mm; 935 g with battery |
| Sensor type | Clamp-on ground resistance tester (no auxiliary rods / no disconnect) |
| Notes | Cat. #2141.02. Specs from aemc.com Model 6417 + datasheet 2141-02. Prices not imported. No Instrumart. |
| Test Frequency | Selectable 50 / 60 / 128 / 2083 Hz for impedance calculation |
| Memory | 2000 measurements |
| Jaw Opening | 35 mm (1.38 in) max |
