AEMC

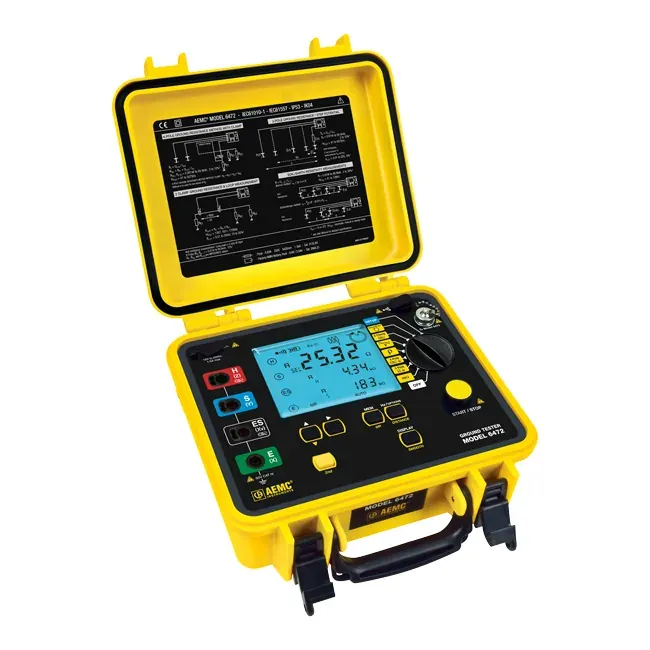

AEMC Model 6472 Ground Resistance Tester
Quote on request
No online payment · add lines to RFQ BOM
6472: 3/4-point, soil, 2-clamp, bond; DataView USB; NiMH. RFQ kit.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
3-point 0.09 Ω–99.9 kΩ; 4-point/soil 0.01–99.9 kΩ (ρ max 999 kΩm); 2-clamp 0.1–500 Ω; bond 0.02 Ω–99.99 kΩ
Accuracy
±(2% reading + 1 ct) typical @ 128 Hz (earth); bond ±(2% + 2 cts)
Output
Digital instrument; optically isolated USB to DataView software
Supply
9.6 V rechargeable NiMH pack; 110/220 V external charger (18 Vdc 1.9 A)
Protection
IP53 with cover closed
Ambient temperature
Operating 0 to +45 °C (32 to 113 °F); storage −40 to +70 °C
Fits advanced earth and soil testing where you need an AEMC 6472—3-point to 99.9 kΩ, 4-point/soil resistivity, 2-clamp 0.1–500 Ω, and bond measurements with optical USB to DataView.
Key advantages
- 3-point — 0.09 Ω–99.9 kΩ
- 4-point / soil — 0.01–99.9 kΩ (ρ max 999 kΩm)
- 2-clamp — 0.1–500 Ω
- Bond — 0.02 Ω–99.99 kΩ
- Link — Optically isolated USB to DataView
Typical applications
- Utility ground grids.
- Soil resistivity engineering.
- Bond continuity with earth methods.
Selection guide
- Clamp accessories
- Lead/reel kits
- Charger region 110/220 V
Common mistakes
- Wrong frequency/method for noisy sites.
- Incomplete rod arrays for soil ρ.
- Cover open (IP53 with cover closed).
When to RFQ / what to tell us
- Kit/clamps, charger voltage.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 34668 |
| Brand | AEMC |
| Model | Model 6472 |
| Product type | Ground Resistance Tester |
| Measuring range | 3-point 0.09 Ω–99.9 kΩ; 4-point/soil 0.01–99.9 kΩ (ρ max 999 kΩm); 2-clamp 0.1–500 Ω; bond 0.02 Ω–99.99 kΩ |
| Accuracy | ±(2% reading + 1 ct) typical @ 128 Hz (earth); bond ±(2% + 2 cts) |
| Output signal | Digital instrument; optically isolated USB to DataView software |
| Supply voltage | 9.6 V rechargeable NiMH pack; 110/220 V external charger (18 Vdc 1.9 A) |
| IP rating | IP53 with cover closed |
Documents
FAQ
Q: 2-clamp range? A: 0.1–500 Ω.
Q: Soil resistivity? A: Yes — 4-point soil method supported.
Q: What should I send for a quote? A: Kit contents, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | 3-point 0.09 Ω–99.9 kΩ; 4-point/soil 0.01–99.9 kΩ (ρ max 999 kΩm); 2-clamp 0.1–500 Ω; bond 0.02 Ω–99.99 kΩ |
| Accuracy | ±(2% reading + 1 ct) typical @ 128 Hz (earth); bond ±(2% + 2 cts) |
| Output | Digital instrument; optically isolated USB to DataView software |
| Supply | 9.6 V rechargeable NiMH pack; 110/220 V external charger (18 Vdc 1.9 A) |
| Protection | IP53 with cover closed |
| Ambient temperature | Operating 0 to +45 °C (32 to 113 °F); storage −40 to +70 °C |
| Display | Digital ground-tester UI |
| Approvals | IEC 61010-1, EN 61557, 50 V CAT IV, Pollution Degree 2, EN 61326-1 |
| Sensor type | Multi-function digital ground resistance tester (FOP, selective, 2-clamp, soil resistivity, bond, step/touch) |
| Test Voltage | Selectable 10 / 16 / 32 / 60 Vrms |
| Test Frequency | 41–5078 Hz automatic or selectable; 2-clamp auto 1611 Hz |
| Memory | 512 test results (64 KB) |
| Dimensions | 10.7 × 9.80 × 5.12 in (272 × 248 × 130 mm); 7 lb (3.2 kg) with battery |
