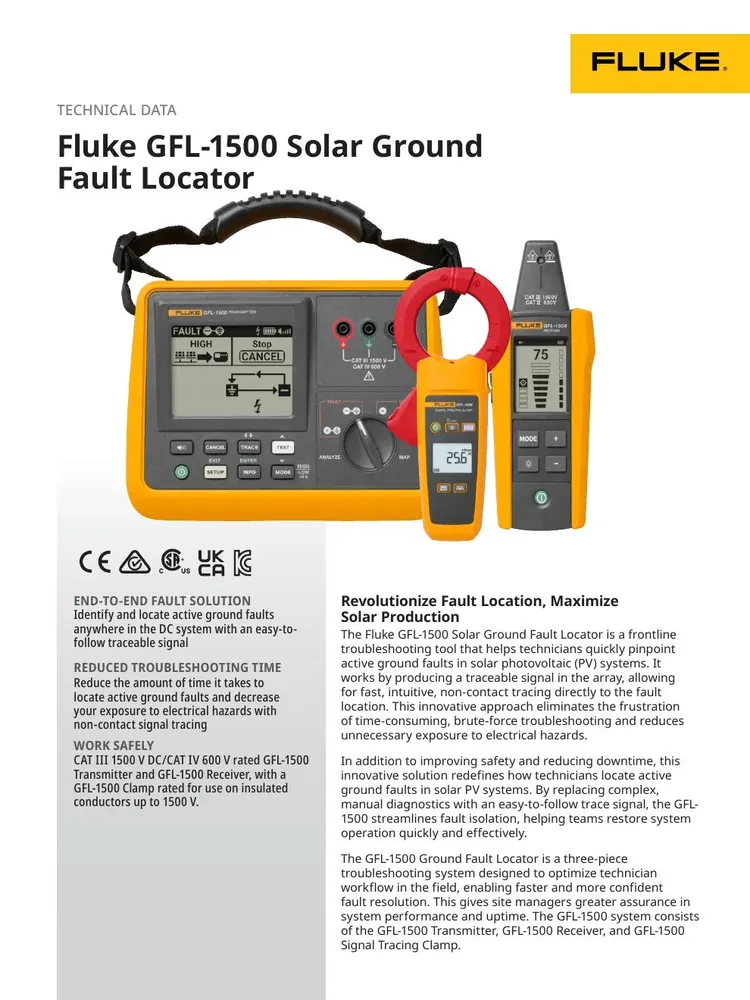

Fluke GFL-1500 Solar Ground Fault Locator
Quote on request
No online payment · add lines to RFQ BOM
GFL-1500: PV ground fault kit to 1500 V DC; FAULT/OPEN/MAP/ANALYZE. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Function
Identify and locate active ground faults in PV DC systems with traceable signal
System Voltage
CAT III 1500 V DC / CAT IV 600 V class (OEM technical data)
Components
Transmitter, receiver, and signal-tracing clamp (kit)
Application
Solar / photovoltaic ground-fault troubleshooting
Safety Category
CAT III 1500 V DC / CAT IV 600 V
Documentation
GFL-1500 technical data + users manual (media.fluke.com)
Fits utility-scale PV ground-fault tracing where you need a Fluke GFL-1500—transmitter, receiver, and signal-tracing clamp kit rated to 1500 V DC / 600 V AC with FAULT, OPEN, MAP, and ANALYZE functions.
Key advantages
- Voltage — Up to 1500 V DC / 600 V AC; CAT III 1500 V DC / CAT IV 600 V
- Kit — Transmitter + receiver + tracing clamp
- Functions — FAULT, OPEN, MAP, ANALYZE
- Signals — FAULT/MAP 6.25 kHz; OPEN 32.764 kHz
- Clamp — To 150 mA AC, 0.1 mA res; conductor Ø to 61 mm
Typical applications
- PV string ground-fault location.
- Open-circuit wire tracing.
- Array string mapping.
Selection guide
- Array vs unit mode
- MC4 / lead sets
- Site voltage class
Common mistakes
- Using on non-insulated conductors with clamp.
- Ignoring high-capacitance ANALYZE limits.
- Wrong CAT rating assumptions.
When to RFQ / what to tell us
- Kit completeness.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 40216 |
| Brand | Fluke |
| Model | GFL-1500 |
| Product type | Solar Ground Fault Locator |
| Type | Solar PV ground fault locator kit (transmitter + receiver + clamp) |
| Voltage | Up to 1500 V DC / 600 V AC; CAT III 1500 V DC / CAT IV 600 V AC |
| Functions | FAULT, OPEN, MAP, ANALYZE |
| Freq | FAULT/MAP 6.25 kHz; OPEN 32.764 kHz |
| Clamp | Non-contact clamp; AC current to 150 mA, 0.1 mA resolution; max conductor Ø 61 mm |
Documents
FAQ
Q: Max DC? A: 1500 V DC.
Q: What's in the kit? A: Transmitter, receiver, and signal-tracing clamp.
Q: What should I send for a quote? A: Quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Function | Identify and locate active ground faults in PV DC systems with traceable signal |
| System Voltage | CAT III 1500 V DC / CAT IV 600 V class (OEM technical data) |
| Components | Transmitter, receiver, and signal-tracing clamp (kit) |
| Application | Solar / photovoltaic ground-fault troubleshooting |
| Safety Category | CAT III 1500 V DC / CAT IV 600 V |
| Documentation | GFL-1500 technical data + users manual (media.fluke.com) |
| Form Factor | Portable field kit (transmitter/receiver/clamp) |
| Family | Fluke GFL-1500 |
