Endress+Hauser

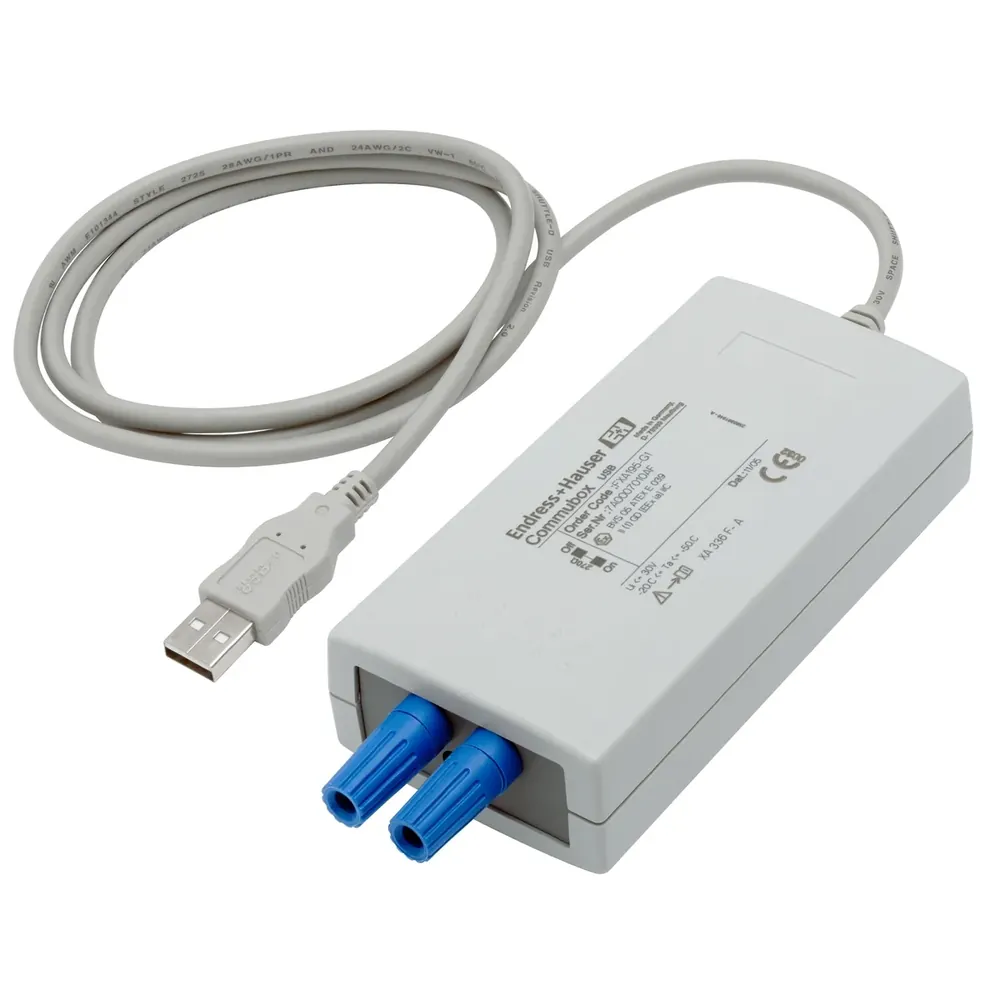

Endress+Hauser Commubox FXA195 HART-USB Interface
Quote on request
No online payment · add lines to RFQ BOM
Intrinsically safe HART↔USB modem; FieldCare ready. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
HART↔USB interface modem (not a sensor)
Output
USB signal per USB specification to PC; HART signal per HART specification to field devices
Supply
USB powered 5 V DC; current consumption < 20 mA
Process connection
USB to PC; polarity-independent 4 mm adapter bushing to transmitter (+ 4 mm/2 mm adapter cable supplied)
Housing
143 × 60 × 30 mm housing
Protection
Per EN 60529 housing design (see TI)
Fits PC commissioning of HART transmitters where you need an intrinsically safe Commubox FXA195 USB modem for FieldCare / ReadWin with switchable communication resistor.
Key advantages
- Function — HART↔USB interface modem (not a sensor)
- Power — USB powered 5 V DC; <20 mA consumption
- Connection — Polarity-independent 4 mm bushing; 4 mm/2 mm adapter cable supplied
- Software — FieldCare / ReadWin support; switchable communication resistor
- Approvals — ATEX, FM, CSA, CE; reactionless connection to SIL 2 4–20 mA loops (IEC 61508)
Typical applications
- Laptop configuration of HART field devices in the shop or field.
- Intrinsically safe loops needing a listed USB modem.
- FieldCare projects replacing older RS-232 HART modems.
Selection guide
- Loop type — Confirm HART on 4–20 mA; resistor switch as needed
- Hazardous area — Match ATEX/FM/CSA certificate to the area
- PC — USB host with FieldCare/ReadWin
- Cabling — Use supplied polarity-independent adapters
Common mistakes
- Treating FXA195 as a WirelessHART gateway — it is a wired USB HART modem.
- Forcing polarity on the 4 mm bushing — connection is polarity-independent.
- Skipping the communication resistor when the loop has none.
When to RFQ / what to tell us
- Hazardous-area certificate need.
- PC OS / FieldCare version.
- Quantity and ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 141059 |
| Brand | Endress+Hauser |
| Model | Commubox FXA195 |
| Product type | HART USB Interface |
| Function | HART↔USB interface modem (not a sensor) |
| Output / signals | USB signal per USB specification to PC; HART signal per HART specification to field devices |
| Supply | USB powered 5 V DC; current consumption < 20 mA |
| Connection | USB to PC; polarity-independent 4 mm adapter bushing to transmitter (+ 4 mm/2 mm adapter cable supplied) |
| Ambient temperature | Operating −20…+50 °C; storage −40…+85 °C; humidity 0…95% non-condensing |
| Housing | 143 × 60 × 30 mm housing |
| Weight | approx. 200 g |
| Communication | HART; FieldCare / ReadWin support; switchable communication resistor |
Documents
FAQ
Q: Is it WirelessHART? A: No — Commubox FXA195 is a wired HART↔USB modem.
Q: How is it powered? A: USB 5 V DC from the PC; current consumption <20 mA.
Q: What should I send for a quote? A: Area approval need, software environment, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | HART↔USB interface modem (not a sensor) |
| Output | USB signal per USB specification to PC; HART signal per HART specification to field devices |
| Supply | USB powered 5 V DC; current consumption < 20 mA |
| Process connection | USB to PC; polarity-independent 4 mm adapter bushing to transmitter (+ 4 mm/2 mm adapter cable supplied) |
| Housing | 143 × 60 × 30 mm housing |
| Protection | Per EN 60529 housing design (see TI) |
| Ambient temperature | Operating −20…+50 °C; storage −40…+85 °C; humidity 0…95% non-condensing |
| Communication | HART; FieldCare / ReadWin support; switchable communication resistor |
| Approvals | ATEX (BVS 05 ATEX E 039); FM; CSA; CE; Reactionless connection to SIL 2 4…20 mA loops (IEC 61508) |
| Notes | Specs from Endress+Hauser TI00404F/04/EN (2011-11-23). Intrinsically safe Smart transmitter USB interface. |
| Weight | approx. 200 g |
