Fluke

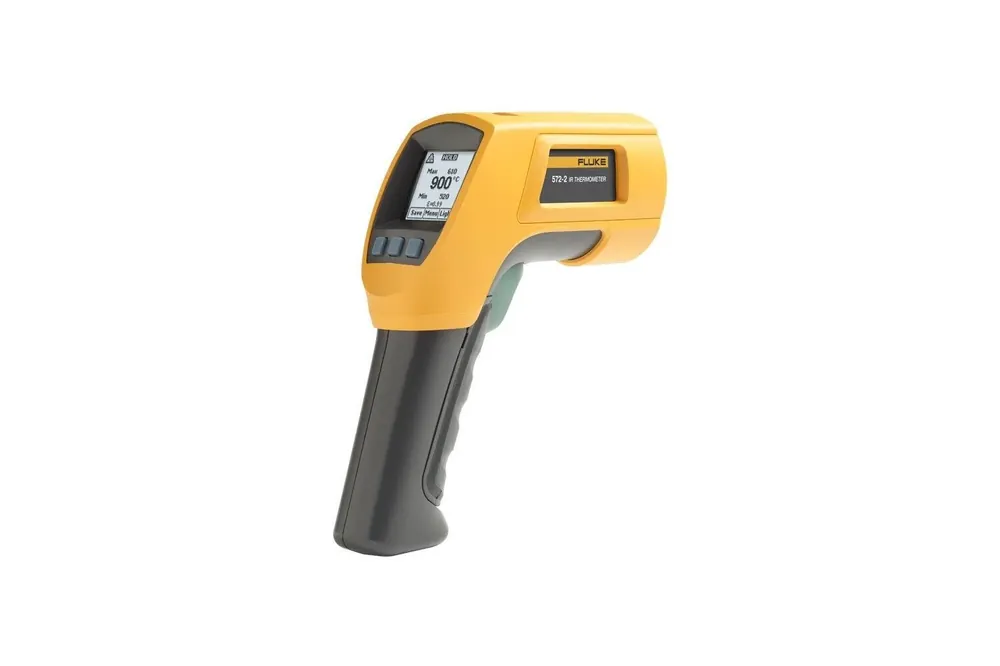

Fluke 572-2 High Temperature Infrared Thermometer
Quote on request
No online payment · add lines to RFQ BOM
Fluke 572-2: IR −30…900 °C; 60:1; Type K; ±1 °C/1%. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
IR −30 to 900 °C (−22 to 1652 °F); K-type contact input −270 to 1372 °C
Accuracy
IR ≥0 °C: ±1 °C or ±1% of reading (whichever greater); K-type ≥−40 °C: ±1% or 1 °C
Output
USB 2.0 PC interface; FlukeView Forms documenting software
Ambient temperature
Typical industrial handheld operation; dual-level backlight display
Approvals
CE
Distance To Spot
60:1 (90% energy); minimum spot 19 mm
Fits high-temperature non-contact checks where you need a Fluke 572-2—IR range −30 to 900 °C with 60:1 distance-to-spot, Type K contact input, and accuracy about ±1 °C or ±1% of reading above 0 °C.
Key advantages
- IR range — −30 to 900 °C (−22 to 1652 °F)
- D:S — 60:1; dual laser sighting
- Accuracy — ≥0 °C: ±1 °C or ±1% of reading
- Contact — Type K thermocouple input
- Logging — 99 points class
Typical applications
- Furnace / kiln surface checks.
- High-temp process spotting.
- Combined IR + Type K verification.
Selection guide
- Emissivity setup
- Type K probe
- vs lower-range 59 MAX+
Common mistakes
- Spot too large for target.
- Wrong emissivity.
- Ignoring steam/dust path.
When to RFQ / what to tell us
- Probe options.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 39652 |
| Brand | Fluke |
| Model | 572-2 |
| Product type | Infrared Thermometer |
| Type | High-temp IR thermometer (Fluke 572-2) |
| IR range | −30 to 900 °C (−22 to 1652 °F) |
| Accuracy | ≥0 °C: ±1 °C or ±1% of reading |
| D:S | 60:1 distance-to-spot; Type K contact input |
| Logging | 99 points class; dual laser sighting |
Documents
FAQ
Q: Max IR temp? A: 900 °C.
Q: D:S? A: 60:1.
Q: What should I send for a quote? A: Options/quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | IR −30 to 900 °C (−22 to 1652 °F); K-type contact input −270 to 1372 °C |
| Accuracy | IR ≥0 °C: ±1 °C or ±1% of reading (whichever greater); K-type ≥−40 °C: ±1% or 1 °C |
| Output | USB 2.0 PC interface; FlukeView Forms documenting software |
| Ambient temperature | Typical industrial handheld operation; dual-level backlight display |
| Approvals | CE |
| Distance To Spot | 60:1 (90% energy); minimum spot 19 mm |
| Spectral Response | 8–14 μm; response time <500 ms (95%) |
| Emissivity | Digitally adjustable 0.10–1.00 by 0.01 or built-in material table |
| Laser Sighting | Offset dual laser, output <1 mW |
| Data Logging | 99 data sets storage and review; MAX/MIN/DIF/AVG; Hi/Lo alarms |
| Power Supply | Two AA batteries; ~8 h laser+backlight on, ~100 h off at 100% duty |
| Weight | 0.322 kg (0.71 lb) |
| Special Features | Multi-language UI; trigger lock; tripod mount; K-type bead probe compatibility |
