Rotronic
Rotronic HygroGen2 Advanced Humidity Generator
Quote on request
No online payment · add lines to RFQ BOM
HygroGen2: 5–95 %RH (2–99 option); ±1.5 %RH unc. class; ±0.1 %RH stability. RFQ.

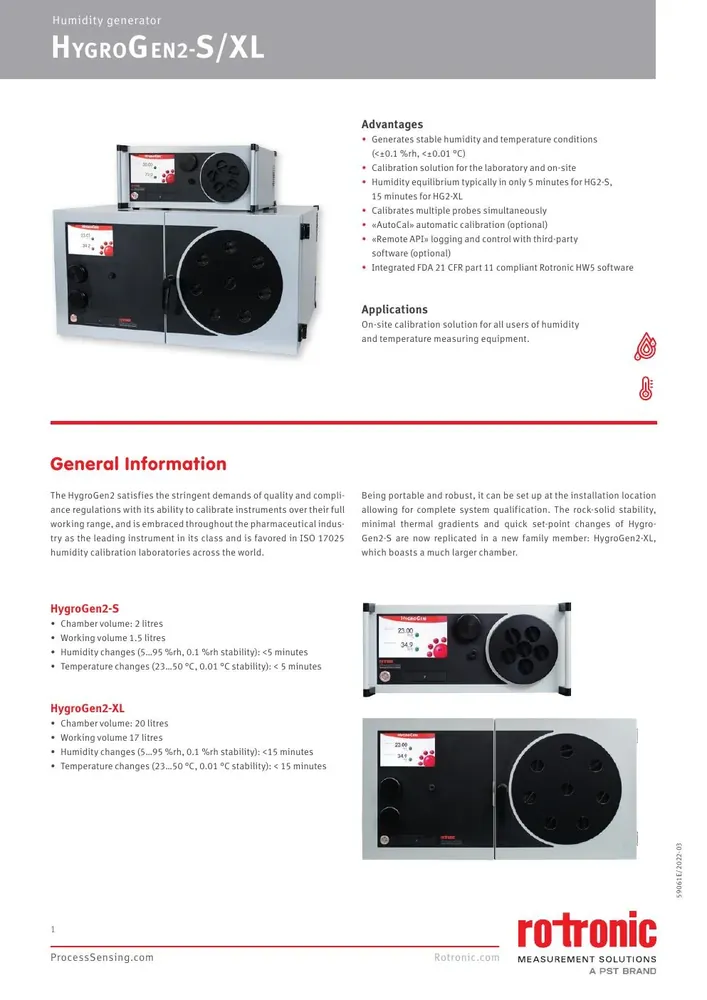

Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Approvals
CE EN 61010-1; UKCA; EMC EN 61326-1
Models
HG2-S (2 L) and HG2-XL (20 L)
Rh Generation Range
5–95 %rh standard; optional extension 2–99 %rh
Temperature Range
0–60 °C standard; optional extension −5–60 °C
Rh Stability
<±0.1 %rh
Temperature Stability
<±0.01 °C
Fits portable humidity calibration where you need a Rotronic HygroGen2 Advanced—humidity generator covering 5–95 %RH standard (2–99 %RH option) with typical calibration uncertainty about ±1.5 %RH (k=2) at 23 °C and stability better than ±0.1 %RH.
Key advantages
- Range — 5–95 %RH standard; 2–99 %RH option
- Uncertainty — Typical ±1.5 %RH (k=2) at 23 °C
- Stability — Better than ±0.1 %RH
- Platform — HygroGen2 Advanced humidity generator
- Use — Probe / transmitter humidity calibration
Typical applications
- Field humidity calibrations.
- Lab RH probe checks.
- Transmitter verification.
Selection guide
- Standard vs extended RH
- Probe ports
- Transport case
Common mistakes
- Ignoring warm-up.
- Overloading chamber.
- Skipping reference check.
When to RFQ / what to tell us
- Options, ports.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 40965 |
| Brand | Rotronic |
| Model | HygroGen2 Advanced Humidity Generator |
| Product type | Humidity Generator |
| Range | 5–95 %RH standard (2–99 %RH option) |
| Accuracy | Typical calibration uncertainty ±1.5 %RH (k=2) at 23 °C; stability better than ±0.1 %RH |
Documents
FAQ
Q: RH range? A: 5–95 %RH standard; 2–99 %RH option.
Q: Stability? A: Better than ±0.1 %RH.
Q: What should I send for a quote? A: Options/quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Approvals | CE EN 61010-1; UKCA; EMC EN 61326-1 |
| Models | HG2-S (2 L) and HG2-XL (20 L) |
| Rh Generation Range | 5–95 %rh standard; optional extension 2–99 %rh |
| Temperature Range | 0–60 °C standard; optional extension −5–60 °C |
| Rh Stability | <±0.1 %rh |
| Temperature Stability | <±0.01 °C |
| Equilibrium Time | HG2-S: RH step 5–95 %rh <5 min; HG2-XL <15 min (to 0.1 %rh stability) |
| Thermal Gradients | <±0.05 °C (15–50 °C); <±0.1 °C (5–60 °C) |
| Typical Calibration Uncertainty | ±1.5 %rh (k=2) at 23 °C; ±0.15 °C (k=2) 15–50 °C |
| Control Probe | HygroClip2 capacitive RH + Pt100; ±1.3 %rh (0–10 °C and 30–50 °C), ±1.8 %rh (50–60 °C) |
| Probe Capacity | HG2-S up to 6 door ports; HG2-XL up to 19 + internal shelves |
| Generation Method | Mixed flow desiccant drier + piezoelectric humidifier; Peltier with radial mixing fan |
| Power | 110–240 VAC 50/60 Hz; 3 A (240 V) / 6 A (110 V) |
| Size Weight | HG2-S: 13 kg, 45×41×21 cm; HG2-XL: 37 kg, 80×62×41 cm |
| Form Factor | Portable humidity/temperature calibration generator for lab and on-site |
