Kaye

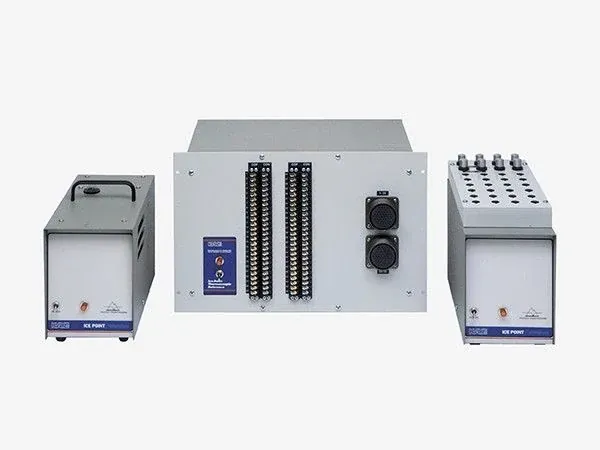

Kaye Ice Point Temperature Reference
Quote on request
No online payment · add lines to RFQ BOM
Kaye ice-point TC cold-junction reference (K140/K150/K170); 0 °C. RFQ model.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Type
Automatic ice-point thermocouple cold-junction reference (K140/K150/K170 family)
Reference Temperature
0 C
Ambient Operating Range
5 to 40 C
Long Term Drift
None
Stability K140
0.01 C typical / 0.025 C guaranteed
Total Instrument Error K140
0.02 C typical / 0.05 C max
Fits thermocouple cold-junction referencing where you need a Kaye automatic ice-point reference (K140/K150/K170 family)—holds 0 °C reference temperature with ambient operation about 5 to 40 °C and no long-term drift class for the ice point.
Key advantages
- Reference — 0 °C ice point
- Family — K140 / K150 / K170 class
- Ambient — About 5 to 40 °C operating
- Drift — None (long-term ice-point class)
- Use — TC cold-junction reference
Typical applications
- Lab TC calibration setups.
- Validation thermocouple referencing.
- Multi-channel TC panels.
Selection guide
- Channel count / model
- TC types
- Rack vs benchtop
Common mistakes
- Ambient outside 5–40 °C.
- Wrong TC type wiring.
- Expecting dry-block heat/cool.
When to RFQ / what to tell us
- Model/channels.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 39549 |
| Brand | Kaye |
| Model | Ice Point Temperature Reference |
| Product type | Temperature Reference |
| Type | Automatic ice-point thermocouple cold-junction reference (K140/K150/K170 family) |
| Reference temperature | 0 C |
| Ambient operating range | 5 to 40 C |
| Long term drift | None |
Documents
FAQ
Q: Reference temperature? A: 0 °C.
Q: Ambient? A: About 5 to 40 °C.
Q: What should I send for a quote? A: Model/channels, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Type | Automatic ice-point thermocouple cold-junction reference (K140/K150/K170 family) |
| Reference Temperature | 0 C |
| Ambient Operating Range | 5 to 40 C |
| Long Term Drift | None |
| Stability K140 | 0.01 C typical / 0.025 C guaranteed |
| Total Instrument Error K140 | 0.02 C typical / 0.05 C max |
| Channels | K140: 4 wells; K150: up to 8; K170: up to 75 |
| Power | 115 VAC 60 Hz or 230 VAC 50 Hz |
| Dimensions K140 | 6.4 in W x 13.5 in D x 10.6 in H (162 x 343 x 270 mm) |
| Thermocouple Types K150 | Matching-material posts for T, J, K, B, E, N, R, S class applications |
| Document | Kaye Ice Point Reference datasheet 240909-AAS-DSK-11001-A |
