Kaye

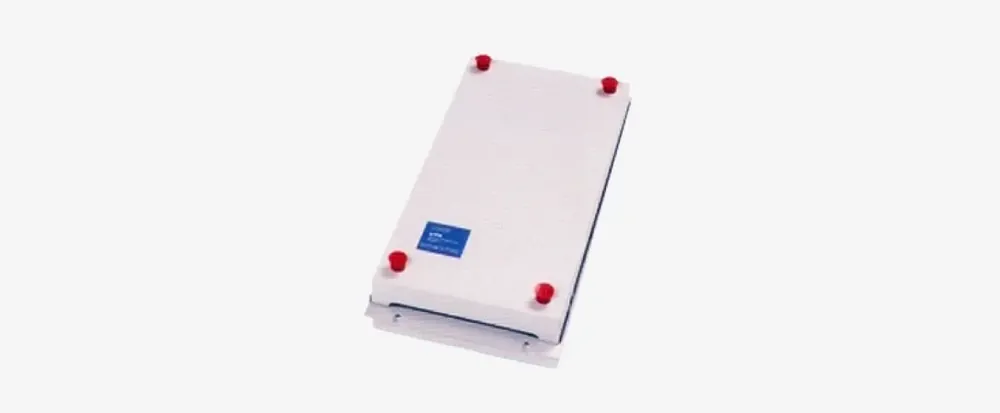

Kaye Uniform Temperature Reference (UTR)
Quote on request
No online payment · add lines to RFQ BOM
UTR: TC cold-junction plate; to 48/32 ch; <0.07 °C typical uniformity. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Type
Passive uniform temperature reference for thermocouple cold junctions (UTR)
Channels
Up to 48 unshielded or 32 shielded channels per plate
Capacity
Two-plate configurations up to 96/64 channels class
Uniformity
<0.07 °C typical; ±0.1 °C steady-state class
Ambient
−40 to 80 °C operating class
Reference
NIST-traceable RTD-100 or RTD-20 reference sensor
Fits multi-channel thermocouple cold-junction uniformity where you need a Kaye UTR—passive uniform temperature reference plates with up to 48 unshielded or 32 shielded channels per plate and typical uniformity better than 0.07 °C.
Key advantages
- Channels — Up to 48 unshielded or 32 shielded per plate
- Capacity — Two-plate configs up to 96/64 channel class
- Uniformity — <0.07 °C typical; ±0.1 °C steady-state class
- Type — Passive UTR cold-junction plate
- Use — Multi-channel TC validation panels
Typical applications
- Pharma mapping TC panels.
- Autoclave multi-TC setups.
- Lab multi-channel TC referencing.
Selection guide
- Shielded vs unshielded
- One vs two plates
- TC type plugs
Common mistakes
- Mixing TC types without accounting.
- Expecting active ice-point.
- Ignoring steady-state settle time.
When to RFQ / what to tell us
- Channel count, shielding.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 39565 |
| Brand | Kaye |
| Model | Uniform Temperature Reference (UTR) |
| Product type | Temperature Reference |
| Type | Passive uniform temperature reference for thermocouple cold junctions (UTR) |
| Channels | Up to 48 unshielded or 32 shielded channels per plate |
| Capacity | Two-plate configurations up to 96/64 channels class |
| Uniformity | <0.07 °C typical; ±0.1 °C steady-state class |
Documents
FAQ
Q: Channels per plate? A: Up to 48 unshielded or 32 shielded.
Q: Uniformity? A: <0.07 °C typical.
Q: What should I send for a quote? A: Channels/config, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Type | Passive uniform temperature reference for thermocouple cold junctions (UTR) |
| Channels | Up to 48 unshielded or 32 shielded channels per plate |
| Capacity | Two-plate configurations up to 96/64 channels class |
| Uniformity | <0.07 °C typical; ±0.1 °C steady-state class |
| Ambient | −40 to 80 °C operating class |
| Reference | NIST-traceable RTD-100 or RTD-20 reference sensor |
| Construction | Rugged industrial / engine-test environment plate |
| Use | Highest-accuracy industrial thermocouple measurements |
| Family | Kaye UTR / Ice Point reference family |
| Document | Kaye IcePoint and UTR data sheet |
