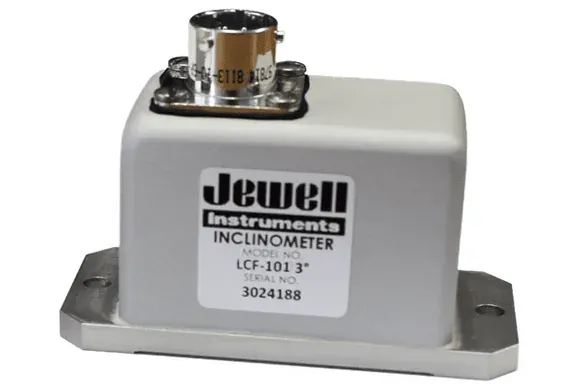

Jewell Instruments LCF-100 Series Inclinometer
Quote on request
No online payment · add lines to RFQ BOM
LCF-100: ±1–90°; ±5 V; 1 µrad; 0.02–0.05% FRO; ±12–18 V. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
±1.0° to ±90.0° full-scale input ranges (LCF-100/101 family)
Accuracy
Nonlinearity 0.02–0.05% FRO (range-dependent); resolution/threshold 1 µrad
Output
±5 VDC FRO; pin terminals (LCF-100) or 6-pin connector (LCF-101)
Supply
±12 to ±18 VDC; input current 15 mA max
Housing
Anodized aluminum (heavy construction)
Protection
Epoxy sealed (per OEM datasheet; not IP-rated)
Fits high-accuracy single-axis tilt where you need a Jewell LCF-100/101—full-scale ranges ±1° to ±90°, ±5 VDC FRO, 1 µrad resolution/threshold, and nonlinearity about 0.02–0.05% FRO.
Key advantages
- Ranges — ±1.0° to ±90.0°
- Output — ±5 VDC FRO; pins (LCF-100) or 6-pin (LCF-101)
- Accuracy — Nonlinearity 0.02–0.05% FRO; 1 µrad resolution
- Power — ±12 to ±18 VDC; ≤15 mA
- Platform — LCF-100/101 family
Typical applications
- Precision platform leveling.
- Weapons / antenna leveling.
- Metrology tilt references.
Selection guide
- LCF-100 vs LCF-101 connector
- Full-scale range
- Cable harness
Common mistakes
- Wrong connector variant.
- Supply outside ±12–18 V.
- Ignoring nonlinearity vs range.
When to RFQ / what to tell us
- Range, connector.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 39431 |
| Brand | Jewell Instruments |
| Model | LCF-100 Series |
| Product type | Inclinometer |
| Measuring range | ±1.0° to ±90.0° full-scale input ranges (LCF-100/101 family) |
| Accuracy | Nonlinearity 0.02–0.05% FRO (range-dependent); resolution/threshold 1 µrad |
| Output signal | ±5 VDC FRO; pin terminals (LCF-100) or 6-pin connector (LCF-101) |
| Supply voltage | ±12 to ±18 VDC; input current 15 mA max |
Documents
FAQ
Q: Output? A: ±5 VDC full-range.
Q: Resolution? A: 1 µrad.
Q: What should I send for a quote? A: Range/connector, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | ±1.0° to ±90.0° full-scale input ranges (LCF-100/101 family) |
| Accuracy | Nonlinearity 0.02–0.05% FRO (range-dependent); resolution/threshold 1 µrad |
| Output | ±5 VDC FRO; pin terminals (LCF-100) or 6-pin connector (LCF-101) |
| Supply | ±12 to ±18 VDC; input current 15 mA max |
| Housing | Anodized aluminum (heavy construction) |
| Protection | Epoxy sealed (per OEM datasheet; not IP-rated) |
| Ambient temperature | Operating −40 to +80 °C; storage −40 to +90 °C |
| Approvals | RoHS-compliant version available |
| Sensor type | Fluid-damped flexure-suspension force-balanced (servo) single-axis inclinometer |
| Notes | OEM Jewell LCF-100/101 datasheet + product page. No Instrumart. |
| Bandwidth | 3–30 Hz (−3 dB), range-dependent |
| Shock | 1000 g, 1 ms, ½ sine |
| Vibration | 20 grms |
| Axes | 1 |
