Jewell Instruments

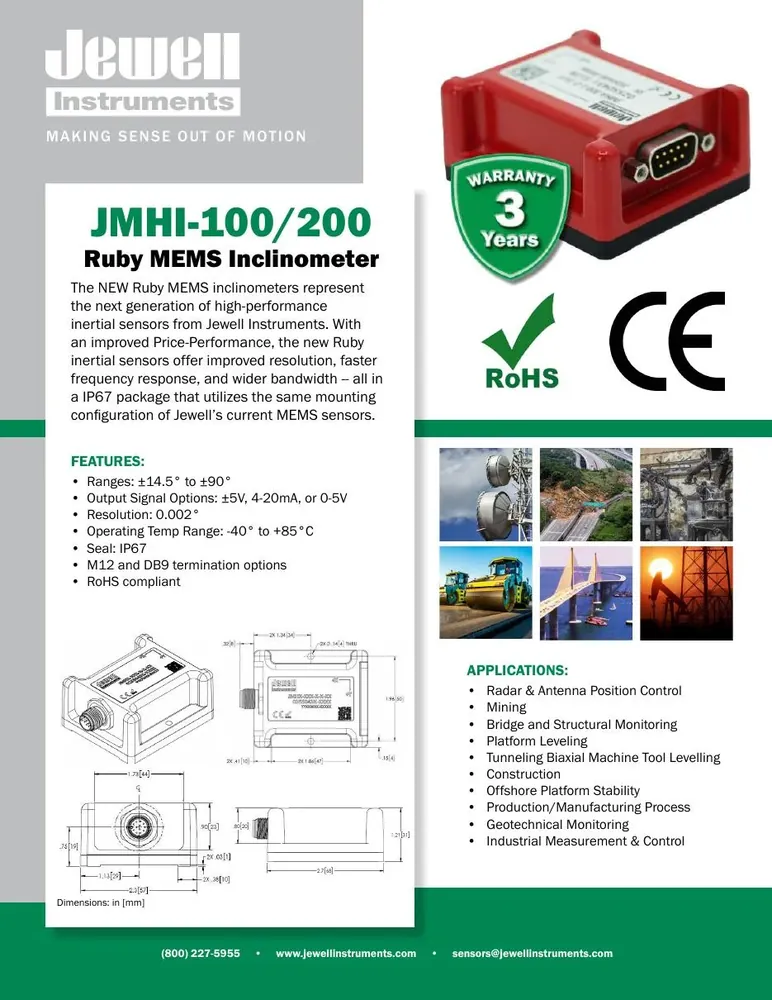

Jewell Instruments JMHI-100/200 Ruby MEMS Inclinometer
Quote on request
No online payment · add lines to RFQ BOM
Jewell JMHI Ruby MEMS: ±14.5°…±90°; ±5 V/0–5 V/4–20 mA; 1- or 2-axis. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
±14.5° / ±30° / ±60° / ±90° full-scale input ranges (JMHI-100/200 family)
Accuracy
Nonlinearity 0.06% FRO max; nonrepeatability/hysteresis 0.004° max; resolution 0.002° max (datasheet) / 0.001° (product page table)
Output
±5 VDC (D), 0–5 V (S), or 4–20 mA (L); DB9 or M12 connectors
Supply
12 to 18 VDC; input current 22 mA max
Housing
IP67 sealed housing; same mounting footprint as prior Jewell MEMS
Protection
IP67 (IEC 529)
Fits precision inclination sensing where you need a Jewell Instruments JMHI-100/200 Ruby MEMS. Analog inclinometer with full-scale ranges ±14.5° / ±30° / ±60° / ±90°, nonlinearity 0.06% FRO max, outputs ±5 VDC / 0–5 V / 4–20 mA, supply 12–18 VDC, in 1-axis (JMHI-100) or 2-axis (JMHI-200) versions with DB9 or M12 connectors.
Key advantages
- Ranges — ±14.5° to ±90°
- Axes — 1-axis or 2-axis
- Outputs — ±5 V / 0–5 V / 4–20 mA
- Nonlinearity — 0.06% FRO max
- Supply — 12–18 VDC
Typical applications
- Platform leveling.
- Structural tilt.
- OEM inclination feedback.
Selection guide
- Range / axes
- Output type
- Connector
Common mistakes
- Wrong range saturation.
- Supply outside 12–18 V.
- Axis orientation errors.
When to RFQ / what to tell us
- Range/axes/output.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 582264 |
| Brand | Jewell Instruments |
| Model | JMHI-100/200 Ruby MEMS |
| Product type | Inclinometer |
| Measuring range | ±14.5° / ±30° / ±60° / ±90° full-scale input ranges (JMHI-100/200 family) |
| Accuracy | Nonlinearity 0.06% FRO max; nonrepeatability/hysteresis 0.004° max; resolution 0.002° max (datasheet) / 0.001° (product page data) |
| Output signal | ±5 VDC (D), 0–5 V (S), or 4–20 mA (L); DB9 or M12 connectors |
| Supply voltage | 12 to 18 VDC; input current 22 mA max |
| Sensor type | Ruby MEMS analog inclinometer; 1-axis (JMHI-100) or 2-axis (JMHI-200) |
Documents
FAQ
Q: Axes? A: JMHI-100 1-axis; JMHI-200 2-axis.
Q: Supply? A: 12–18 VDC.
Q: What should I send for a quote? A: Range/axes/output, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | ±14.5° / ±30° / ±60° / ±90° full-scale input ranges (JMHI-100/200 family) |
| Accuracy | Nonlinearity 0.06% FRO max; nonrepeatability/hysteresis 0.004° max; resolution 0.002° max (datasheet) / 0.001° (product page table) |
| Output | ±5 VDC (D), 0–5 V (S), or 4–20 mA (L); DB9 or M12 connectors |
| Supply | 12 to 18 VDC; input current 22 mA max |
| Housing | IP67 sealed housing; same mounting footprint as prior Jewell MEMS |
| Protection | IP67 (IEC 529) |
| Ambient temperature | Operating −40 to +85 °C; storage −40 to +95 °C |
| Approvals | RoHS compliant |
| Sensor type | Ruby MEMS analog inclinometer; 1-axis (JMHI-100) or 2-axis (JMHI-200) |
| Notes | Specs from Jewell Ruby-JMHI.pdf + product page. Outline OD-02550431 DB9/M12. |
| Bandwidth | 5 Hz (−3 dB) |
| Shock | 180 g, 0.011 s, ½ sine |
| Vibration | 20 grms 5 Hz to 2 kHz |
| Weight | 140 g enclosure |
| Axes | 1 or 2 |
