Extech
Extech CB10 Circuit Breaker Finder
Quote on request
No online payment · add lines to RFQ BOM
Breaker/fuse finder; wiring test; GFCI trip; 90–120 VAC. RFQ + selection help.

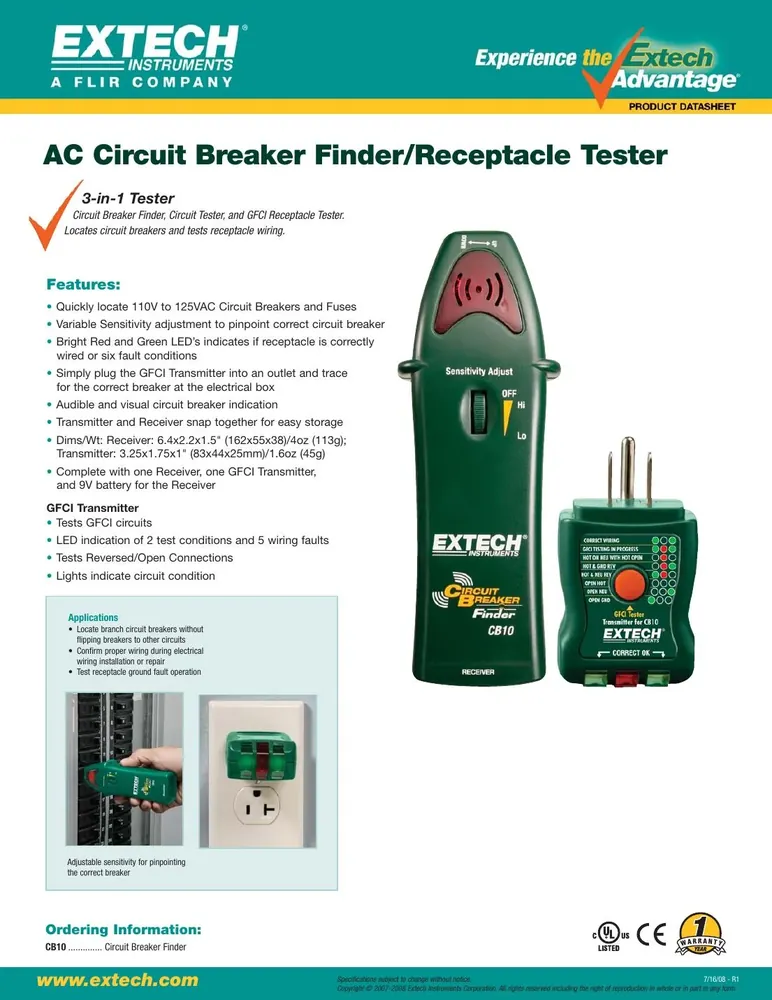

Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Supply
9 V battery (receiver); transmitter line-powered from receptacle
Ambient temperature
Operating 5–40 °C (41–104 °F); storage −20–60 °C
Approvals
UL; CE
Operating Voltage
90–120 V AC (UM); locates 110–125 VAC breakers/fuses (DS)
Operating Frequency
47–63 Hz
Functions
Breaker/fuse locate; receptacle wiring test (correct + 6 fault conditions); GFCI trip test
Fits locating breakers and checking receptacle wiring where you need an Extech CB10 with variable sensitivity, GFCI trip test, and indication of correct wiring plus six fault conditions.
Key advantages
- Locate — Finds 110–125 VAC breakers/fuses (90–120 V AC operating)
- Wiring test — Correct wiring + six fault conditions via red/green LEDs
- GFCI — GFCI trip test function
- Sensitivity — Variable adjustment to pinpoint the correct breaker
- Form — Snap-together receiver + line-powered transmitter; UL/CE
Typical applications
- Residential/commercial breaker identification.
- Receptacle wiring verification.
- GFCI functional checks.
Selection guide
- Voltage — 90–120 V AC / 47–63 Hz
- GFCI test — Needed yes/no
- Sensitivity — Pinpoint crowded panels
- Batteries — 9 V receiver; transmitter line-powered
Common mistakes
- Using on 208/240 V or DC panels outside rating.
- Ignoring wiring-fault LED meanings.
- Not reducing sensitivity to isolate adjacent breakers.
When to RFQ / what to tell us
- Accessories; quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 24612 |
| Brand | Extech |
| Model | CB10 |
| Product type | Circuit Breaker Finder |
| Operating voltage | 90–120 V AC (UM); locates 110–125 VAC breakers/fuses (DS) |
| Frequency | 47–63 Hz |
| Functions | Breaker/fuse locate; receptacle wiring test (correct + 6 fault conditions); GFCI trip test |
| Indication | Audible and visual breaker indication; bright red/green LEDs for wiring status |
| Sensitivity | Variable sensitivity adjustment to pinpoint correct breaker |
| Supply | 9 V battery (receiver); transmitter line-powered from receptacle |
| Dimensions | Receiver 6.4×2.2×1.5 in (162×55×38 mm); transmitter 3.25×1.75×1 in (83×44×25 mm); assembled 8.5×2.2×1.5 in (215×56×38 mm) per UM |
| Weight | Receiver ~4 oz (113 g); transmitter ~1.6 oz (45 g); total ~5.9 oz (167 g) per UM |
| Ambient | Operating 5–40 °C (41–104 °F); storage −20–60 °C |
| Approvals | UL; CE |
| Form factor | Handheld snap-together receiver + GFCI transmitter |
Documents
FAQ
Q: Operating voltage? A: 90–120 V AC; locates 110–125 VAC breakers/fuses.
Q: GFCI test? A: Yes — includes GFCI trip test.
Q: What should I send for a quote? A: Quantity and ship-to.
