Extech

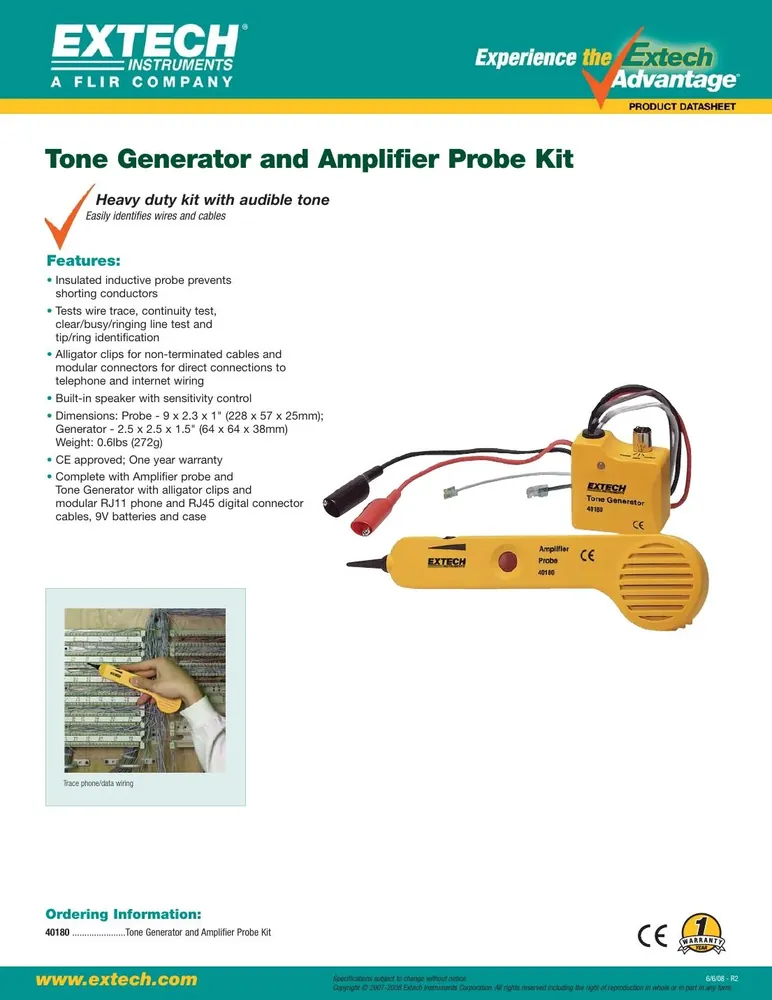

Extech 40180 Tone Generator and Amplifier Probe Kit
Quote on request
No online payment · add lines to RFQ BOM
Tone/probe kit; wire trace; continuity; RJ11/RJ45; tip/ring ID. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Supply
2 × 9 V batteries (generator and probe, one each)
Ambient temperature
Operating 0–40 °C, ≤80% RH; storage −10–50 °C, ≤80% RH
Approvals
CE
Tone Output
1 kHz (±15%), square wave ~4.3 Vrms (10.2 V p-p approx.); continuous or wobble
Functions
Wire/cable tracing; continuity (~10 kΩ extinguish); tip/ring ID; clear/busy/ringing line test
Probe
Insulated inductive probe tip; built-in speaker with sensitivity control; headphone jack
Fits cable tracing and pair identification where you need an Extech 40180 tone generator with amplifier probe, continuity check, tip/ring ID, and RJ11/RJ45 connectors.
Key advantages
- Tone — 1 kHz (±15%) square wave ~4.3 Vrms; continuous or wobble
- Functions — Wire/cable tracing; continuity (~10 kΩ extinguish); tip/ring ID; clear/busy/ringing line test
- Probe — Insulated inductive tip; speaker with sensitivity; headphone jack
- Connections — Alligator clips; modular RJ11 and RJ45
- Protection — Tone generator protected for voltages <100 VDC; CE
Typical applications
- Network and telecom cable tracing.
- Continuity and tip/ring identification.
- Clear/busy/ringing line status checks.
Selection guide
- Connectors — Clips vs RJ11/RJ45
- Headphone — Noisy environments
- Batteries — 2× 9 V (generator + probe)
- Voltage caution — <100 VDC protection class
Common mistakes
- Connecting to live high-voltage circuits beyond protection.
- Tracing without reducing probe sensitivity in noisy bundles.
- Ignoring line-status LEDs before tone inject.
When to RFQ / what to tell us
- Kit/case; quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 25377 |
| Brand | Extech |
| Model | 40180 |
| Product type | Tone Generator / Probe |
| Tone output | 1 kHz (±15%), square wave ~4.3 Vrms (10.2 V p-p approx.); continuous or wobble |
| Functions | Wire/cable tracing; continuity (~10 kΩ extinguish); tip/ring ID; clear/busy/ringing line test |
| Probe | Insulated inductive probe tip; built-in speaker with sensitivity control; headphone jack |
| Connections | Alligator clips; modular RJ11 and RJ45 connectors |
| Overvoltage protection | Tone generator protected for voltages <100 VDC |
| Supply | 2 × 9 V batteries (generator and probe, one each) |
| Ambient | Operating 0–40 °C, ≤80% RH; storage −10–50 °C, ≤80% RH |
| Dimensions | Probe 9×2.25×1 in (228×57×25.4 mm); generator 2.5×2.5×1.5 in (63.5×63.5×38.1 mm) |
| Weight | 0.6 lb (272 g) |
| Approvals | CE |
| Form factor | Handheld tone generator + amplifier probe kit with case |
Documents
FAQ
Q: Connectors? A: Alligator clips plus modular RJ11 and RJ45.
Q: Continuity? A: Yes — approximately 10 kΩ extinguish threshold.
Q: What should I send for a quote? A: Quantity and ship-to.
Links
| Parameter | Value |
|---|---|
| Supply | 2 × 9 V batteries (generator and probe, one each) |
| Ambient temperature | Operating 0–40 °C, ≤80% RH; storage −10–50 °C, ≤80% RH |
| Approvals | CE |
| Tone Output | 1 kHz (±15%), square wave ~4.3 Vrms (10.2 V p-p approx.); continuous or wobble |
| Functions | Wire/cable tracing; continuity (~10 kΩ extinguish); tip/ring ID; clear/busy/ringing line test |
| Probe | Insulated inductive probe tip; built-in speaker with sensitivity control; headphone jack |
| Connections | Alligator clips; modular RJ11 and RJ45 connectors |
| Overvoltage Protection | Tone generator protected for voltages <100 VDC |
| Dimensions | Probe 9×2.25×1 in (228×57×25.4 mm); generator 2.5×2.5×1.5 in (63.5×63.5×38.1 mm) |
| Weight | 0.6 lb (272 g) |
| Form Factor | Handheld tone generator + amplifier probe kit with case |
