Extech
Extech CT70 AC Circuit Load Tester
Quote on request
No online payment · add lines to RFQ BOM
CT70: 12/15/20 A loads; Vdrop; GFCI 6–9 mA; EPD 30–37 mA. RFQ qty.

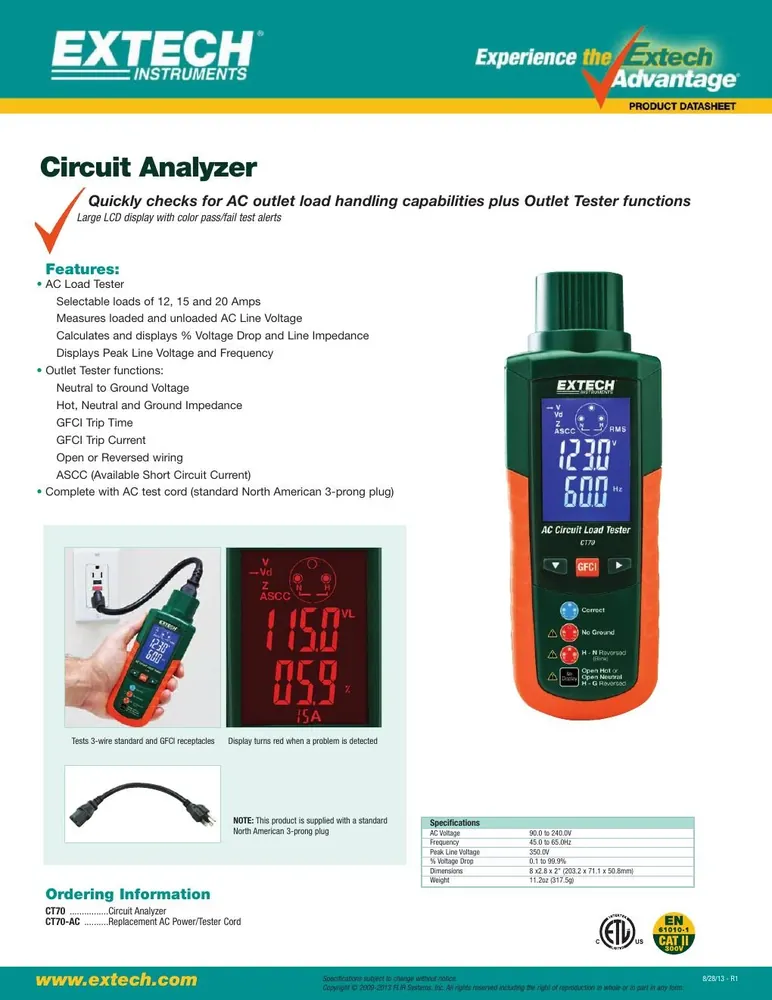

Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Approvals
CE; ETL
Notes
Specs from Extech/FLIR CT70 datasheet and user manual. No Instrumart.
Ac Voltage
90.0 to 240.0 V
Frequency
45.0 to 65.0 Hz
Peak Line Voltage
350.0 V
Voltage Drop
0.1 to 99.9%
Fits outlet and branch-circuit checks where you need an Extech CT70—selectable 12/15/20 A loads, voltage drop and impedance, plus GFCI (6–9 mA) and EPD (30–37 mA) trip tests.
Key advantages
- Loads — Selectable 12 A / 15 A / 20 A
- Line voltage — 100–250 VAC; ±(1.0% + 0.2 V)
- Voltage drop — 0.1–99.9%
- GFCI / EPD — 6–9 mA GFCI; 30–37 mA EPD
- Wiring checks — Hot/neutral/ground impedance; reverse/open wiring
Typical applications
- Receptacle load capability checks.
- GFCI trip verification.
- False-ground / high N-G voltage troubleshooting.
Selection guide
- Spare CT70-AC cord
- Crew quantity
- North American 3-prong use
Common mistakes
- Using on UPS / dimmer / square-wave outputs.
- Back-to-back load tests without cool-down.
- Treating as a clamp meter substitute.
When to RFQ / what to tell us
- Quantity, spare cords.
- Ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 34494 |
| Brand | Extech |
| Model | CT70 |
| Product type | AC Circuit Load Tester |
| Type | GFCI / AC circuit load analyzer (Extech CT70) |
| Loads | Selectable 12 A / 15 A / 20 A load tests |
| Line voltage | 100.0–250.0 VAC; ±(1.0% + 0.2 V) |
| Voltage drop | 0.1–99.9% |
| Frequency | 45.0–65.0 Hz |
| Impedance | Hot 0.00–3.00 Ω class |
| GFCI | GFCI trip 6–9 mA; EPD 30–37 mA |
| Safety | CAT II 300 V class; CE/ETL |
Documents
FAQ
Q: Load steps? A: 12 A, 15 A, and 20 A selectable.
Q: GFCI trip current? A: 6.0–9.0 mA class.
Q: What should I send for a quote? A: Quantity, accessories, ship-to.
Links
| Parameter | Value |
|---|---|
| Approvals | CE; ETL |
| Notes | Specs from Extech/FLIR CT70 datasheet and user manual. No Instrumart. |
| Ac Voltage | 90.0 to 240.0 V |
| Frequency | 45.0 to 65.0 Hz |
| Peak Line Voltage | 350.0 V |
| Voltage Drop | 0.1 to 99.9% |
| Load Currents | Selectable 12 / 15 / 20 A (120 V circuits); 5 / 8 / 10 A (230 V circuits) |
| Functions | Loaded/unloaded voltage; %Vd and line impedance; peak V; N-G voltage; H/N/G impedance; GFCI trip time/current; open/reversed wiring; ASCC |
| Safety Category | CAT II 300 V |
| Dimensions | 8 × 2.8 × 2 in (203.2 × 71.1 × 50.8 mm) |
| Weight | 11.2 oz (317.5 g) |
| Warranty | 2 years |
| Included | AC test cord, standard North American 3-prong plug |
