Emerson

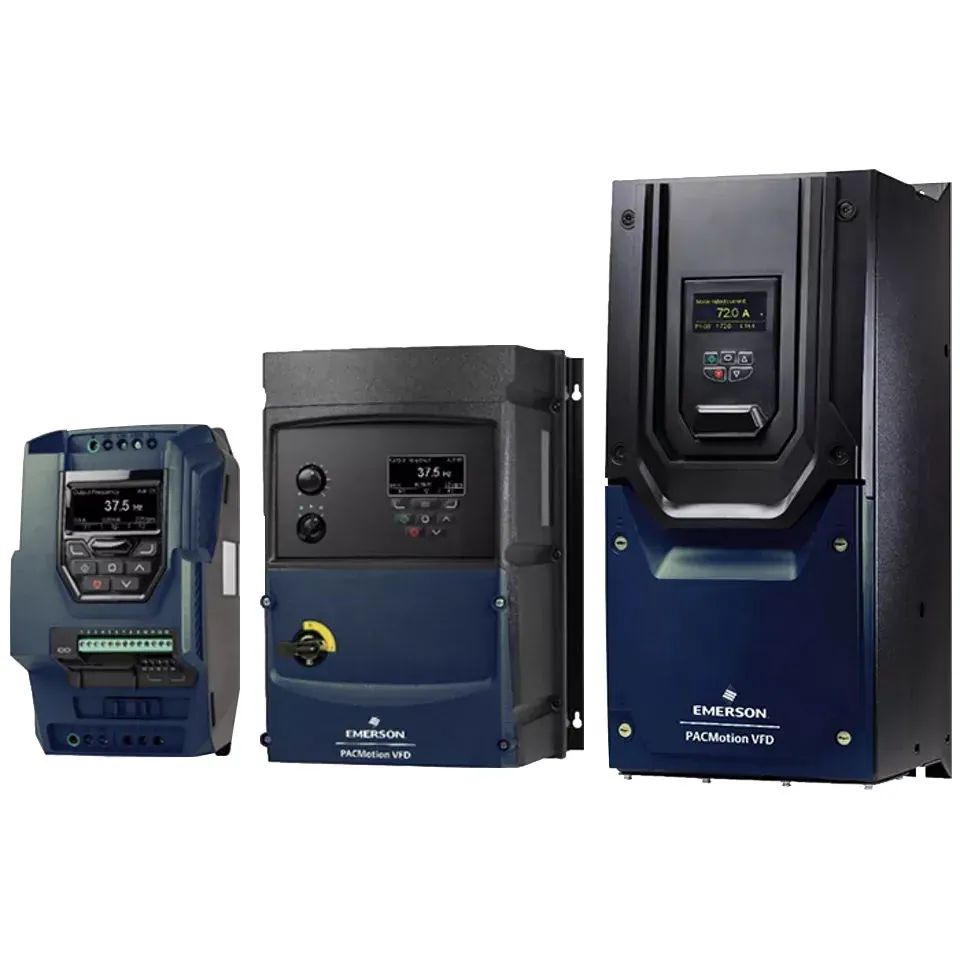

Emerson PACMotion Variable Frequency Drive
Quote on request
No online payment · add lines to RFQ BOM
Emerson PACMotion IC866: 0.75…250 kW; STO; PROFINET; IP20/55/66. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Type
PACSystems PACMotion IC866 series AC variable frequency drive
Power Range
0.75…250 kW (1…350 HP)
Input Voltage
1/3-ph 200–240 VAC; 3-ph 380–480 VAC; 3-ph 500–600 VAC (±10%)
Enclosures
IP20 / IP55 / IP66 (NEMA-12K / NEMA-4X) options; conformally coated electronics
Overload
150% up to 60 s; 200% for 4 s; high starting torque
Motors
Induction, Permanent Magnet AC, Brushless DC, Synchronous Reluctance
Fits machine and process motor control where you need an Emerson PACSystems PACMotion IC866 VFD—0.75…250 kW (1…350 HP) with 150% overload to 60 s, built-in Safe Torque Off, standard PROFINET, and IP20 / IP55 / IP66 enclosure options.
Key advantages
- Power — 0.75…250 kW (1…350 HP)
- Overload — 150% to 60 s; 200% for 4 s
- Motors — Induction, PMAC, BLDC, SynRM
- Safety — Built-in STO
- Comms — Standard PROFINET; optional Modbus TCP
Typical applications
- OEM machine drives.
- Fans / pumps / conveyors.
- PACSystems-integrated motion.
Selection guide
- kW / voltage
- Enclosure IP
- Redundancy card
Common mistakes
- Undersized overload.
- Missing EMC filter.
- Wrong motor type setting.
When to RFQ / what to tell us
- kW/voltage/enclosure.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 45589 |
| Brand | Emerson |
| Model | PACMotion VFD |
| Product type | Variable Frequency Drive |
| Type | PACSystems PACMotion IC866 series AC variable frequency drive |
| Power range | 0.75…250 kW (1…350 HP) |
| Input voltage | 1/3-ph 200–240 VAC; 3-ph 380–480 VAC; 3-ph 500–600 VAC (±10%) |
| Enclosures | IP20 / IP55 / IP66 (NEMA-12K / NEMA-4X) options; conformally coated electronics |
| Overload | 150% up to 60 s; 200% for 4 s; high starting torque |
| Motors | Induction, Permanent Magnet AC, Brushless DC, Synchronous Reluctance |
| Comms | Standard PROFINET; optional Modbus TCP; optional PROFINET System Redundancy card |
| Safety | Built-in Safe Torque Off (STO) |
Documents
FAQ
Q: Power range? A: 0.75…250 kW.
Q: STO? A: Built-in Safe Torque Off.
Q: What should I send for a quote? A: kW/voltage/enclosure, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Type | PACSystems PACMotion IC866 series AC variable frequency drive |
| Power Range | 0.75…250 kW (1…350 HP) |
| Input Voltage | 1/3-ph 200–240 VAC; 3-ph 380–480 VAC; 3-ph 500–600 VAC (±10%) |
| Enclosures | IP20 / IP55 / IP66 (NEMA-12K / NEMA-4X) options; conformally coated electronics |
| Overload | 150% up to 60 s; 200% for 4 s; high starting torque |
| Motors | Induction, Permanent Magnet AC, Brushless DC, Synchronous Reluctance |
| Comms | Standard PROFINET; optional Modbus TCP; optional PROFINET System Redundancy card |
| Safety | Built-in Safe Torque Off (STO) |
| Integration | PAC Machine Edition auto-tune; PACSystems RX3i / Edge Controllers |
| Ambient | −10…40 °C IP55/IP66; −10…50 °C IP20; storage −40…60 °C |
| Document | PACMotion VFD Product Datasheet + PACMotion VFD Overview brochure (GFK-3111 user guide not bulk-fetched this pass) |
| Model Codes | IC866-<kW>-<V><EMC><ph>-<IP><opt>; example IC866-0015-4A3-60 |
