Fuji Electric

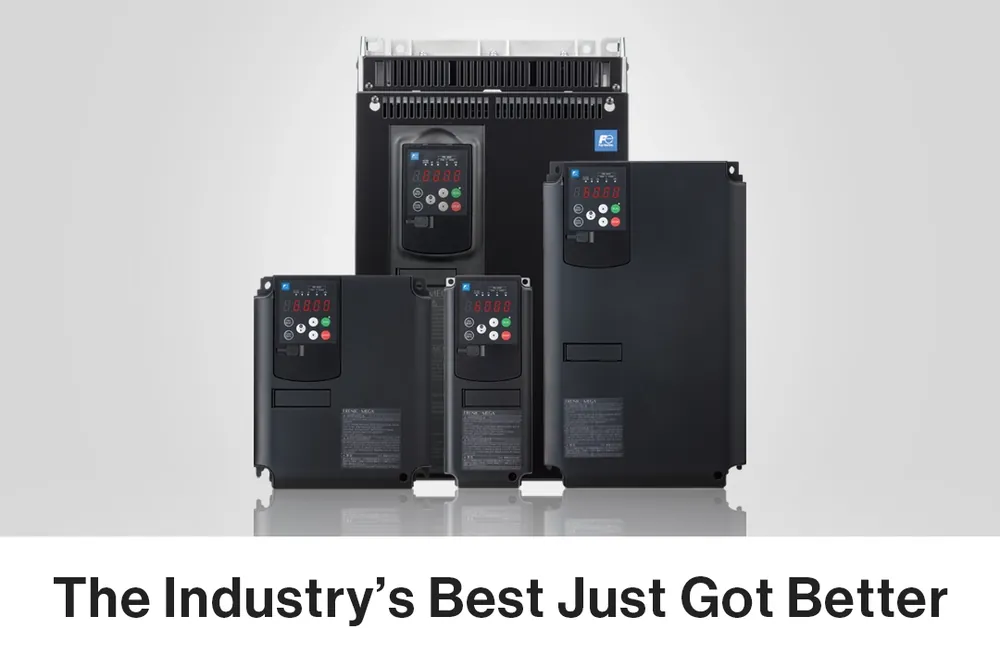

Fuji Electric FRENIC-Mega G2 AC Drive
Quote on request
No online payment · add lines to RFQ BOM
Fuji FRENIC-Mega G2: vector / V/f; 200–240 / 380–480 V; HHD 150%/1 min. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Ambient temperature
−10 to +55 °C (derating above +50 °C per catalog)
Type
High-performance multifunctional AC drive inverter (Fuji Electric FRENIC-MEGA G2)
Control Modes
Vector; sensorless vector; dynamic torque vector; V/f
Input Power
Three-phase 200–240 V and 380–480 V class (50/60 Hz; series-dependent)
Capacity
From 0.4 kW class through high-power frames (HHD/HND ratings; see catalog tables)
Overload
HHD 150% 1 min / 200% 3 s; HND 120% 1 min
Fits high-performance AC motor control where you need a Fuji Electric FRENIC-Mega G2. Multifunctional inverter with vector, sensorless vector, dynamic torque vector and V/f modes, three-phase 200–240 V and 380–480 V class (50/60 Hz), capacities from 0.4 kW class through high-power frames, overload HHD 150% 1 min / 200% 3 s and HND 120% 1 min.
Key advantages
- Modes — Vector / sensorless / DT vector / V/f
- Voltage — 200–240 / 380–480 V class
- Capacity — From 0.4 kW class
- HHD overload — 150% 1 min / 200% 3 s
- HND — 120% 1 min
Typical applications
- Industrial AC drives.
- High-performance motor control.
- Heavy / normal duty frames.
Selection guide
- Voltage class
- HHD vs HND
- kW / frame
Common mistakes
- Wrong duty rating.
- Voltage mismatch.
- Ignoring overload envelope.
When to RFQ / what to tell us
- kW/voltage/options.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 813550 |
| Brand | Fuji Electric |
| Model | FRENIC-Mega (G2) |
| Product type | AC Drive |
| Type | High-performance multifunctional AC drive inverter (Fuji Electric FRENIC-MEGA G2) |
| Control modes | Vector; sensorless vector; dynamic torque vector; V/f |
| Input power | Three-phase 200–240 V and 380–480 V class (50/60 Hz; series-dependent) |
| Capacity | From 0.4 kW class through high-power frames (HHD/HND ratings |
| Overload | HHD 150% 1 min / 200% 3 s; HND 120% 1 min |
Documents
FAQ
Q: Modes? A: Vector, sensorless, DT vector, V/f.
Q: HHD overload? A: 150% 1 min / 200% 3 s.
Q: What should I send for a quote? A: kW/voltage/options, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Ambient temperature | −10 to +55 °C (derating above +50 °C per catalog) |
| Type | High-performance multifunctional AC drive inverter (Fuji Electric FRENIC-MEGA G2) |
| Control Modes | Vector; sensorless vector; dynamic torque vector; V/f |
| Input Power | Three-phase 200–240 V and 380–480 V class (50/60 Hz; series-dependent) |
| Capacity | From 0.4 kW class through high-power frames (HHD/HND ratings; see catalog tables) |
| Overload | HHD 150% 1 min / 200% 3 s; HND 120% 1 min |
| Protective Construction | IP20 enclosed (smaller frames); IP00 open type on larger frames |
| Safety Environment | Globally compliant lineup; preventive/predictive maintenance features |
| Document | FRENIC-MEGA (G2) Catalog 24A1-E-0166c |
| Model Code | FRN□□□□G2S-2G / FRN□□□□G2S-4G (capacity/voltage coded) |
