Extech
Extech UV510 UVA Light Meter
Quote on request
No online payment · add lines to RFQ BOM
Extech UV510: UVA 320–390 nm; 0–20 mW/cm²; ±4% FS; cosine corrected. RFQ.

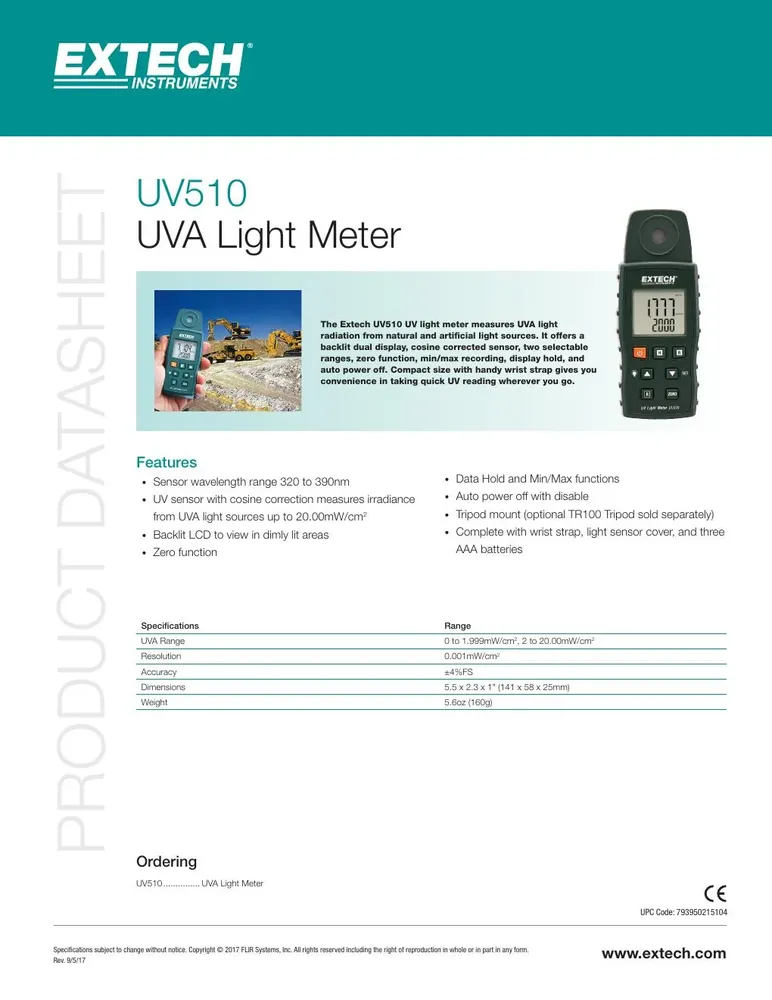

Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
±4% FS
Sensor Wavelength
320 to 390 nm (UVA)
Uva Range
0 to 1.999 mW/cm²; 2 to 20.00 mW/cm²
Resolution
0.001 mW/cm²
Cosine Corrected
Yes
Functions
Zero; Data Hold; Min/Max; APO with disable; backlit dual display
Fits UVA irradiance checks where you need an Extech UV510—handheld UVA light meter covering 320 to 390 nm with ranges 0–1.999 and 2–20.00 mW/cm², 0.001 mW/cm² resolution, ±4% FS accuracy, and cosine-corrected response.
Key advantages
- Band — 320 to 390 nm (UVA)
- Ranges — 0–1.999 and 2–20.00 mW/cm²
- Resolution — 0.001 mW/cm²
- Accuracy — ±4% FS
- Functions — Zero, Hold, Min/Max, APO, backlight
Typical applications
- UV curing checks.
- UVA lamp surveys.
- Lab irradiance spot checks.
Selection guide
- Range needed
- Cosine placement
- Battery AAA×3
Common mistakes
- Wrong band vs UVB/UVC.
- Not zeroing.
- Oblique angle without cosine care.
When to RFQ / what to tell us
- Quantity.
- Ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 44807 |
| Brand | Extech |
| Model | UV510 UVA Light Meter |
| Product type | UVA Light Meter |
| Sensor wavelength | 320 to 390 nm (UVA) |
| UVA range | 0 to 1.999 mW/cm²; 2 to 20.00 mW/cm² |
| Resolution | 0.001 mW/cm² |
| Accuracy | ±4% FS |
| Cosine corrected | Yes |
| Functions | Zero; Data Hold; Min/Max; APO with disable; backlit dual display |
| Dimensions | 5.5 × 2.3 × 1 in (141 × 58 × 25 mm) |
| Power | 3 × AAA batteries |
Documents
FAQ
Q: Wavelength? A: 320 to 390 nm UVA.
Q: Accuracy? A: ±4% FS.
Q: What should I send for a quote? A: Quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | ±4% FS |
| Sensor Wavelength | 320 to 390 nm (UVA) |
| Uva Range | 0 to 1.999 mW/cm²; 2 to 20.00 mW/cm² |
| Resolution | 0.001 mW/cm² |
| Cosine Corrected | Yes |
| Functions | Zero; Data Hold; Min/Max; APO with disable; backlit dual display |
| Dimensions | 5.5 × 2.3 × 1 in (141 × 58 × 25 mm) |
| Weight | 5.6 oz (160 g) |
| Power | 3 × AAA batteries |
| Warranty | 2 years (extech.com) |
