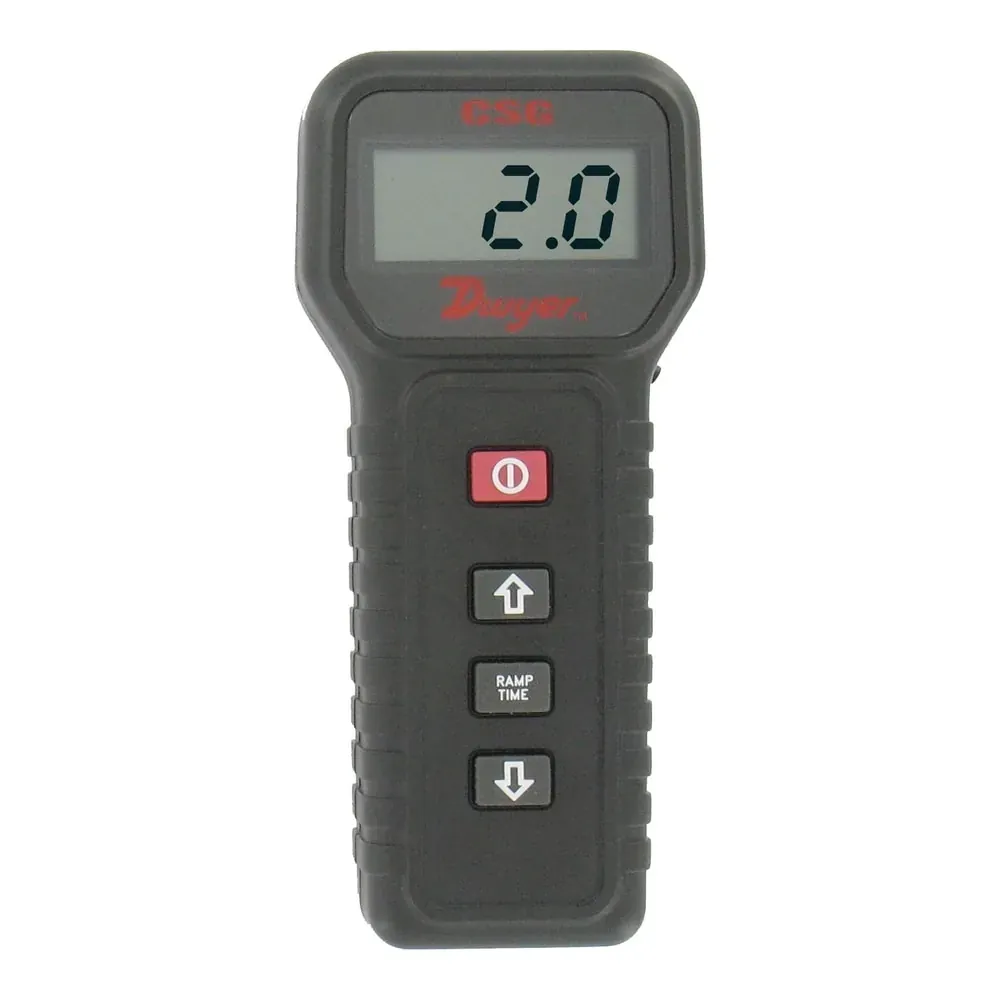

Dwyer CSG Signal Generator
Quote on request
No online payment · add lines to RFQ BOM
Dwyer CSG: 0–20 mA / 1 mA steps; 0–10 V / 1 V; ±0.05. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Output 0–20 mA in 1 mA steps; 0–10 VDC in 1 V steps
Accuracy
±0.05 mA (current), ±0.05 V (voltage) at 25 °C (OEM product/IOM literature)
Output
Sourced mA / V with manual and timed auto ramp (1–20 s steps); overload annunciator
Supply
9 V alkaline (included) or 120 VAC adapter (provided); auto power-off 1–20 min
Electrical connection
6 ft (1.8 m) leads with alligator clips; BNC-style jacks for mA/V/EXT power
Ambient temperature
32–122 °F (0–50 °C)
Fits bench and field loop simulation where you need a Dwyer CSG—signal generator covering 0–20 mA in 1 mA steps and 0–10 V DC in 1 V steps with accuracy ±0.05 mA / ±0.05 V at 25 °C.
Key advantages
- Current — 0–20 mA in 1 mA steps
- Voltage — 0–10 V DC in 1 V steps
- Accuracy — ±0.05 mA; ±0.05 V at 25 °C
- Platform — Dwyer CSG signal generator
- Use — Loop / instrument simulation
Typical applications
- 4–20 mA loop checks.
- PLC input simulation.
- Transmitter bench tests.
Selection guide
- CSG vs ASG
- Step resolution need
- Battery / leads
Common mistakes
- Wrong polarity.
- Overloaded voltage output.
- Confusing with ASG step size.
When to RFQ / what to tell us
- Accessories.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 41349 |
| Brand | Dwyer Instruments |
| Model | Dwyer CSG Signal Generator |
| Product type | Signal Generator |
| Range | 0–20 mA in 1 mA steps; 0–10 V DC in 1 V steps |
| Accuracy | ±0.05 mA (current), ±0.05 V (voltage) at 25 °C |
Documents
FAQ
Q: Current steps? A: 0–20 mA in 1 mA steps.
Q: Accuracy? A: ±0.05 mA / ±0.05 V at 25 °C.
Q: What should I send for a quote? A: Quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Output 0–20 mA in 1 mA steps; 0–10 VDC in 1 V steps |
| Accuracy | ±0.05 mA (current), ±0.05 V (voltage) at 25 °C (OEM product/IOM literature) |
| Output | Sourced mA / V with manual and timed auto ramp (1–20 s steps); overload annunciator |
| Supply | 9 V alkaline (included) or 120 VAC adapter (provided); auto power-off 1–20 min |
| Electrical connection | 6 ft (1.8 m) leads with alligator clips; BNC-style jacks for mA/V/EXT power |
| Ambient temperature | 32–122 °F (0–50 °C) |
| Display | Large backlit LCD numeric + RAMP/OVER LOAD/mA/V annunciators |
| Mounting | Handheld; 5.5×2.5×1.4 in typical |
| Sensor type | Handheld current/voltage signal generator (calibrator source) |
| Notes | Specs from Dwyer CSG catalog datasheet + instruction manual. |
| Impedance | Voltage ≥1000 Ω; current ≤300 Ω |
| Weight | 6 oz (170 g) |
