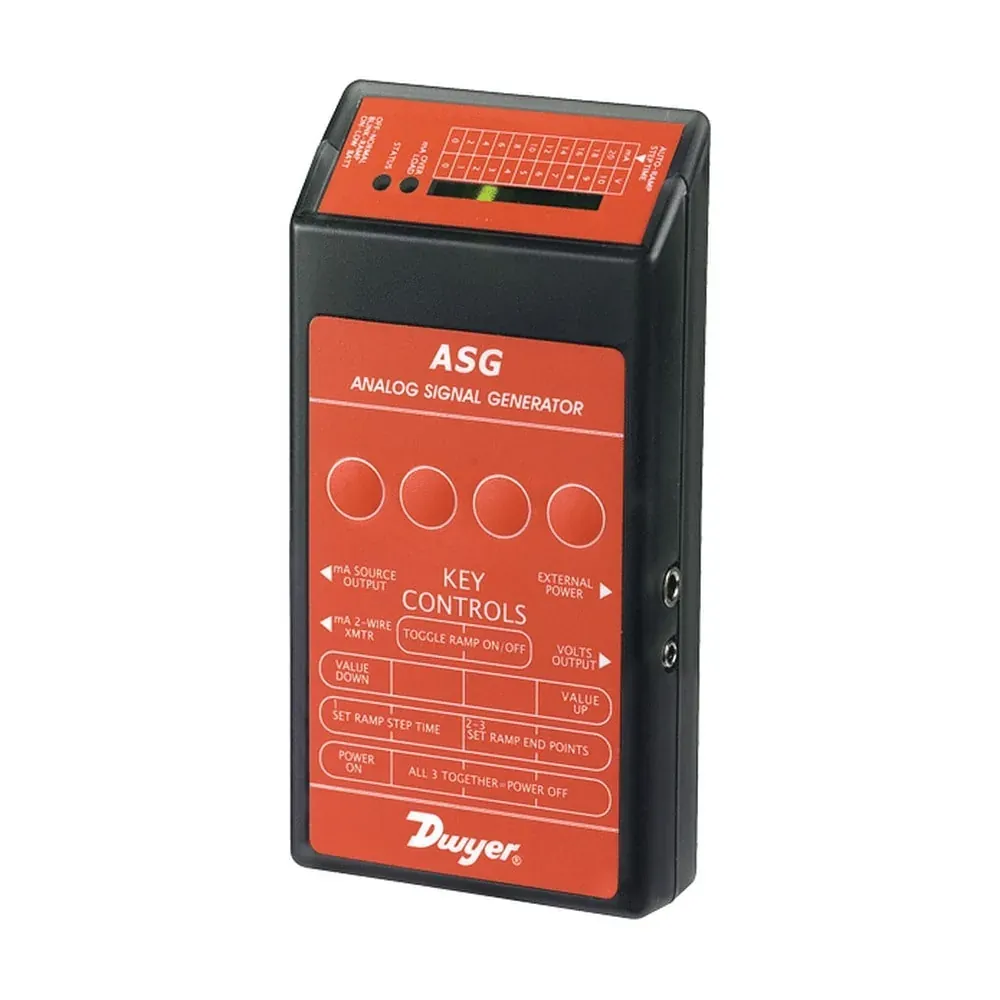

Dwyer ASG Signal Generator
Quote on request
No online payment · add lines to RFQ BOM
Dwyer ASG: 4–20 mA / 2 mA steps; 0–10 V / 1 V. Compact analog sim. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Output 0–10 VDC in 1 V steps; 0–20 mA (catalog) / 4–20 mA class in 2 mA steps per ASG section
Accuracy
±0.5% FS or ±0.1 mA (current), ±0.5% FS or ±0.05 VDC (voltage) at 72 °F (OEM product page)
Output
Static levels or continuous ramp between user min/max; LED bar graph level indication
Supply
9 V alkaline or 120 VAC adapter; auto shutoff 2–20 min (6 min default)
Electrical connection
6 ft leads with alligator clips; separate mA and voltage jacks
Ambient temperature
32–122 °F (0–50 °C)
Fits compact 4–20 mA / 0–10 V simulation where you need a Dwyer ASG—analog signal generator with 4–20 mA in 2 mA steps and 0–10 V DC in 1 V steps for quick instrument and loop checks.
Key advantages
- Current — 4–20 mA in 2 mA steps
- Voltage — 0–10 V DC in 1 V steps
- Form — Compact analog signal generator
- Platform — Dwyer ASG
- Use — Quick loop / instrument simulation
Typical applications
- Quick 4–20 mA checks.
- Panel meter simulation.
- Field instrument functional tests.
Selection guide
- ASG vs CSG
- Step size OK?
- Leads
Common mistakes
- Needing 1 mA steps (use CSG).
- Wrong polarity.
- Expecting source into high loads beyond rating.
When to RFQ / what to tell us
- Accessories.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 41352 |
| Brand | Dwyer Instruments |
| Model | Dwyer ASG Signal Generator |
| Product type | Signal Generator |
| Range | 4–20 mA in 2 mA steps; 0–10 V DC in 1 V steps |
| Extra | Analog signal generator |
Documents
FAQ
Q: Current steps? A: 4–20 mA in 2 mA steps.
Q: vs CSG? A: ASG uses 2 mA steps; CSG offers 1 mA from 0–20 mA.
Q: What should I send for a quote? A: Quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Output 0–10 VDC in 1 V steps; 0–20 mA (catalog) / 4–20 mA class in 2 mA steps per ASG section |
| Accuracy | ±0.5% FS or ±0.1 mA (current), ±0.5% FS or ±0.05 VDC (voltage) at 72 °F (OEM product page) |
| Output | Static levels or continuous ramp between user min/max; LED bar graph level indication |
| Supply | 9 V alkaline or 120 VAC adapter; auto shutoff 2–20 min (6 min default) |
| Electrical connection | 6 ft leads with alligator clips; separate mA and voltage jacks |
| Ambient temperature | 32–122 °F (0–50 °C) |
| Display | LED bar graph (no numeric LCD) |
| Mounting | Handheld pocket size ~4.7×2.4×0.85 in |
| Sensor type | Pocket analog signal generator |
| Notes | ASG catalog section lives on the shared Dwyer CSG/ASG datasheet page (assets.dwyeromega.com/spec/CSG.pdf); dedicated ASG_1.pdf CDN currently mis-serves CSG-only content, so combined OEM sheet + ASG IOM + drawing used. Local datasheet copy stored as dwyer/41352-asg.pdf. |
| Impedance | Voltage ≥1000 Ω; current ≤300 Ω |
| Weight | 3.2 oz without battery |
