Alicat Scientific

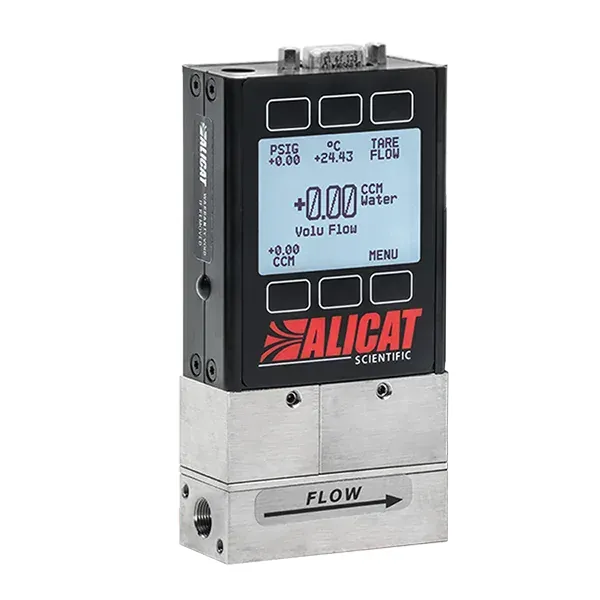

Alicat Scientific L / LC Series Liquid Flow Meters and Controllers
Quote on request
No online payment · add lines to RFQ BOM
Alicat L/LC: liquid meters/controllers; 0.5 CCM–10 LPM; ±2% FS volumetric. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
±2.0% of full scale volumetric (water media at calibration conditions)
Wetted parts
316L/303 stainless with FKM (EPDM/FFKM optional); LCS/LCRS use FFKM
Display
Monochrome LCD or color TFT; volumetric flow, temperature, setpoint (LC), pressure
Flow Range
0.5 CCM–10 LPM full scale (meter and controller families)
Repeatability
±0.2% of full scale
Control Range
LC steady-state control 0.01–100% of full scale
Fits liquid volumetric flow where you need an Alicat Scientific L or LC Series. Liquid meters and controllers spanning 0.5 CCM–10 LPM full scale, accuracy ±2.0% of full scale volumetric (water media at calibration conditions), repeatability ±0.2% FS, LC steady-state control 0.01–100% FS, with meter operating about 100 PSIG sensor FS (damage possible above common-mode/differential limits stated by OEM).
Key advantages
- Range — 0.5 CCM–10 LPM FS
- Accuracy — ±2.0% FS volumetric (water cal)
- Control — LC 0.01–100% FS
- Repeatability — ±0.2% FS
- Families — Meter (L) / controller (LC)
Typical applications
- Lab liquid metering.
- Low-flow liquid control.
- Water-calibrated loops.
Selection guide
- L vs LC
- Full scale
- Fluid compatibility
Common mistakes
- Non-water without correction.
- Overpressure.
- Wrong FS.
When to RFQ / what to tell us
- Family/FS/fluid.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 48593 |
| Brand | Alicat Scientific |
| Model | L / LC Series |
| Product type | Liquid Flow Meter/Controller |
| Flow range | 0.5 CCM–10 LPM full scale (meter and controller families) |
| Accuracy | ±2.0% of full scale volumetric (water media at calibration conditions) |
| Repeatability | ±0.2% of full scale |
| Control range | LC steady-state control 0.01–100% of full scale |
| Operating pressure | Meter operating ~100 PSIG sensor FS; damage possible above 200 PSIG common mode / 75 PSID |
Documents
FAQ
Q: Accuracy? A: ±2.0% FS volumetric (water cal).
Q: Range? A: 0.5 CCM–10 LPM FS.
Q: What should I send for a quote? A: Family/FS/fluid, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | ±2.0% of full scale volumetric (water media at calibration conditions) |
| Wetted parts | 316L/303 stainless with FKM (EPDM/FFKM optional); LCS/LCRS use FFKM |
| Display | Monochrome LCD or color TFT; volumetric flow, temperature, setpoint (LC), pressure |
| Flow Range | 0.5 CCM–10 LPM full scale (meter and controller families) |
| Repeatability | ±0.2% of full scale |
| Control Range | LC steady-state control 0.01–100% of full scale |
| Operating Pressure | Meter operating ~100 PSIG sensor FS; damage possible above 200 PSIG common mode / 75 PSID |
| Operating Temperature | −10–60 °C (medium must remain liquid) |
| Valve Function | LC: normally closed |
| Media | Default ultrapure/RO/DI water; alternate fluids ~0.1–3.0 cP with custom calibration |
| Ingress Protection | IP40 |
| Communications | RS-232/Modbus RTU default; optional industrial protocols |
| Analog Io | 4–20 mA, 0–5 Vdc, 1–5 Vdc, 0–10 Vdc |
| Power Requirements | LC/LCS 12–30 Vdc 250 mA; LCR/LCRS 24 Vdc 600 mA |
| Control Response | LC as fast as 30 ms T63 (user-adjustable) |
