Michell Instruments

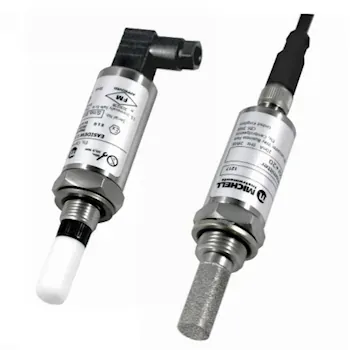

Michell Easidew EA2 Dew Point Transmitter
Quote on request
No online payment · add lines to RFQ BOM
2-wire dew-point TX; −110…+20 °Cdp; ceramic sensor. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
−110 to +20 °C dew point (−166 to +68 °Fdp); also ppmV moisture to 3000 ppmV class
Accuracy
±2 °Cdp (±3.6 °Fdp)
Output
2-wire 4–20 mA loop-powered; dew point or ppmV scaling
Supply
12–28 V DC loop power
Wetted parts
316 stainless steel sensor and sample blocks
Communication
RS485 configuration/diagnostics tool support
Fits industrial dew-point measurement where you need a Michell Easidew EA2 2-wire transmitter with ceramic metal-oxide sensor and −110 to +20 °Cdp class range.
Key advantages
- Range — −110 to +20 °C dew point (−166 to +68 °Fdp); ppmV moisture scaling class
- Accuracy — ±2 °Cdp (±3.6 °Fdp)
- Output — 2-wire 4–20 mA loop-powered; dew point or ppmV
- Sensor — Michell ceramic metal-oxide moisture sensor; 316 SS wetted parts
- Pressure — High-performance barrier to 525 bar class
Typical applications
- Compressed air and dryer dew-point monitoring.
- Glove-box and process gas moisture with KF40 or threaded connections.
- Loop-powered moisture points into PLC/DCS.
Selection guide
- Connection — 5/8" UNF, 3/4" UNF, G1/2", or KF40
- Electrical — MiniDIN 43650 vs M12
- Scaling — Dew point vs ppmV on 4–20 mA
- I.S. — Easidew I.S. options (ATEX/IECEx/cQPSus/UKCA) if required
Common mistakes
- Mounting in wet liquid service — Easidew is for gases/moisture in gas.
- Ignoring sample pressure when converting to ppmV.
- Skipping I.S. version in classified areas.
When to RFQ / what to tell us
- Dew-point span, gas, and pressure.
- Process/electrical connection; I.S. yes/no.
- Quantity and ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 1418 |
| Brand | Michell Instruments |
| Model | Easidew EA2 Dew Point Transmitter |
| Product type | Dew Point Transmitter |
| Measuring range | −110 to +20 °C dew point (−166 to +68 °Fdp); also ppmV moisture to 3000 ppmV class |
| Accuracy | ±2 °Cdp (±3.6 °Fdp) |
| Output | 2-wire 4–20 mA loop-powered; dew point or ppmV scaling |
| Supply | 12–28 V DC loop power |
| Sensor technology | Michell ceramic metal-oxide moisture sensor |
| Process connections | 5/8" UNF, 3/4" UNF, G1/2"; KF40 glove-box flange |
| Electrical connectors | MiniDIN 43650 or M12 |
| Wetted materials | 316 stainless steel sensor and sample blocks |
| Process pressure | High-performance barrier to 525 bar |
Documents
- Michell / PST Easidew documentation — request current OEM PDF on RFQ — request current OEM PDF on RFQ
FAQ
Q: What dew-point range is specified? A: −110 to +20 °C dew point class on the Easidew transmitter family.
Q: How is it powered? A: 2-wire 4–20 mA loop, 12–28 V DC.
Q: What should I send for a quote? A: Span/gas/pressure, connections, I.S., quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | −110 to +20 °C dew point (−166 to +68 °Fdp); also ppmV moisture to 3000 ppmV class |
| Accuracy | ±2 °Cdp (±3.6 °Fdp) |
| Output | 2-wire 4–20 mA loop-powered; dew point or ppmV scaling |
| Supply | 12–28 V DC loop power |
| Wetted parts | 316 stainless steel sensor and sample blocks |
| Communication | RS485 configuration/diagnostics tool support |
| Approvals | CE; ATEX (I.S. option); IECEx (I.S. option) |
| Notes | Specs from Michell/PST Easidew Transmitters datasheet 97554 + 2-wire manual v3.3. EA2 is the 2-wire industrial transmitter family. |
| Sensor Technology | Michell ceramic metal-oxide moisture sensor |
| Process Connections | 5/8" UNF, 3/4" UNF, G1/2"; KF40 glove-box flange |
| Electrical Connectors | MiniDIN 43650 or M12 |
| Process Pressure | High-performance barrier to 525 bar |
| Calibration | 13-point traceable calibration certificate; sensor exchange/recalibration program |
| Approvals Is | Easidew I.S.: IECEx, cQPSus, ATEX, UKCA options |
